This audio system for large restaurants, fine dining establishments, sports bars, bar and grills, and other hospitality venues features SoundTube RS500i pendant speakers and RS1001i-II-T pendant subwoofers, delivering powerful, high-quality sound with full-range coverage for open-architecture, high-ceiling designs. Both the speakers and subwoofers are weatherized, making them ideal for large indoor areas as well as outdoor patios or entryways. The included subwoofers provide enhanced low-end, offering the deep bass response needed in a premium sports bar sound system.
The restaurant pendant speakers are powered by dual Pure Resonance Audio DA2500 Class-D power amplifiers, providing high-performance amplification for demanding audio environments. Driving the system’s superior features is the AtlasIED AZM4 audio digital signal processor, which offers precise volume and source control across four separate zones, paired with a wall control panel that simplifies daily use by allowing staff to easily manage this sound system with intuitive, localized control.
A remote XLR wall input is also included for connecting a microphone or external audio source at a remote location, giving staff, guests, DJs, or musicians the flexibility to host live performances, speeches, or private events. Designed for both performance and aesthetics, this premium 4-zone restaurant audio system blends into open-ceiling interiors and enhances modern, upscale hospitality spaces with superior audio and user-friendly functionality.
The SoundTube RS500i is a 5.25" 75W weatherized open-ceiling restaurant pendant speaker designed for both indoor and outdoor use. Featuring a polypropylene woofer and 1” titanium tweeter, it delivers clear background to mid-level music with wide 105° audio coverage using BroadBeam technology. Its weather-resistant design includes a cast-aluminum baffle, UL-listed hanging hardware, a six-position tap switch, and a durable powder-coated grille. With 86.5 dB sensitivity, the RS500i offers better edge-to-edge coverage, reduced power requirements, and shorter installation time, making it ideal for high-output sound in modern restaurant environments.

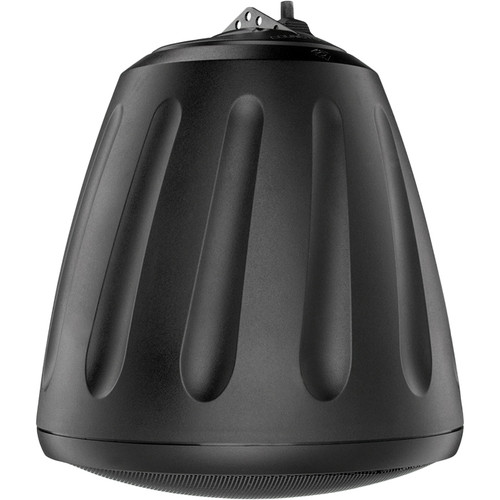

The SoundTube RS1001i-II-T is a weatherized 10" 150W open-ceiling subwoofer engineered for high-output, maximum-efficiency low-frequency performance in sports bar sound systems. Designed for both indoor and outdoor use, it features a polypropylene woofer with butyl rubber surround housed in a tuned, ported enclosure, delivering deep bass response from 38–450 Hz with high SPL up to 105 dB. A five-position tap switch allows for flexible system integration, while UL-listed hardware with SpeedClamp technology ensures fast, secure installation, making it a powerful and reliable subwoofer solution for hospitality environments.
The Pure Resonance Audio DA2500 is a compact 2-channel, 500W Class-D rack mount audio amplifier for restaurants with dual-impedance outputs for 70V or 4–16 Ω systems. Each channel operates independently, allowing mixed-impedance setups. Housed in a 1U chassis, it features Euroblock connections, auto-cooling fans, and protection circuitry. Ideal for restaurants and hospitality settings, the DA2500 delivers powerful, reliable performance with low heat and energy loss.

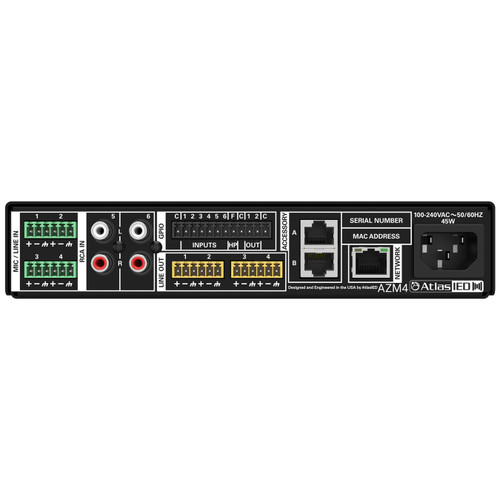

The AtlasIED Atmosphere AZM4 is a 4-zone audio digital signal processor with powerful DSP and advanced algorithms for flexible sound management. It features volume control, ambient noise sensing, auto-gain, Tilter Filter, GPIO, scheduling, and a built-in message player. With intuitive web-based control via Ethernet or Wi-Fi, the AZM4 is a smart, scalable signal processor perfect for fine-tuning audio in restaurant environments.

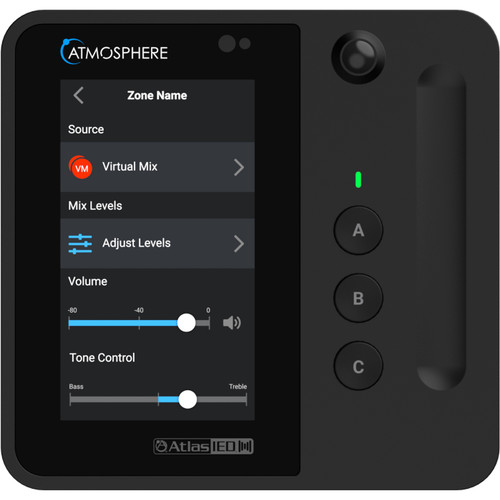

The Atmosphere C-T4 wall control panel features a 4.3" programmable touchscreen, capacitive volume slider, and customizable buttons, making management of zones, sources, and system actions effortless. Built-in motion sensing enables automation based on room occupancy. Designed for plug-and-play with the Atmosphere AZM4 processor via CAT5e and daisy-chainable up to 1,000 ft, this sleek 2-gang audio wall controller fits standard wall boxes and is ideal for busy restaurant spaces needing flexible control.
The Sonos Port enables wireless audio streaming via the Sonos app or Apple AirPlay 2, giving you app-based control over your music content. Use it to stream music throughout the entire restaurant. While the Sonos WiFi streaming provides a single-source output, the system also allows integration with additional external audio sources for varied content in separate zones.
The AtlasIED Atmosphere A-XLR-B is an XLR input wall plate intended for use with the AZM4 audio processor. The AZM4 automatically detects the A-XLR-B and dynamically applies optimized audio settings, including EQ, dynamics processing, auto gain control, and phantom power. This remote audio input allows DJs, musicians, or guests to easily connect microphones or audio sources without needing direct access to the restaurant's main audio system.
