Inside the Design
This restaurant audio system is designed to deliver clear, evenly distributed background music throughout dining areas, patios, and other hospitality spaces. This sound system includes eight Pure Resonance Audio C6 6.5" 30W 2-way in-ceiling loudspeakers with tile bridges, providing discreet installation and consistent audio coverage throughout dining rooms, bars, and other indoor areas. For outdoor coverage, this system includes two S6 6.5" 70V indoor/outdoor surface-mount speakers, delivering clear, reliable audio for patios, entryways, outdoor dining areas, and other spaces where durable surface-mounted speakers are preferred.
At the core of this system is the Pure Resonance Audio DZMA8125 8-channel digital mixer amplifier, providing flexible multi-zone control for distributing background music throughout the facility. The included DZC digital zone controllers allow convenient local volume and source adjustments in different areas, while the built-in DSP provides precise zone routing and system tuning. Wireless music streaming is handled by the BTR1 Bluetooth wireless audio receiver with 100ft range, providing convenient playback from smartphones, tablets, and other compatible devices. System connectivity is supported by an 8-port gigabit Ethernet switch with PoE+, providing reliable network and power distribution for compatible system components.
Designed for flexibility, easy operation, and consistent audio coverage, this sound system for restaurants provides a complete audio solution for dining rooms, patios, cafés, bars, and other hospitality environments.
System Configuration Notice
This system uses a 70V (Hi-Z) speaker configuration with S6 surface-mount speakers and C6 in-ceiling speakers. The DZMA8125 amplifier requires proper output and zone configuration for optimal performance. For assistance, contact (866) 676-7804 or sales@pureresonanceaudio.com.
Sound System Features:
-
- The C6 in-ceiling speakers feature an intelligent, compact flush-mount design with a bezel-less grille that seamlessly blends into the ceiling while providing high-quality background music
- The S6 weather-resistant speakers offer impact resistance and an IP65 water-resistant rating, ensuring protection from direct contact with water and dust to withstand the demanding needs of outdoor conditions
- The DZMA8125 digital mixer amplifier enables powerful 8-channel audio distribution with precise zone routing for efficient paging and music control across the facility
- Built-in DSP and wireless control let you configure input processing, zone routing, speaker processing, and output tuning from any computer, tablet, or smartphone using the DZMA8125's intuitive browser-based interface, with no software installation required
- The BTR1 delivers extended Bluetooth range for ultimate wireless freedom and flexibility, providing consistent streaming performance for up to 100 feet
- Two DZC wall controllers provide digital zone control, allowing fast, intuitive adjustment of volume and source selection within individual zones
About the System Components

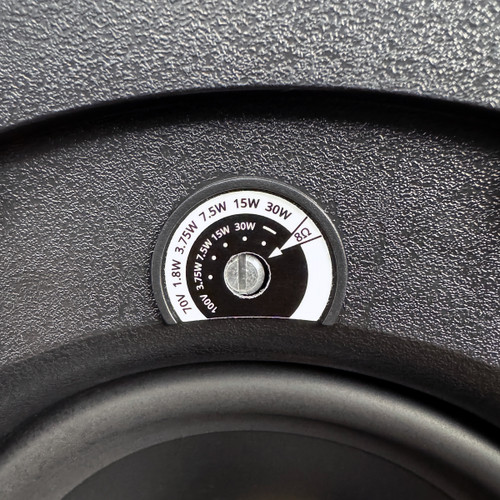

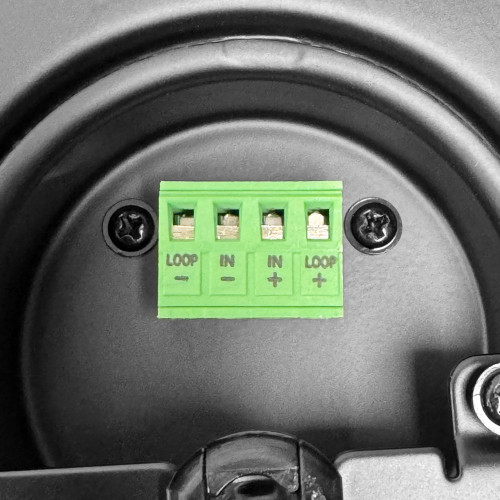

C6 6.5" 70V Flush-Mount Ceiling Speakers
The Pure Resonance Audio C6 6.5" 2-way high-performance commercial ceiling speaker features a compact flush-mount design that blends naturally into restaurant dining areas, bars, and other indoor spaces. This low-impedance ceiling speaker delivers full-range, high-quality sound for balanced background music with clear vocals and detailed music reproduction. With a wide 90Hz - 20kHz frequency range, the C6 provides impressive low-frequency response and clear high-frequency detail for consistent audio coverage throughout the listening area. The C6 features an ABS enclosure with an iron back barrel and powder-coated iron mesh grille for reliable commercial installation. The included C6-TB tile bridge provides secure mounting in new or existing ceiling construction, making the C6 an ideal choice for discreet background music in restaurants, cafés, retail spaces, and other commercial environments.

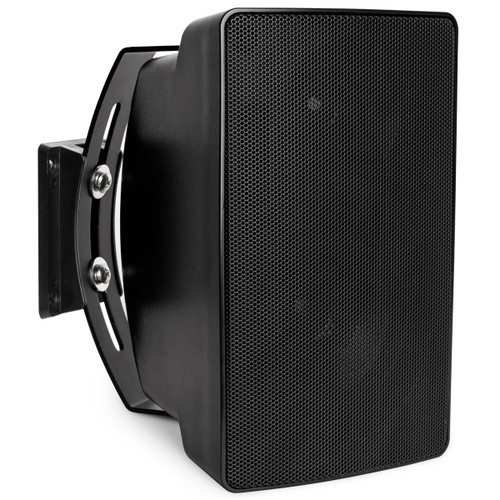

S6 6.5" 70V Outdoor Surface Mount Speakers
The Pure Resonance Audio S6 2-way 70-volt surface-mount speaker is designed to provide clear, reliable audio performance for indoor and outdoor restaurant installations. Its IP65 weather-resistant rating, UV protection, and durable ABS enclosure make the S6 ideal for year-round use in patios, outdoor dining areas, entrances, and other exposed locations. The S6 features a 6.5" polypropylene woofer and 1" silk membrane tweeter that deliver balanced full-range sound for high-quality background music, while the built-in 70V/100V transformer provides flexible installation options. A matching 180-degree mounting bracket allows for quick and easy installation on walls, under awnings, and overhangs. The S6 is an excellent choice for extending consistent background music beyond the main dining area into outdoor spaces.
DZMA8125 8-Channel Digital Mixer Amplifier
The Pure Resonance Audio DZMA8125 is a professional 8-channel digital mixer amplifier designed for flexible multi-zone audio distribution in commercial environments. It combines mixing, amplification, and DSP processing in a single platform, allowing independent control of background music across multiple restaurant zones. With configurable inputs, zone routing, and advanced DSP processing, the DZMA8125 provides precise control over audio levels and system performance throughout the facility. Its built-in speaker processing and output tuning tools help deliver clean, balanced sound across connected speakers, making it the central amplification and control hub of this restaurant audio system.

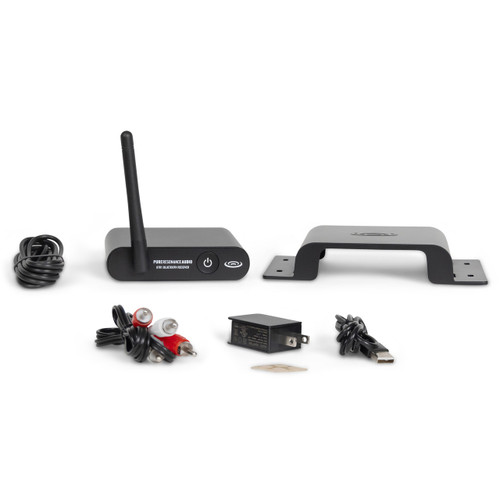

BTR1 Bluetooth Wireless Audio Receiver
The Pure Resonance Audio BTR1 Bluetooth receiver provides reliable wireless audio streaming for commercial sound systems, allowing staff to easily connect smartphones, tablets, or other Bluetooth devices. It delivers high-quality stereo audio with extended range up to 100 feet, supporting stable playback for background music throughout restaurant environments. The BTR1 pairs quickly, remembers multiple devices, and automatically reconnects to previously paired sources, making daily operation simple and efficient. Its improved signal performance ensures clear, full-range audio suitable for continuous commercial use.

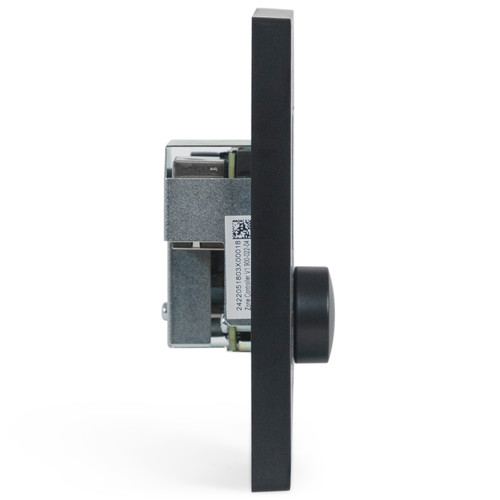

DZC-B Digital Zone Controller
The Pure Resonance Audio DZC digital zone controllers provide convenient local control of audio levels and source selection in individual zones of a multi-zone sound system. Their simple, user-friendly design allows restaurant staff to make quick adjustments without accessing the main mixer amplifier, making them ideal for managing background music in dining areas, bars, patios, and other spaces. The DZC controllers connect to the Pure Resonance Audio DZMA8125 digital mixer amplifier and provide flexible zone control for maintaining comfortable audio levels throughout the restaurant.
