Bar Restaurant Sound System with 9 SoundTube Pendant Speakers, 3 Subwoofers, 4 Surface Mount Speakers, 2 Ceiling Speakers, 4 Outdoor Patio Speakers, Power Amplifier, 4-Zone Processor, Wall Control Panel, Volume Controls, Bluetooth, and Wifi Streaming

Inside the Design

This high-performance multi-zone restaurant and bar sound system is designed for sports bars, brewpubs, banquet halls, cocktail lounges, and other venues with expansive layouts and high ceilings. Delivering immersive, full-range sound with flexible zone coverage, it provides independent volume and source control across every area for a seamless, tailored listening experience.

In the main dining and bar areas, nine SoundTube RS800i 8" pendant speakers paired with three RS1001i-II-T 10" subwoofers deliver rich, detailed audio with deep, powerful bass. The SM400i surface-mount speakers bring enhanced clarity to entryways and hallways, while patios benefit from the durable SM590i-II-WX outdoor speakers. For more discreet coverage, CM400i commercial ceiling speakers provide smooth, consistent sound in restrooms.

Clean, distortion-free performance is powered by the Ashly Audio CA-1.54 4-channel power amplifier and AtlasIED AZM4 4-zone audio processor. Staff can easily manage playback and source selection via the AtlasIED C-T4BT-B Bluetooth wall control panel, while the Sonos Port seamlessly integrates Wi-Fi audio streaming. Localized zone adjustments are made simple with three AtlasIED C-V-B volume controllers, giving teams quick, intuitive access to sound levels in each area. For live events or private functions, the AtlasIED A-XLR-B remote XLR input wall plate allows direct microphone or external device connection without interfering with other zones.

With scalable control, powerful sound reinforcement, and intuitive operation, this commercial sound system for bar and dining environments delivers a premium, fully integrated solution that creates the perfect atmosphere across every zone.

Sound System Features:

• Premium commercial sound system for bars, restaurants, and event venues with high ceilings and large layouts
• Full-range coverage with SoundTube pendant speakers and subwoofers, complemented by surface-mount and ceiling speakers for patios, entryways, and restrooms
• Restaurant audio amplifier delivers clean, powerful performance
• AtlasIED Atmosphere 4-zone audio processor with advanced DSP and wifi control for flexible, independent control
• Audio wall controller with Bluetooth for additional source and full system control
• Seamless music streaming via Sonos Port Wi-Fi
• Event-ready connectivity with remote XLR audio input for microphones and external devices



About the System Components

SoundTube RS800i-BK 8" Pendant Speakers

The SoundTube RS800i-BK is a weatherized 8" coaxial pendant speaker, designed for restaurants and bars with open-ceiling layouts. Its patented BroadBeam waveguide technology delivers consistent, full-range audio coverage for both indoor and outdoor environments. With clear, detailed sound and a smooth high-frequency response, this restaurant pendant speaker is ideal for background music and paging. The ZeroReflection enclosure technology ensures optimal sound reproduction and even coverage throughout the space, while built-in hanging hardware provides secure and flexible installation for a clean, professional look.

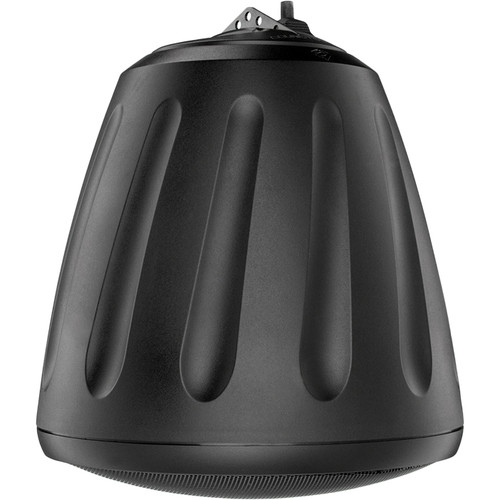

SoundTube RS1001i-II-T-BK 10" Pendant Subwoofers

The SoundTube RS1001i-II-T-BK is a weatherized 10" 150W pendant subwoofer engineered for high-output, maximum-efficiency low-frequency performance in sports bar audio systems. Designed for both indoor and outdoor use, it features a polypropylene woofer with butyl rubber surround housed in a tuned, ported enclosure, delivering deep bass response from 38–450 Hz with high SPL up to 105 dB. A five-position tap switch allows for flexible system integration, while UL-listed hardware with SpeedClamp technology ensures fast, secure installation, making it a powerful and reliable subwoofer solution for hospitality environments.

SoundTube SM400i-BK 4" Surface Mount Speakers

The SM500i-II-WX is a high-power 4" surface-mount speaker for restaurant hallways and entryways. This commercial surface mount speaker delivers consistent, full-range sound with excellent projection, due to a polypropylene woofer and 1" dome tweeter. Its sealed enclosure and rugged build allow it to perform consistently in open-air conditions without sacrificing audio quality.

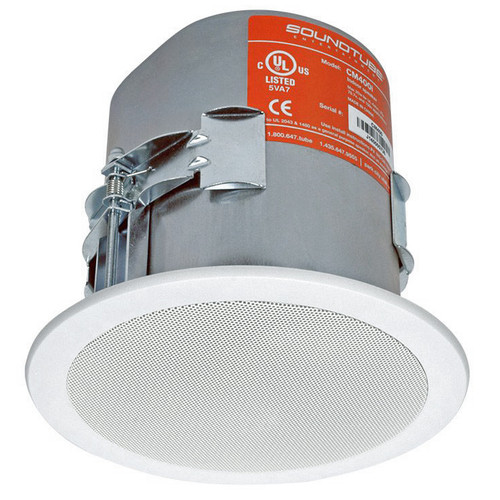

SoundTube CM400i-WH 4" Commercial Ceiling Speakers

The SoundTube CM400i-WH is a compact restaurant ceiling speaker designed for fast installation and seamless integration into any space. Its innovative blind-mount system with a constant-tension design makes setup quick and secure, while the low-profile grille blends cleanly into the ceiling for a modern, discreet look. Delivering clear, balanced sound with solid bass and wide coverage, the CM400i is an excellent choice for restrooms in restaurants and bars.

SoundTube SM590i-II-WX-BK 5.25" Outdoor Patio Speakers

The SM500i-II-WX is a high-power 5.25" SoundTube outdoor speaker built with WeatherX™ technology for reliable performance for restaurant patios. Its dual-layer hydrophobic material and durable powder-coated aluminum grille protect the drivers and internal electronics from water and harsh conditions. Delivering powerful output with a peak of 106 dB, this speaker is ideal for long-throw applications and high SPL requirements. Featuring the new SM590i-II Stealth™ bracket mounting system, this 70-volt outdoor speaker offers both vertical and horizontal pivoting for precise aiming, while its low-profile enclosure design keeps the speaker close to the wall for a sleek, unobtrusive installation.

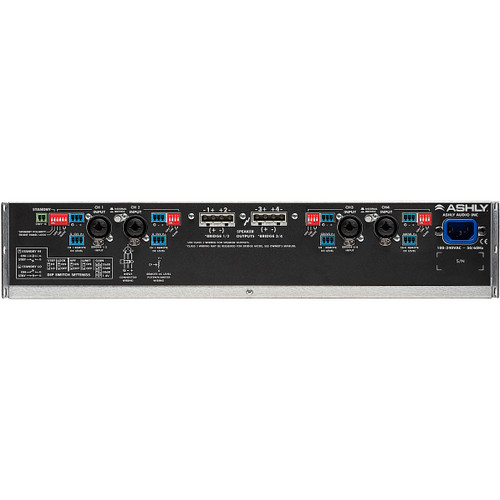

Ashly Audio CA1.54 4-Channel Power Amplifier

The Ashly Audio CA-1.54 is a versatile 4-channel power amplifier engineered for demanding restaurant sound systems. Designed with Ashly’s ultra-efficient D-MAX Class D technology, it delivers clean, reliable performance whether operating at low impedance or in 70V/100V distributed systems. With independent gain control, switchable high-pass filters, and clip limiters per channel, it provides precise tuning and protection for any installation. This restaurant audio amplifier also features SailFlow™ cooling for quiet, dependable operation and installer-friendly euroblock and XLR combo connectors for maximum flexibility.

AtlasIED AZM4 Atmosphere 4-Zone Audio Processor

The AtlasIED Atmosphere AZM4 is a 4-zone audio digital signal processor with powerful DSP and advanced algorithms for flexible sound management. It features volume control, ambient noise sensing, auto-gain, Tilter Filter, GPIO, scheduling, and a built-in message player. With intuitive web-based control via Ethernet or Wi-Fi, the AZM4 is a smart, scalable signal processor perfect for fine-tuning audio in restaurant environments.

AtlasIED C-T4BT-B Atmosphere Bluetooth Audio Wall Controller

The Atmosphere C-T4BT-B is a sleek wall control panel with Bluetooth connectivity, designed to make managing audio zones simple and intuitive. It features a 4.3" programmable touchscreen, capacitive volume slider, and customizable buttons for effortless control of zones, sources, and system actions. Built-in motion sensing enables smart automation based on room occupancy, while the Bluetooth audio input allows staff or guests to stream music directly from any Bluetooth-enabled device. Designed for plug-and-play with the Atmosphere AZM4 processor via CAT5e and daisy-chainable up to 1,000 ft, this sleek 2-gang audio wall controller fits standard wall boxes and is ideal for busy restaurant spaces needing flexible control.

Sonos Port Wireless Streaming Receiver

The Sonos Port enables wireless audio streaming via the Sonos app or Apple AirPlay 2, giving you app-based control over your music content. Use it to stream music throughout the entire restaurant. While the Sonos Wi-Fi streaming provides a single-source output, the system also allows integration with additional external audio sources for varied content in separate zones.

AtlasIED C-V-B Atmosphere Volume Controls

The AtlasIED C-V-B in-wall volume control provides precise level adjustment, mute control, and metering for a single zone or source, giving staff simple yet reliable audio management. This plug-and-play device integrates seamlessly with Atmosphere components, supporting up to eight devices with dependable operation over distances of up to 1,000 feet. With its sleek design and intuitive interface, the C-V-B makes it easy for anyone to confidently control audio levels in busy restaurant, bar, and hospitality environments.

AtlasIED A-XLR-B Atmosphere Remote XLR Audio Input

The AtlasIED Atmosphere A-XLR-B is an XLR input wall plate intended for use with the AZM4 audio processor. The AZM4 automatically detects the A-XLR-B and dynamically applies optimized audio settings, including EQ, dynamics processing, auto gain control, and phantom power. This remote audio input allows DJs, musicians, or guests to connect microphones or other external audio sources easily without needing direct access to the audio rack.

SoundTube RS800i 8" 125W Weather-Resistant Indoor/Outdoor Pendant Speakers

• 8" coaxial driver with polypropylene woofer and 1" silk dome tweeter for full-range audio
• 125W power handling with a frequency response ideal for background music and paging
• Patented BroadBeam® waveguide technology delivers consistent coverage up to 10 kHz
• ZeroReflection™ enclosure ensures smooth, accurate sound reproduction
• Weather-resistant design suitable for both indoor and outdoor applications
• Integrated hanging hardware allows fast, secure installation in open-ceiling venues



SoundTube RS1001i-II-T 10" Hanging Pendant Subwoofers with Transformer

• 10" polypropylene woofer with butyl rubber surround for deep, high-output bass
• Delivers low-frequency response from 38 Hz–450 Hz with SPL up to 105 dB
• 150W power handling with built-in transformer for 70V/100V distributed systems
• Tuned, ported enclosure for maximum efficiency and performance
• Five-position tap switch provides flexible system integration
• UL-listed SpeedClamp™ mounting hardware ensures safe, easy installation



SoundTube SM400i 4" 70V Surface-Mount Speakers

• 4" polypropylene woofer and 1" dome tweeter for balanced full-range sound
• Compact design ideal for hallways, entryways, and smaller spaces
• Sealed enclosure protects components for reliable performance
• Delivers wide-area coverage and excellent speech intelligibility
• Designed for 70V distributed sound systems in commercial spaces
• Durable finish blends seamlessly into modern restaurant interiors



SoundTube CM400i 4" 2-Way In-Ceiling Speakers with BroadBeam Tweeter

• 4" treated fiber woofer and 0.75" BroadBeam® tweeter for smooth, even coverage
• Compact low-profile grille blends into commercial ceiling spaces
• Blind-mount constant-tension system enables quick, secure installation
• Delivers balanced sound ideal for restrooms, hallways, and entryways
• Wide dispersion ensures consistent audio across the room
• Designed for seamless integration into distributed 70V/100V systems



SoundTube SM590i-II-WX 5.25" 70V Surface-Mount Outdoor Speakers with WeatherX Technology

• 5.25" high-power driver engineered for long-throw outdoor audio coverage
• WeatherX™ technology with dual-layer hydrophobic material for water resistance
• Powder-coated aluminum grille protects internal electronics from harsh conditions
• Delivers peak output up to 106 dB for high-SPL environments
• Stealth™ bracket system allows both vertical and horizontal pivoting
• Low-profile enclosure design keeps the speaker close to the wall for discreet installation



Ashly CA1.54 4-Channel 1500W Power Amplifier

• 4-channel Class D amplifier with 1500W total output power
• Operates in both low-impedance and 70V/100V distributed audio systems
• Independent gain control, high-pass filters, and clip limiters per channel
• D-MAX technology delivers efficient, clean performance
• SailFlow™ cooling system ensures quiet, dependable operation
• Euroblock and XLR combo connectors for flexible installation



AtlasIED AZM4 Atmosphere 4-Zone Audio Processor with WiFi and DSP

• 4-zone DSP-based audio processor with advanced sound management features
• Includes ambient noise sensing, auto-gain, GPIO, scheduling, and message playback
• Supports intuitive web-based control via Ethernet or Wi-Fi
• Scalable system ideal for restaurants, bars, and hospitality venues
• Integrates seamlessly with Atmosphere controllers and remote inputs
• Delivers precise, independent volume and source control across multiple zones



AtlasIED C-T4BT-B Atmosphere Wall Controller with Bluetooth Audio

• 4.3" programmable touchscreen with intuitive zone and source control
• Built-in capacitive volume slider and customizable buttons
• Bluetooth audio input allows direct music streaming from mobile devices
• Motion-sensing technology enables automated system adjustments
• Plug-and-play CAT5e connection, daisy-chainable up to 1,000 ft
• Sleek black 2-gang wall plate design for modern commercial interiors



Sonos Port Wireless Streaming Component

• Streams audio wirelessly via Sonos app or Apple AirPlay 2
• App-based control enables easy music management for staff
• Provides single-source output with integration options for multi-zone setups
• Compact, discreet design fits easily into AV racks
• Ideal for background music streaming in restaurants and hospitality venues
• Supports integration with external audio sources for greater flexibility



AtlasIED C-V-US-B Atmosphere Volume Controls

• In-wall volume control for managing a single zone or audio source
• Provides precise level adjustment, mute control, and audio metering
• Seamlessly integrates with Atmosphere processors and controllers
• Supports up to 8 devices over long distances up to 1,000 feet
• Simple interface allows easy use by staff in busy environments
• Sleek black finish complements modern hospitality design



AtlasIED A-XLR-US-B Atmosphere Remote XLR Input

• Remote XLR wall plate designed for use with Atmosphere AZM processors
• Automatically detected by the system for optimized audio settings
• Applies EQ, gain, dynamics processing, and phantom power automatically
• Allows DJs, musicians, or presenters to connect microphones or devices
• Eliminates the need to access the central audio rack directly
• Durable black wall plate design blends into professional interiors

• (9) SoundTube RS800i 8" 125W Weather-Resistant Indoor/Outdoor Pendant Speakers - Black
• (3) SoundTube RS1001i-II-T 10" Hanging Pendant Subwoofers with Transformer - Black
• (4) SoundTube SM400i 4" 70V Surface-Mount Speakers - Black
• (2) SoundTube CM400i 4" 2-Way In-Ceiling Speakers with BroadBeam Tweeter - White
• (4) SoundTube SM590i-II-WX 5.25" 70V Surface-Mount Outdoor Speakers with WeatherX Technology - Black
• (1) Ashly CA1.54 4-Channel 1500W Power Amplifier
• (1) AtlasIED AZM4 Atmosphere 4-Zone Audio Processor with WiFi and DSP
• (1) AtlasIED C-T4BT-B Atmosphere Wall Controller with Bluetooth Audio - Black
• (1) Sonos Port Wireless Streaming Component - Black
• (3) AtlasIED C-V-US-B Atmosphere Volume Controls- Black
• (1) AtlasIED A-XLR-US-B Atmosphere Remote XLR Input - Black

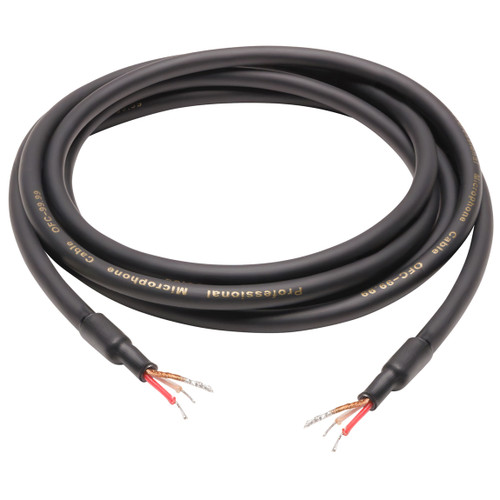

• (4) Pure Resonance Audio PREP-3-PREP Prep-to-Prep Patch Cables - 3ft
• (2000') West Penn 226 14/2 Non-Plenum Audio Speaker Wire - Black
