Restaurant Sound System with 2 Ceiling Speakers JBL Mixer Amplifier and Paging Microphone

Inside the Design

This restaurant sound system delivers exceptional audio for small to medium-sized spaces such as cafes, coffee shops, and diners. It features two high-performance Pure Resonance Audio SD4 ceiling speakers for dynamic sound, a JBL CSMA 180 mixer amplifier for versatile control, a Pure Resonance Audio PTT1 paging microphone for clear announcements, and a JBL CSR-V remote volume control for convenient audio adjustments. Designed for reliability and ease of use, this system provides seamless background music and paging capabilities while offering expandability for future needs.

Sound System Features:

• Sleek and powerful sound system designed for easy operation
• Clean and dynamic sound with four 6.5" aluminum-woofer drivers in each Pure Resonance Audio SD4 speaker
• High transient response for sharp, distortion-free audio reproduction
• Versatile mixer amplifier with flexible inputs and 70V/100V compatibility
• Integrated paging microphone with push-to-talk functionality
• Remote volume control for convenient sound adjustments
• Expandable system design for additional zones and audio sources



About the System Components

Pure Resonance Audio SD4 Ceiling Speakers

The Pure Resonance Audio SD4 ceiling speakers are built to provide high-fidelity audio with unmatched clarity. Each speaker employs four 6.5" aluminum-woofer drivers that work in unison to deliver a tight, punchy low end and exceptional transient response. This innovative design minimizes distortion and ensures precise sound reproduction, making these speakers ideal for background music and vocal clarity in restaurant settings.

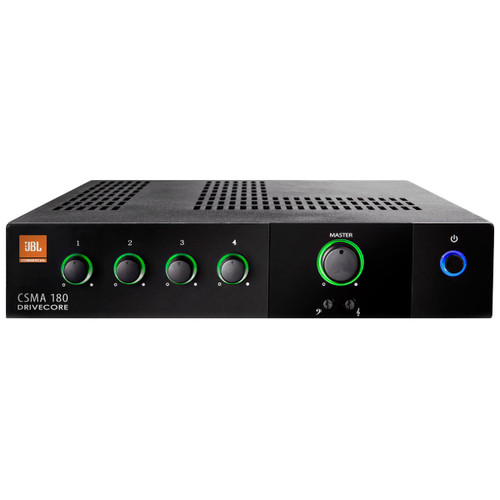

JBL CSMA 180 Mixer Amplifier

The JBL CSMA 180 mixer amplifier provides reliable power and flexible audio management for restaurants and cafes. It offers 80W output with 70V/100V compatibility and independent volume controls for multiple inputs, making it an ideal choice for managing background music and paging in commercial spaces. Its compact design includes rack-mounting options for seamless installation.

Pure Resonance Audio PTT1 Paging Microphone

The Pure Resonance Audio PTT1 paging microphone ensures clear, reliable communication for staff and customers. Featuring a push-to-talk button, it allows for quick and easy announcements, ensuring smooth operation in busy restaurant environments.

JBL CSR-V Remote Volume Control

The JBL CSR-V remote volume control offers intuitive and convenient audio adjustments. Using simple Cat 5 cabling and RJ-45 connectors, this wall-mounted control allows staff to easily manage volume levels from a central location, enhancing the system's usability in fast-paced environments.

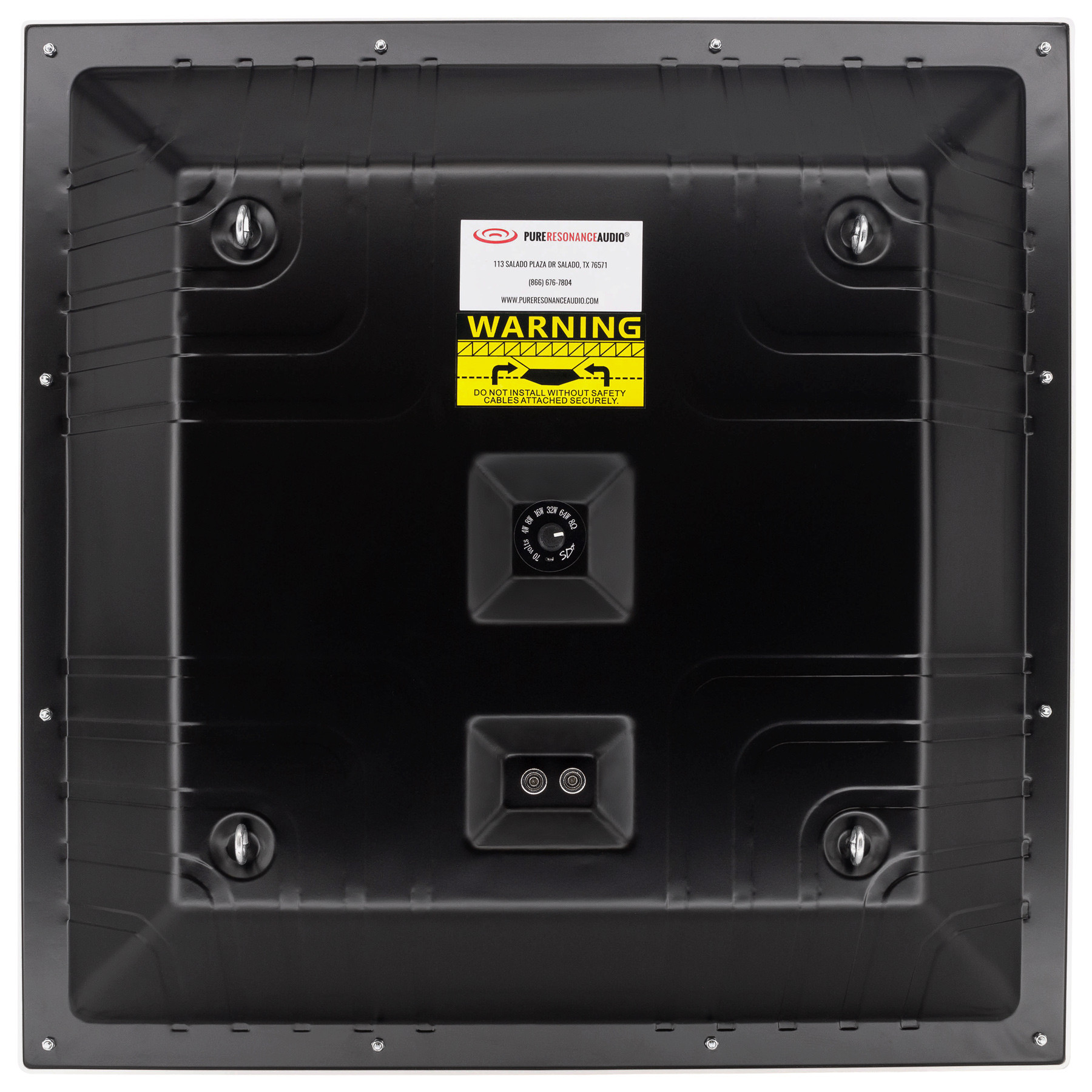

PRA SD4 Ceiling Speaker Array:

• SuperDispersion® 360 x 180 Omni Directional Coverage
• Engineered for voice, paging and music applications
• Infinite-baffle in-ceiling speaker drops into standard 2x2 ceiling tile openings
• Powerful – 160 Watts at 8 Ohms, 64 Watts at 70 Volts
• 4 - 6.5" High compliance aluminum woofers with ported bass response and high frequency dome tweeters
• Uniquely designed fire retardant ABS housing may be painted to match any décor
• Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 Watt taps), easily adjustable by rotating switch
• Metal Backbox that is acoustically engineered and sealed for maximum sonic performance
• Safety cable kit included

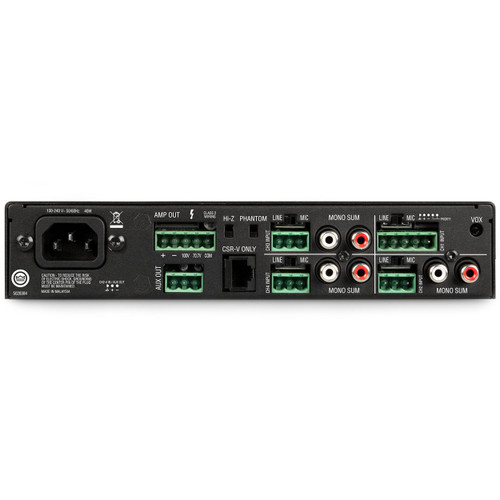

JBL CSMA 180 Mixer Amplifier:

• 4 inputs with 1 output of 80W of power
• Ideal for commercial and industrial use
• Fanless, space-saving 1U design
• Sleek industrial look with illuminated rings, making them easy to see and operate
• Euro-block type mic/line input connectors and output connectors
• Independent Bass and Treble controls for each output channel
• Supports 70V and 100V distributed audio systems without the need for a separate transformer
• Remote volume control capability using JBL CSR-V module and standard Ethernet cable
• Priority muting
• Configurable output routing
• Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
• Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
• Includes rack mounting kit
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
• Energy Star® Certified

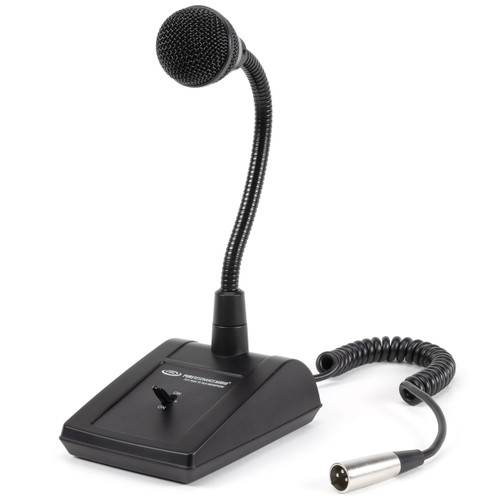

Pure Resonance Audio PTT1 Push-to-Talk Gooseneck Microphone:

• Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up



JBL CSR-V Remote Volume Control:

• 1-Zone volume control
• Equipped with RJ-45 / Cat. 5 connectors
• Up to 1000' (305 m) from CSM device
• For use with all CSMA, CSM, and CSA (Z) models

• (2) Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Arrays
• (1) JBL CSMA 180 4-Channel Commercial Mixer Amplifier
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (1) JBL CSR-V Remote Volume Control
• (100') West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Gray
