Restaurant Sound System with 4 SoundTube RS42-EZ Pendant Speakers and 60W Mixer Amplifier

Inside the Design

This restaurant sound system delivers high-performance background music and paging capabilities, enhancing the dining experience in open-ceiling environments. Ideal for restaurants, bars, cafes, and coffee shops, it provides seamless indoor and outdoor audio coverage with precise volume control. The system features four SoundTube RS42-EZ 4" pendant speakers paired with the versatile Pure Resonance Audio MA60BT Bluetooth mixer amplifier and the Pure Resonance Audio VC100W commercial volume control. Together, these components deliver clear, evenly distributed sound and user-friendly operation, perfect for creating the desired ambiance in your establishment.

Sound System Features

• Easy integration into open-ceiling environments with high-quality pendant speakers
• Effortless volume control with a Decora-style wall-mounted volume controller
• Seamless Bluetooth streaming for music playback from smartphones, tablets, or other devices
• Exceptional sound clarity for background music and paging across indoor spaces
• Durable components designed for consistent, long-lasting performance

About the System Components

SoundTube RS42-EZ 4" Pendant Speakers

The SoundTube RS42-EZ pendant speakers feature a 4" coaxial driver with BroadBeam Ring technology, ensuring smooth high-frequency directivity and clear, balanced audio. These durable, injection-molded ABS speakers include galvanized steel hanging hardware for secure installation, making them ideal for open-ceiling applications. They offer 16-ohm impedance for flexible daisy-chaining in 70V systems.

Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier

The MA60BT combines a 60-watt power amplifier with Bluetooth streaming and versatile audio inputs. It supports microphones and line-level devices, making it an ideal choice for background music and paging applications. Its compact design and user-friendly controls simplify operation while delivering reliable performance.

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control

The VC100W volume control provides precise adjustment for 70V audio systems. Its sleek Decora-style design integrates seamlessly into any commercial setting, offering up to 100 watts of power handling and smooth, intuitive operation.

System & Component Videos

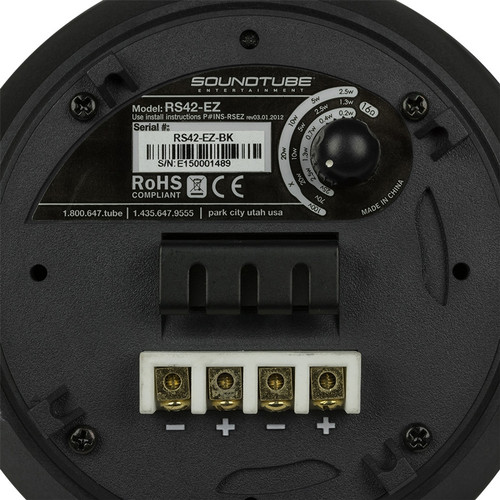

SoundTube RS42-EZ 4" Open-Ceiling Pendant Speakers

• One 4" (102 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high frequency directivity
• Weatherized components for indoor and outdoor applications
• Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation
• Unit may be hung or mounted direct-to-conduit via locking cover plate
• Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications
• 16 ohm impedance for easy daisy chaining in low voltage systems
• Aluminum grille with protective powder coated finish
• Built-in thermal fuse
• Unit ships in eco-friendly, recyclable packaging
• UL 1480 UEAY planned, UL 2239 approved
• High-quality black or white paint finish, speaker is paintable
• Included accessories: hanging hardware, weather plug, cover plate



Pure Resonance Audio MA60BT 7-Channel 60W Bluetooth Commercial Mixer Amplifier

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 60 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

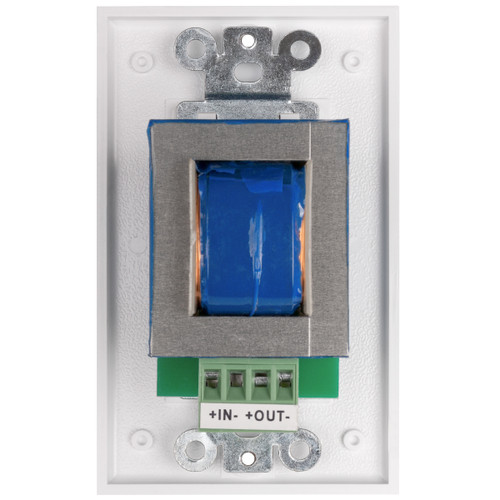

Pure Resonance Audio VC100W 100W Decora 70V Volume Control

• Stylish appearance - Decora-style design includes a white plastic plate with matching knob
• Flexible - The VC100W is perfect for use with a 25V, 70V, or 100V speakers and distributed audio systems
• High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
• Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (4) SoundTube RS42-EZ 4" Open-Ceiling Pendant Speakers
• (1) Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier
• (1) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control - White
• (100') West Penn 225 16/2 Non-Plenum Speaker Wire
