Restaurant Sound System with 8 Atlas SD72W 70V Ceiling Speaker Kits, Bluetooth Mixer Amplifier, and Volume Control

Inside the Design

This restaurant sound system provides high-quality background audio and paging capabilities to enhance the atmosphere throughout your establishment. Featuring eight Atlas Sound SD72W 8-inch in-ceiling speakers, complete with tile bridges and backcans, this system ensures clear and consistent sound. The compact and powerful Pure Resonance Audio MA30BT 7-channel mixer amplifier delivers reliable performance and includes Bluetooth connectivity, making it easy to control music playback from any smartphone, tablet, or Bluetooth-enabled device. Additionally, the included Atlas Sound AT35 wall-mounted volume attenuator allows convenient adjustment of audio levels to match the needs of your space.

Sound System Features

• Eight high-quality in-ceiling speakers for clear and consistent background music and paging
• Easy music control with the Bluetooth-enabled mixer amplifier, supporting streaming from smart devices
• Compact design ideal for restaurants, cafes, and retail spaces
• Reliable performance for both background music and paging applications
• Wall-mounted volume control for convenient audio adjustments

About the System Components

Atlas Sound SD72W 8" Dual Cone In-Ceiling Loudspeakers

The Atlas Sound SD72W features an 8-inch dual-cone speaker designed for excellent sound reproduction in both background music and paging applications. Its durable design delivers clear, intelligible audio, making it ideal for restaurants, retail spaces, and offices. The included backcans and tile bridges ensure secure and seamless installation in drop ceiling tiles.

Pure Resonance Audio MA30BT 7-Channel 30W Mixer Amplifier with Bluetooth

The MA30BT is a compact and versatile mixer amplifier that delivers 30 watts of reliable power for commercial sound systems. It supports 70V/100V outputs, features multiple input options, and includes built-in Bluetooth connectivity, allowing easy streaming from smartphones or tablets. The onboard MP3 player supports USB and SD card inputs for added flexibility, while the intuitive controls ensure quick and efficient operation.

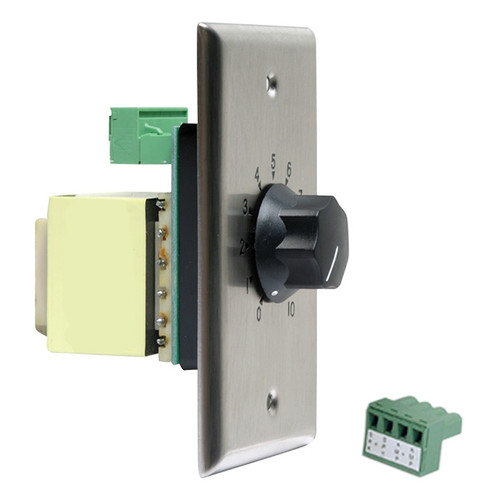

Atlas Sound AT35 35W Single Gang Stainless Steel 70V Volume Attenuator

The AT35 wall-mounted volume attenuator provides easy and precise control of audio levels in 70V systems. Its durable stainless steel construction and reliable performance make it an ideal addition to commercial sound systems, ensuring seamless integration and user-friendly operation.

Atlas Sound SD72W In-Ceiling Speakers with Enclosures and Tile Bridges

• 10oz dual cone speaker provides familiar response & performance
• Attractive CRS white powder coat baffle
• Individually packaged for stocking & ordering convenience
• Quality 5 watt-dual voltage transformer
• ETL certified, safety listed to UL1480 and UL2043



Pure Resonance Audio MA30BT 7-Channel 30W Commercial Mixer-Amplifier

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 30 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system



Atlas Sound AT35 35W Single Gang Stainless Steel 70V Commercial Volume Attenuator

• 10 attenuation steps plus positive off
• Mount into most 1-gang E.O. boxes
• Wall plates are stainless steel with stamped and filled dial scale, and a skirted black knob
• UL Listed

• (8) Atlas Sound SD72W 8" Dual Cone In-Ceiling Loudspeakers
• (8) Atlas Sound CS95-8 8" Recessed Round Stacking Ceiling Speaker Enclosures
• (8) Atlas Sound 81-8R 8" Round Hole T-Bar Bridges
• (1) Pure Resonance Audio MA30BT 7-Channel 30W Commercial Mixer Amplifier with Bluetooth
• (1) IR Remote Control
• (1) Power Cord
• (1) Atlas Sound AT35 35W Single Gang Stainless Steel 70V Commercial Volume Attenuator
• (250') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
