Restaurant Speaker System with 12 Electro-Voice Surface Mount Speakers, 2 Ceiling Speakers, 4 Outdoor Patio Speakers, Power Amplifier, 4-Zone Processor, Wall Control Panel, Remote XLR Input, Volume Controls, Bluetooth, and Wifi Streaming

Inside the Design

This premium multi-zone speaker system for large restaurants delivers clear, consistent coverage, creating the perfect soundscape for background music, lively social events, or live entertainment. The twelve Electro-Voice EVID-S5.2T commercial surface-mount speakers enhance the dining areas, entryway, and banquet spaces with rich, full-range sound. Subtle Electro-Voice EVID-C4.2 in-ceiling speakers maintain audio flow in the bathrooms without disrupting the aesthetic, while four EVID-S5.2X outdoor speakers extend music and announcements to the patio.

This system is powered by a Dynacord V600:4 600W 4-channel power amplifier, paired with an AtlasIED AZM4 Atmosphere 4-zone audio processor with advanced DSP and Wi-Fi control for clean, reliable performance. The AtlasIED C-T4BT-B Bluetooth wall control panel provides system-wide digital control and a convenient Bluetooth input, while the Sonos Port enables flexible wireless audio streaming for curated background playlists.

Three AtlasIED Atmosphere C-V-B wall-mount volume controllers allow staff to adjust sound levels locally without affecting other areas, and an A-XLR-B remote audio input makes it easy for DJs, musicians, or trivia hosts to connect directly. Scalable, versatile, and easy to manage, this professional restaurant speaker setup ensures an elevated guest experience across every zone of your venue.

Sound System Features:

• Premium multi-zone restaurant speaker system tailored for large dining venues
• Electro-Voice speakers deliver rich, full-range sound for seamless background music and extended high-quality coverage from dining rooms to patios
• Dynacord 4-channel power amplifier ensures clean, reliable performance
• AtlasIED Atmosphere audio digital signal processor with advanced DSP and Wi-Fi for flexible multi-zone control
• Bluetooth audio wall controller provides system-wide digital control
• Sonos Port Wi-Fi streaming enables seamless music playback
• Remote XLR input wall plate allows third-party sources to connect quickly and easily
• In-wall volume controls let staff adjust sound levels independently across different areas



About the System Components

Electro-Voice EVID-S5.2TB 5" Commercial Surface Mount Speakers

The Electro-Voice EVID-S5.2T is a high-performance 5.25" two-way surface-mount loudspeaker that delivers rich, full-range sound with wide, uniform coverage. Ideal for background and foreground music, paging, and sound reinforcement, it’s a perfect solution for restaurants. With a sleek, modern design and flexible mounting options, this restaurant speaker combines outstanding performance with easy installation, making it a versatile choice for large dining spaces.

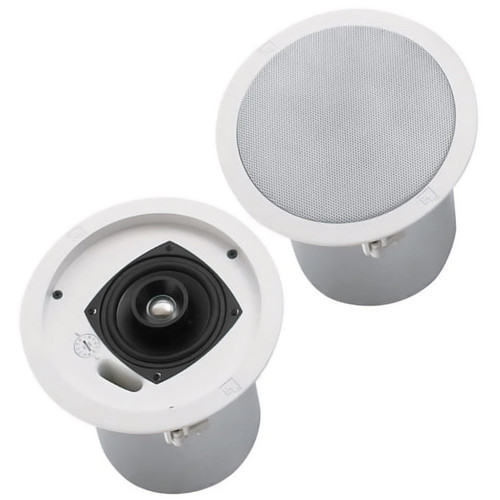

Electro-Voice EVID C4.2 4" 2-Way In-Ceiling Speakers

The Electro-Voice EVID C4.2 is a complete 4” two-way indoor restaurant ceiling speaker. It features a waveguide-coupled 0.75” titanium-coated dome tweeter, full-range coaxial driver, and integrated line-matching transformer with selectable 70V/100V taps or 8Ω bypass, along with a front-panel wattage selector for easy power adjustments. It delivers wide dispersion, extended bass response, high efficiency, and maximum output in a seamless installation that blends into the restaurant’s aesthetic.

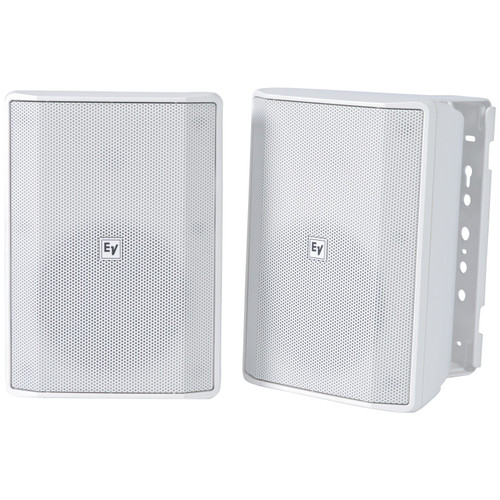

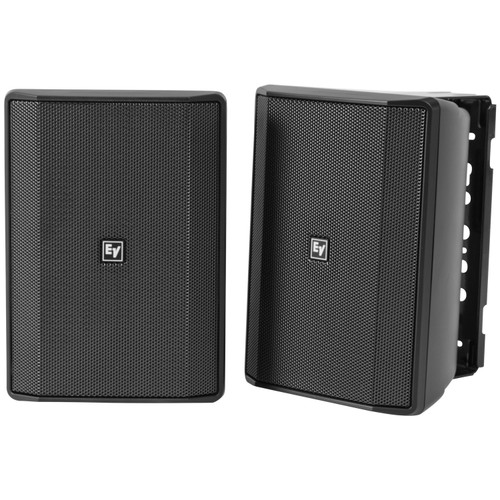

Electro-Voice EVID-S5.2XB Outdoor Surface Mount Speakers

The Electro-Voice EVID-S5.2X is a high-performance 5.25" two-way surface-mount outdoor patio speaker that delivers rich, full-range sound with wide, even coverage. These IP65-rated outdoor speakers for restaurants are built to withstand sun, salt, moisture, and chlorine, making them ideal for patios and other exposed environments. A versatile U-bracket allows 80° of rotation, while a 60W transformer with multiple 70V/100V taps and 8Ω bypass ensures easy integration.

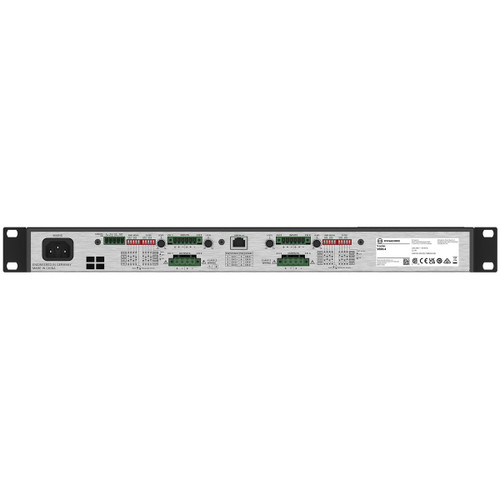

Dynacord V600:4 4-Channel Power Amplifier

The Dynacord V600:4 is a professional-grade 4-channel, 600W power amplifier designed for reliable performance and versatile commercial audio installations. Housed in a compact 1RU chassis, it delivers high output while conserving rack space, making it ideal for restaurants. Equipped with Dynacord’s advanced technologies, the V600:4 provides low energy consumption, flexible power-load allocation, and trouble-free operation under demanding conditions. Lightweight, easy to handle, and cost-efficient, this restaurant speaker amplifier is perfect for background music, announcements, and multi-zone audio setups.

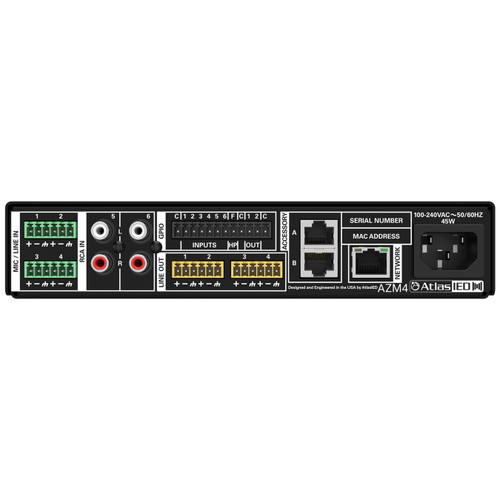

AtlasIED AZM4 Atmosphere 4-Zone Audio Processor

The AtlasIED Atmosphere AZM4 is a 4-zone audio digital signal processor with powerful DSP and advanced algorithms for flexible sound management. It features volume control, ambient noise sensing, auto-gain, Tilter Filter, GPIO, scheduling, and a built-in message player. With intuitive web-based control via Ethernet or Wi-Fi, the AZM4 is a smart, scalable signal processor perfect for fine-tuning audio in restaurant speaker setups.

AtlasIED C-T4BT-B Atmosphere Bluetooth Audio Wall Controller

The Atmosphere C-T4BT-B is a sleek wall control panel with Bluetooth connectivity, designed to make managing audio zones simple and intuitive. It features a 4.3" programmable touchscreen, capacitive volume slider, and customizable buttons for effortless control of zones, sources, and system actions. Built-in motion sensing enables smart automation based on room occupancy, while the Bluetooth audio input allows staff or guests to stream music directly from any Bluetooth-enabled device. Designed for plug-and-play with the Atmosphere AZM4 processor via CAT5e and daisy-chainable up to 1,000 ft, this sleek 2-gang audio wall controller fits standard wall boxes and is ideal for busy restaurant spaces needing flexible control.

Sonos Port Wireless Streaming Receiver

The Sonos Port enables wireless audio streaming via the Sonos app or Apple AirPlay 2, giving you app-based control over your music content. Use it to stream music throughout the entire restaurant. While the Sonos wifi streaming provides a single-source output, the system also allows integration with additional external audio sources for varied content in separate zones.

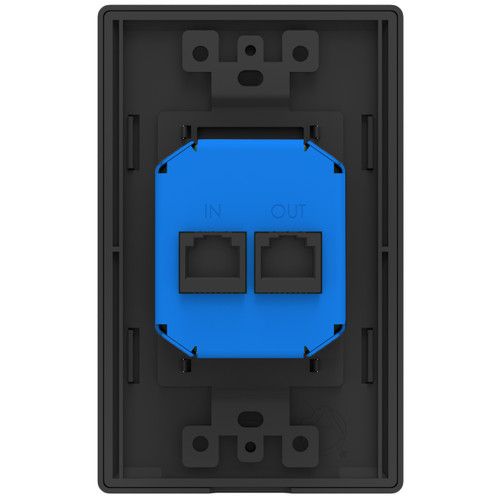

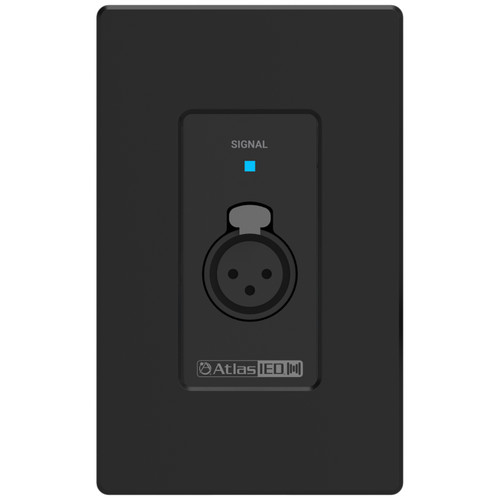

AtlasIED A-XLR-B Atmosphere Remote XLR Audio Input

The AtlasIED Atmosphere A-XLR-B is an XLR input wall plate intended for use with the AZM4 audio processor. The AZM4 automatically detects the A-XLR-B and dynamically applies optimized audio settings, including EQ, dynamics processing, auto gain control, and phantom power. This remote audio input allows DJs, musicians, or trivia hosts to connect microphones or other external audio sources easily without needing direct access to the audio rack.

AtlasIED C-V-B Atmosphere Wall Mount Volume Controls

The AtlasIED C-V-B in-wall volume control provides precise level adjustment, mute control, and metering for a single zone or source, allowing staff to adjust local levels independently without affecting the rest of the venue. This plug-and-play device integrates seamlessly with Atmosphere components, supporting up to eight devices with dependable operation over distances of up to 1,000 feet. With its sleek design and intuitive interface, the C-V-B makes it easy for anyone to confidently manage audio levels in busy restaurant environments.

Electro-Voice EVID-S5.2TB 2-Way 5" 70V Commercial Surface Mount Loudspeakers

• 5.25" two-way surface-mount speaker with wide, uniform coverage
• Delivers rich, full-range sound for background and foreground music
• Selectable 70V/100V transformer taps with 8Ω bypass
• Sleek, modern design complements restaurant and commercial spaces
• Flexible mounting options allow versatile installation indoors
• Ideal for dining areas, lobbies, and multipurpose commercial venues



Electro-Voice EVID C4.2 4" 2-Way Coaxial In-Ceiling Speakers

• 4" coaxial ceiling speaker with 0.75" titanium-coated dome tweeter
• Full-range audio with wide dispersion and extended bass response
• Integrated transformer with 70V/100V taps or 8Ω bypass
• Front-panel wattage selector for quick power adjustments
• Compact grille design blends seamlessly into ceilings
• Perfect for background music, paging, and restaurant installations



Electro-Voice EVID-S5.2XB 5" 70V Weather Resistant Surface Mount Speakers

• 5.25" two-way outdoor-rated surface-mount speaker with IP65 rating
• Durable construction withstands sun, salt, moisture, and chlorine
• Delivers rich, full-range sound with wide, even coverage
• 60W transformer with multiple 70V/100V taps and 8Ω bypass
• Versatile U-bracket allows 80° of rotation for flexible aiming
• Designed for patios, terraces, and other exposed environments



Dynacord V600:4 4-Channel Power Amplifier

• Professional-grade 4-channel amplifier with 600W total output
• Compact 1RU design conserves rack space in commercial installations
• Advanced Dynacord technology ensures clean, efficient performance
• Supports flexible power-load allocation and low energy consumption
• Lightweight and easy to handle for installers
• Reliable solution for multi-zone restaurant and hospitality audio



AtlasIED AZM4 Atmosphere 4-Zone Audio Processor with WiFi and DSP

• 4-zone DSP processor with advanced sound management capabilities
• Features ambient noise sensing, auto-gain, GPIO, and scheduling
• Built-in message player for announcements and alerts
• Intuitive web-based control via Ethernet or Wi-Fi
• Scalable solution ideal for restaurants, bars, and retail spaces
• Integrates seamlessly with Atmosphere wall controllers and inputs



AtlasIED C-T4BT-B Atmosphere Wall Controller with Bluetooth Audio

• 4.3" programmable touchscreen with intuitive audio zone control
• Capacitive volume slider and customizable system buttons
• Bluetooth audio input for direct music streaming from mobile devices
• Motion-sensing automation responds to occupancy changes
• Plug-and-play with AZM processors via CAT5e, daisy-chainable up to 1,000 ft
• Sleek 2-gang design with modern finish for commercial interiors



Sonos Port Wireless Streaming Component

• Wireless audio streaming via Sonos app or Apple AirPlay 2
• App-based control for easy access to music sources and playlists
• Provides single-source output with integration flexibility
• Compact design fits neatly into audio racks or equipment shelves
• Ideal for background music streaming across commercial zones
• Supports additional external source integration for expanded content



AtlasIED A-XLR-US-B Atmosphere Remote XLR Input

• Remote XLR input wall plate designed for Atmosphere AZM processors
• System automatically detects and applies optimized audio settings
• Supports EQ, gain, dynamics processing, and phantom power
• Allows DJs, musicians, or hosts to connect microphones and devices
• Provides quick, easy access without needing to reach the audio rack
• Durable wall plate with professional black finish for commercial use



AtlasIED C-V-US-B Atmosphere Volume Controls

• In-wall volume control for single-zone or source management
• Offers precise adjustment, mute control, and level metering
• Seamless integration with Atmosphere processors and controllers
• Supports up to 8 devices with reliable operation up to 1,000 feet
• Simple, intuitive interface for staff in busy restaurant environments
• Sleek black finish blends with modern hospitality interiors

• (12) Electro-Voice EVID-S5.2TB 2-Way 5" 70V Commercial Surface Mount Loudspeakers - Black
• (4) Electro-Voice EVID-S5.2XB 5" 70V Weather Resistant Surface Mount Speakers - Black
• (2) Electro-Voice EVID C4.2 4" 2-Way Coaxial In-Ceiling Speakers - White
• (1) Dynacord V600:4 4-Channel Power Amplifier
• (1) AtlasIED AZM4 Atmosphere 4-Zone Audio Processor with WiFi and DSP
• (1) Sonos Port Wireless Streaming Component
• (1) AtlasIED C-T4BT-B Atmosphere Wall Controller with Bluetooth Audio - Black
• (3) AtlasIED C-V-US-B Atmosphere Volume Controls - Black
• (1) AtlasIED A-XLR-US-B Atmosphere Remote XLR Input - Black
• (4) Pure Resonance Audio PREP-3-PREP Prep-to-Prep Patch Cables - 3ft
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Black
