Retail Background Music System with 6 Biamp MASK2 Surface Mount Speakers, MA60BT 60W Bluetooth Mixer Amplifier and Volume Control

Inside the Design

This 70V retail store sound system is designed to deliver clear, consistent background music and paging for small retail stores, shops, and boutiques. The system includes six Biamp MASK2 compact surface-mount speakers paired with a MA60BT 60W Bluetooth mixer amplifier for reliable, easy-to-use performance. The compact speaker design blends seamlessly into modern retail environments while still providing high-quality sound. The 7-channel Bluetooth mixer amplifier offers simple operation and dependable functionality, making this system an excellent solution for everyday commercial audio needs.

Sound System Features:

• Easy-to-install 70V sound system with simple operation
• Compact, attractive speakers that integrate cleanly into any retail decor
• Clear, balanced background music and paging performance
• Bluetooth mixer amplifier enables wireless music streaming from any Bluetooth-enabled device
• 60W 7-channel mixer amplifier with MP3 player, FM radio, USB and SD inputs, and IR remote control
• Includes paging capability with VOX priority and music on hold functionality

About the System Components

Biamp MASK2 Compact Surface-Mount Speakers

The Biamp MASK2 speakers are ultra-compact surface-mount loudspeakers designed for discreet commercial installations. Each speaker features a 2.5 inch paper cone woofer that delivers clear, intelligible audio despite its small footprint. The modern design allows the speakers to blend effortlessly into retail interiors while maintaining dependable sound quality for background music and paging applications.

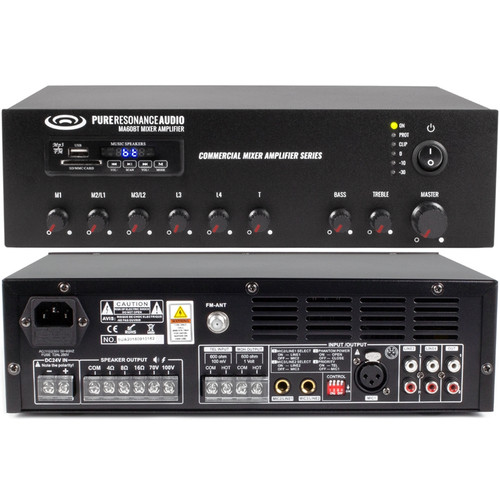

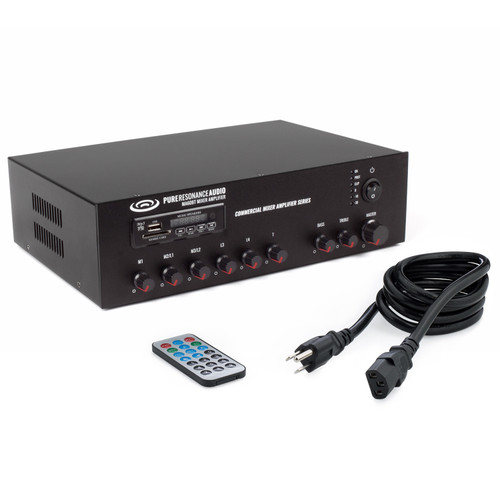

Pure Resonance Audio MA60BT Mixer Amplifier

The Pure Resonance Audio MA60BT 7-channel 60W Bluetooth mixer amplifier provides a reliable and user-friendly solution for commercial sound systems. It supports wireless audio streaming via Bluetooth and includes a built-in MP3 player, FM radio, USB, and SD inputs. With support for 70V, 100V, 8 ohm, and 4 ohm outputs, along with paging and priority features, this compact mixer amplifier is well suited for small retail environments.

Pure Resonance Audio VC100W Decora 70V Commercial Volume Control

The Pure Resonance Audio VC100W 100W decora-style volume control allows convenient local volume adjustment for distributed audio systems. Designed for 25V, 70V, and 100V applications, it provides smooth, reliable attenuation in a clean wall-mounted form factor, making it ideal for commercial retail installations.

System & Component Videos

Biamp MASK2 2.5" Compact Surface Mount 8 Ohm Loudspeakers:

• Speaker type: Full range 2.5" speaker
• Nominal impedance: 8Ω
• Frequency range: 120 - 20,000Hz (without subwoofer)
• Program power: 50 Watts RMS (using a 150 Hz/12 dB/octave highpass filter)
• Recommended amplifier power / channel: 10 - 110 Watts (with matching subwoofer)
• Dimensions H x W x D: 94 x 82 x 108 mm (without mounting bracket)
• Distance from wall: approx 30mm using included brackets
• Accessories (supplied): Mounting bracket, mounting hardware, screws and screw covers



Pure Resonance Audio MA60BT 7-Channel 60W Commercial Mixer Amplifier with Bluetooth:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio and Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 60 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz and 24V DC both operation system



Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control:

• Stylish appearance - Decora-style design includes a white plastic plate with matching knob
• Flexible - The VC100W is perfect for use with a 25V, 70V, or 100V speakers and distributed audio systems
• High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
• Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (6) Biamp MASK2 2.5" Compact Surface Mount 8 Ohm Loudspeakers
• (1) Pure Resonance Audio MA60BT 7-Channel 60W Commercial Mixer Amplifier with Bluetooth
• (1) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control
• (1) West Penn 224 18/2 Non-Plenum Audio Speaker Wire (250ft)
