Inside the Design
This commercial office sound system provides clear, evenly distributed audio for background music, paging, and general workplace communication. Equipped with six Pure Resonance Audio C3 3" micro ceiling speakers, an MA60BT 60W Bluetooth mixer amplifier, and a VC100W 70V wall-mounted volume control, this system combines reliable performance with a discreet, professional appearance. The compact C3 speakers provide clear audio while blending seamlessly into ceilings, while the MA60BT offers flexible audio inputs, Bluetooth streaming, and convenient system control.
Sound System Features:
- Professional 70V commercial audio system designed for background music, paging, and general office audio
- Six compact C3 3" micro ceiling speakers provide clear, evenly distributed sound with a minimal footprint
- Included Easy-Mounting threaded rings provide quick, secure installation in ceiling tiles and other surfaces
- Stylish, low-profile C3 design blends discreetly into ceilings
- MA60BT 60W Bluetooth mixer amplifier provides reliable power and flexible audio control
- Built-in Bluetooth enables wireless music streaming from compatible devices
- 7-channel mixer amplifier includes an MP3 player, FM radio, USB/SD inputs, and IR remote control
- Included VC100W 70V wall-mounted volume control provides convenient local volume adjustment
- Includes IR remote, power cord, and 250' of 18/2 speaker wire for system installation
About the System Components

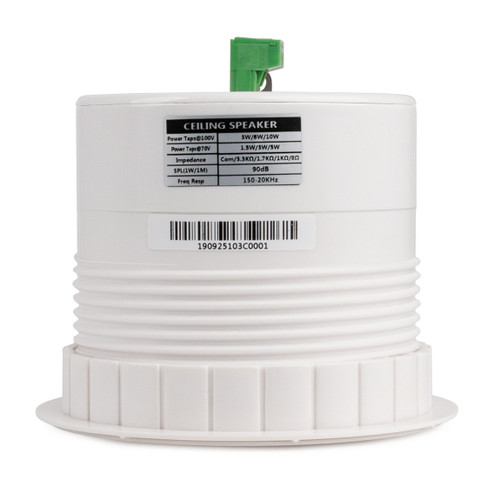

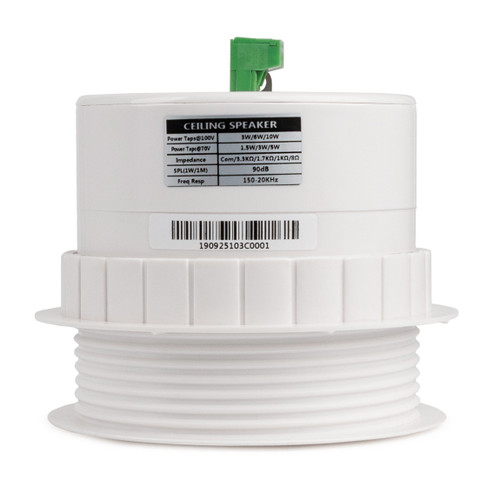

Pure Resonance Audio C3 3" Micro Ceiling Speakers
The Pure Resonance Audio C3 3" micro ceiling speaker provides clear, high-quality sound in an ultra-compact design. Its low-profile appearance blends seamlessly into ceilings while providing wide, even audio coverage for background music and paging. The C3 features selectable 8 ohm and 70V/100V operation and includes a threaded Easy-Mounting ring for quick, secure installation in ceiling tiles, drywall, and other surfaces. Its compact footprint makes it well suited for offices, waiting areas, conference rooms, and other commercial spaces.

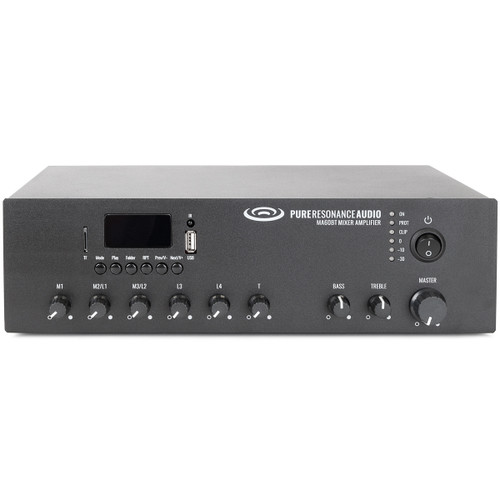

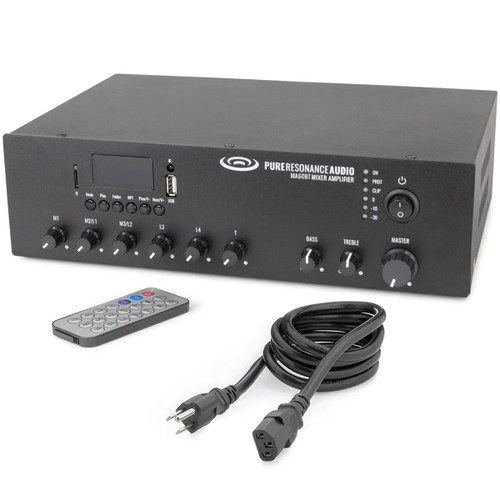

Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier
The Pure Resonance Audio MA60BT is a 60W Bluetooth mixer amplifier designed for commercial background music, paging, and general audio applications. It features 7 input channels, built-in Bluetooth, an MP3 player, FM radio, USB and SD inputs, and flexible audio controls. The included IR remote control provides convenient control of playback, input selection, volume, and other functions from a distance.
Due to the possibility of FM radio interference and other variables involved, FM radio is not recommended as the primary input source.

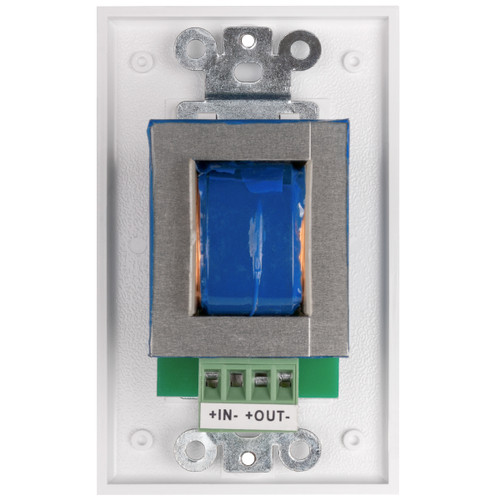

Pure Resonance Audio VC100W 100W 70V Wall-Mounted Volume Control
The Pure Resonance Audio VC100W is a 100W 70V wall-mounted volume control with a clean white Decora-style wall plate and matching knob. Designed for commercial 70V audio systems, it provides convenient local volume adjustment with excellent frequency response and low insertion loss. The removable Phoenix-style screw terminal block features input and output connections that accommodate up to 14 AWG wire. The VC100W mounts in a minimum installation depth of 1.85" and coordinates with standard Decora-style wall plates for a clean, professional appearance.
