This small to medium Tannoy Retail Store Sound System is ideal when you need background music that will add to your customers’ shopping experience and keep them returning. This system can be easily expanded for further coverage and control over separate zones and paging.

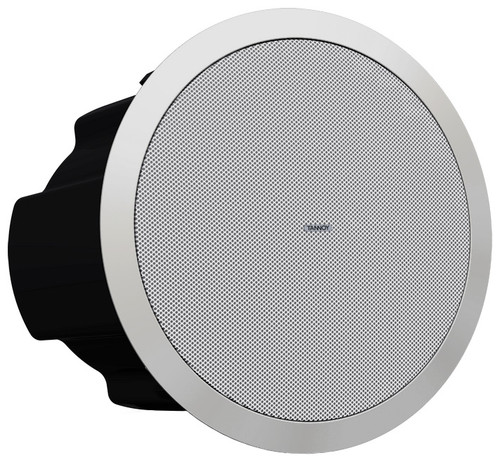

The Tannoy CVS 6 is a 150 mm (6") ceiling speaker supplied with an integral zinc-plated steel back can. The recessed termination box allows the use of a removable locking connector with screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. The drive unit itself is mounted in a vented, injection moulded, paintable front baffle manufactured from UV / weather resistant UL94 V-0 ABS material.

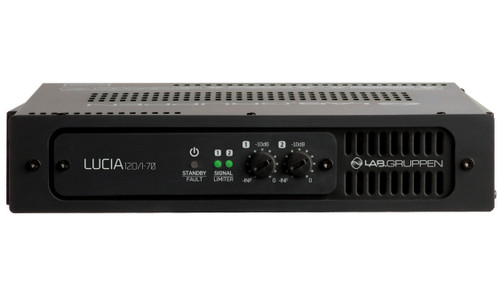

The Lab Gruppen LUCIA 120/1-70 power amplifier incorporates ease of install with 120W of decentralised power in a compact, ENERGY STAR® compliant amplifier.  Combining premium audio performance with extraordinary flexibility, Lab.gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) introduces a decentralized approach to AV systems design. Power, limiting, control and I/O are conveniently placed where needed, offering a cost-efficient and scalable solution that often eliminates the complications and added costs of a centralized equipment room. All LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab.gruppen output stage. This model brings the inherent advantages of the LUCIA concept to a range of constant voltage applications.

The Atlas Sound TSD-MIX31RL 3x1 mic/line mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB / octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback. And the Atlas Sound AAVC-10K Remote Level Control is perfect for use in applications requiring volume control of music or microphone within a room.

Tannoy CVS6 Ceiling Speakers:

• Coaxially mounted 150 mm (6") mineral loaded woofer with rubber surround and 19 mm (0.75") soft dome diffraction loaded tweeter
• High power & high sensitivity with extended frequency response and very low distortion
• Wide, controlled constant directivity dispertion for optimum coverage
• UV/weather resistant UL94 V-0 ABS front baffle
• Easily accessible tapping switch on front baffle
• Low insertion loss 60W line transformer
• Ferrofluid cooled neodymium HF
• Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics

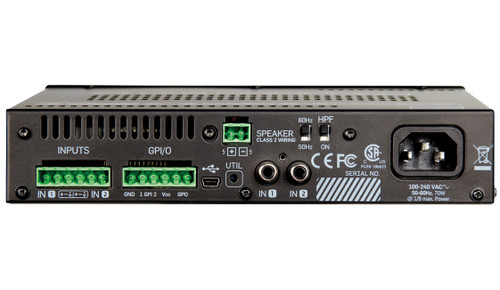

Lab Gruppen LUCIA 120/1-70 Amplifier:

• Designed for constant voltage applications – 1 x 120W into 70V/100V
• Built-in 2x1 matrix – Mix two sources to mono or use for source selection
• Comprehensive DSP features – Per channel presets for high-pass filter, parametric EQ, multi-band compressor, and look-ahead limiter
• Automatic Dynamic Loudness Contouring™ – DSP automatically adapts to optimize performance at any output level
• Optimized presets – Available for specific loudspeaker models
• Configuration software – Windows and Mac software wizard for initial set-up (connection via USB)
• GPIO – Remote control for output level and instant wake from sleep mode as default; other options possible via the configuration software
• Compact form factor – Half-rack, 1U chassis and supplied bracket for flexible mounting
• Efficient Class D amplifier – Patented design for low distortion and minimal heat dissipation
• Fail-safe operation – Comprehensive short circuit, thermal and under-voltage protection
• Intelligent fan control – Silent at idle and extremely quiet at low output levels
• Selectable high-pass filter – Rear switches for ON/OFF and 50 Hz or 80 Hz filter; this is in series with the customizable input and output EQs (which are flat from the factory)
• ENERGY STAR® qualified1 – Conforms to latest energy efficiency standards



Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer:

• Two (2) Balanced Mic/Line Inputs
• High Gain (50dB) Microphone Preamps
• Switchable 24V Phantom Power
• One (1) Unbalanced Summing Dual RCA Line Input
• Vox Sense and Contact Closure Priority Mute of Ch3
• Variable Output Limiter
• Remote Level Control
• 12dB/Octave Low Cut Filter @ 125Hz
• Input Signal & Peak Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections
• Power Supply Sold Separately
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Energy Efficient



Atlas Sound AAVC-10K Remote Level Control:

• 10k ohms Linear Taper Insures Smooth Level Control
• Attractive Decora Style Wall Plate
• Convenient Kit Includes Hardware
• Simple 2 Conductor Wiring

• (4) Tannoy CVS6 Ceiling Speakers
• (1) Lab Gruppen LUCIA 120/1-70 Power Amplifier
• (1) Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer
• (1) Atlas Sound AAVC-10K Remote Level Control
• (1) Atlas Sound TSD-PS24V250MA Power Supply
