Retail Store Sound System with 8 Tannoy CVS In-Ceiling Speakers and JBL Mixer Amplifier

This medium to large Tannoy retail store sound system is ideal when you need background music that will add to your customers’ shopping experience and keep them returning. This system is ideal for small to medium coverage areas and can be easily expanded for further coverage and control over separate zones and paging.

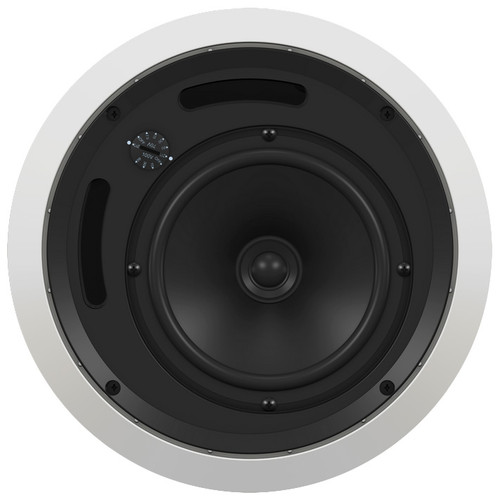

The Tannoy CVS 6 is a 6" (150 mm) ceiling speaker supplied with an integral zinc-plated steel back can. The recessed termination box allows the use of a removable locking connector with screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. The drive unit itself is mounted in a vented, injection molded, paintable front baffle manufactured from UV / weather resistant UL94 V-0 ABS material. An integral low insertion loss 60W line transformer uses an easily accessible front baffle mounted rotary tapping switch to select between low impedance and 70V or 100V operation.

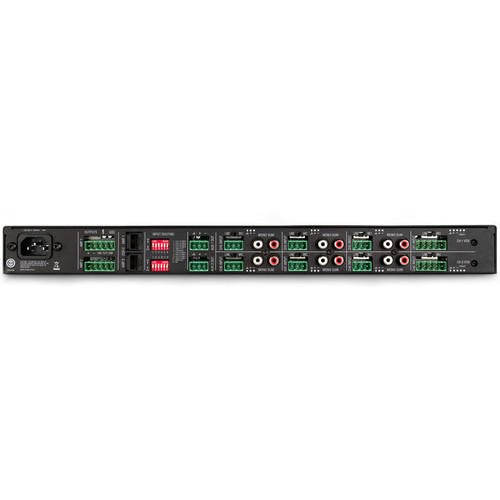

The JBL CSMA 2120 is ideal for commercial and industrial use, with Crown’s high-efficiency DriveCore Technology and HARMAN’s GreenEdge environmentally-conscious manufacturing, they quickly pay for themselves in energy savings. With a sleek industrial look and a clean front panel featuring only volume controls for each channel, they offer you an easy-to-use professional tool with uncompromised performance. All volume controls on the CSMA 2120 are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. This model features a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

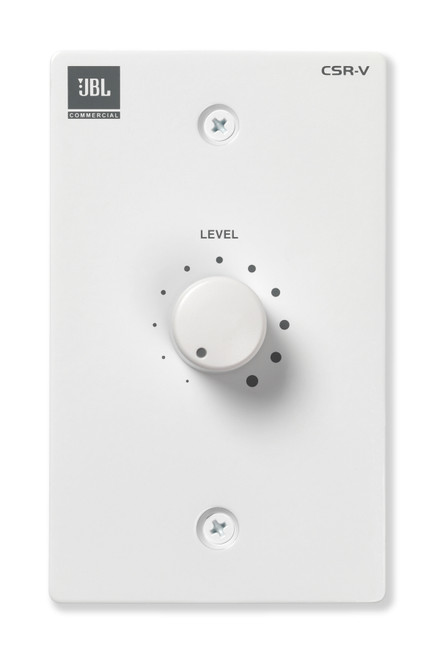

The JBL CSR-V offers source selection and/or volume control from an elegant user interface. The JBL Commercial® CSR series remote control can use analog DC voltage to provide logic control ranging from source selection and volume. The CSR-V remote control allows you to remotely select the source and/or control the volume on the CSM mixer. The CSR-V can be placed up to 1000 ft (305 m) from the mixer and is wired with Cat 5 cable with universally accepted RJ-45 connectors. Using CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer. Available in black or white.

Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Tannoy CVS6 Ceiling Speakers:

• Coaxially mounted 150 mm (6") mineral loaded woofer with rubber surround and 19 mm (0.75") soft dome diffraction loaded tweeter
• High power & high sensitivity with extended frequency response and very low distortion
• Wide, controlled constant directivity dispersion for optimum coverage
• UV/weather resistant UL94 V-0 ABS front baffle
• Easily accessible tapping switch on front baffle
• Low insertion loss 60W line transformer
• Ferrofluid cooled neodymium HF
• Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics



JBL CSMA 2120 Commercial Mixer Amplifier:

• More operating efficiency and reliability by using fewer parts
• Significantly reduced power consumption
• Greater accuracy and best-in-class signal-to-noise performance
• A proprietary hybrid analog-digital integrated circuit
• Conform to lead-free RoHS standards
• Are lighter in weight leading to less freight and reduced emissions
• Require less power and produce less heat
• Include a low-energy powder coat
• Fanless, space-saving 1U design
• Illuminated rings make them easy to see and operate
• Euro-block type mic/line input connectors and output connectors
• Independent bass and treble controls for each output channel
• Supports 70V and 100V distributed audio systems without needing a separate transformer
• Remote volume control capability using JBL
• CSR-V module and standard Ethernet cable
• Priority muting
• Phantom power
• Configurable output routing
• Universal power supply



JBL CSR-V 1-Zone Wall Remote Control:

• 1-Zone volume control
• Equipped with RJ-45 / Cat. 5 connectors
• Up to 1000' (305 m) from CSM device
• For use with all CSMA, CSM, and CSA (Z) models
• Available in black or white

• (8) Tannoy CVS6 Compact 6" Full Range Ceiling Speakers
• (1) JBL CSMA 2120 Commercial Mixer Amplifier
• (2) JBL CSR-V 1-Zone Wall Remote Controls
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
