Inside the Design
This retail store sound system provides clear, intelligible audio for two separate zones. The Pure Resonance Audio C3 pendant speakers can easily integrate into the open-architecture ceiling of your store providing superb audio while the Yamaha VXC4 in-ceiling speakers can cover offices, hallways or bathrooms. Ideal for retail stores, department stores, grocery stores, big box stores, warehouses or any other environments where paging, announcements, or foreground and background sound reinforcement is desired. The Yamaha MA2120 mixer amplifier allows a quick, easy setup and simple intuitive operation, making it easier to bring your commercial space to life. Includes 2 DCP1V4S control panels for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements.
Sound System Features:
- C3 pendant speakers ideal for open ceilings, the down-firing pendant design directs the high fidelity sound for wide evenly distributed coverage
- The VXC4 in-ceiling speakers deliver quintessential Yamaha sound quality with safe and easy installation
- 2-channel mixer amplifier is equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions
- Source and volume zoning capability for two zones in mono connection
- Mixer amp provides quick, easy setup, simple intuitive operation and efficient, flexible performance
- Digital control panels provide remote volume control, microphone on/off switching, or can trigger the built-in chime for announcements
About the System Components

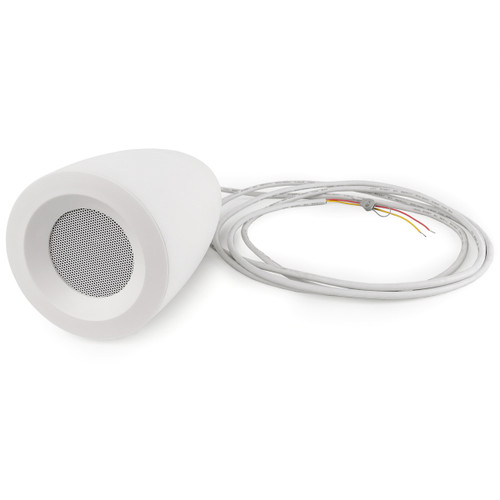

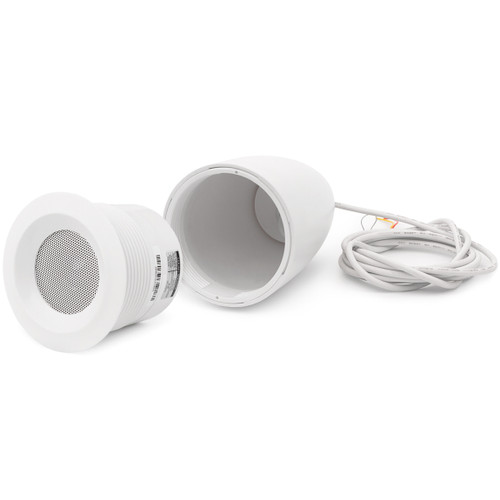

Pure Resonance Audio C3 3" Micro Pendant Speaker Kit
he Pure Resonance Audio C3 3" pendant speaker features a stylish and intelligent design blending seamlessly into exposed open plenum ceilings, raked ceilings, and other contemporary open architectural designs. With 8 Ohm and commercial 70 Volt audio taps and integrated single point mount, the C3 pendant speaker is excellent for sound masking, background music, and paging creating the perfect atmosphere in offices, restaurants, retail stores, resort and hospitality venues, or any other open-architecture high ceiling environments, and other spaces where hanging pendant speakers are required.

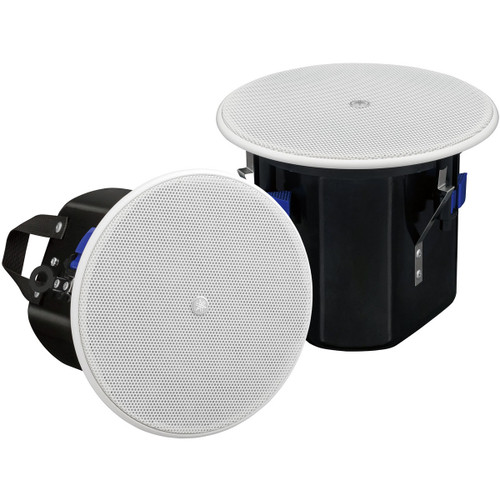

Yamaha VXC4 4" In-Ceiling Loudspeakers
The Yamaha VXC4 speaker offers a versatile lineup for clear consistent sound and are designed to accommodate a growing list of applications in the installation market.

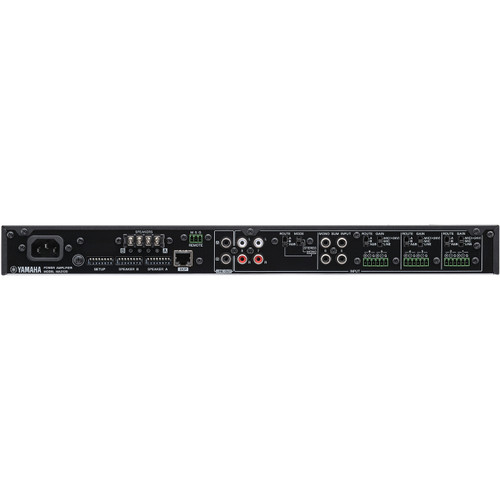

Yamaha MA2120 2-Channel Mixer Amplifier with DSP
The Yamaha MA2120 is a 2-channel mixer amplifier with DSP Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4..., 100W x 2ch @3.../8..., Hi-Z: 120W x 2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high-quality music playback and microphone use. With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers.

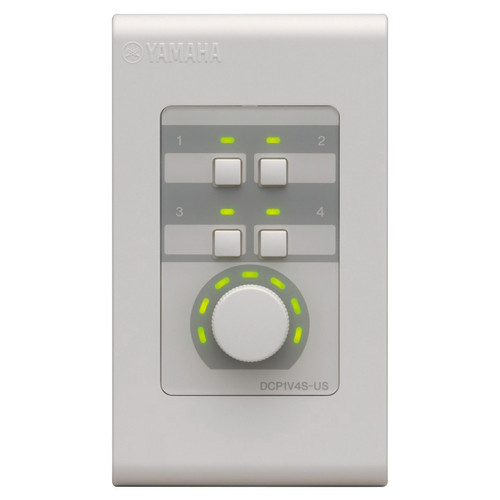

Yamaha DCP1V4S Digital Control Panel
The Yamaha DCP1V4S digital control panel connects to the Yamaha MA2120 mixer amplifier for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback.
