Inside the Design
A background music sound system is an essential part of a retail store creating an atmosphere that will engage customers. This easy to use retail store sound system features eight high performance Yorkville C165W 6.5" ceiling speakers ideal for background music and paging. The Yamaha MA2120 2-channel mixer amplifier with DSP is a simple, yet powerful tool that offers efficient and flexible performance over 2 different zones. The Yamaha DCP1V4S remote volume controls offer microphone on/off switching and triggers the built-in chime for announcements.
Sound System Features:
- 6.5" 60W high performance in-ceiling speakers maintain excellent performance from a compact ceiling loudspeaker providing superior sound quality
- High fidelity full-range sound can be achieved over an extremely wide coverage pattern area
- 2-channel mixer amplifier is equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions
- Source and volume zoning capability for two zones in mono connection
- Mixer amp provides quick, easy setup, simple intuitive operation and efficient, flexible performance
- Digital control panels provide remote volume control, microphone on/off switching, or can trigger the built-in chime for announcements
- DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback
About the System Components
Yorkville C165W 6.5" 60W In-Ceiling Speaker
The Yorkville C165W Coliseum Mini Series 6.5" in-ceiling speaker is a 60W high performance ceiling mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant/retail environments.

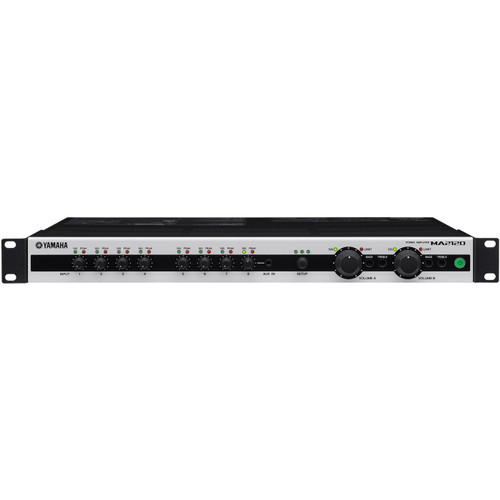

Yamaha MA2120 2-Channel Mixer Amplifier with DSP
The Yamaha MA2120 is a 2-channel mixer amplifier with DSP Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4..., 100W x 2ch @3.../8..., Hi-Z: 120W x 2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high-quality music playback and microphone use. With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers.

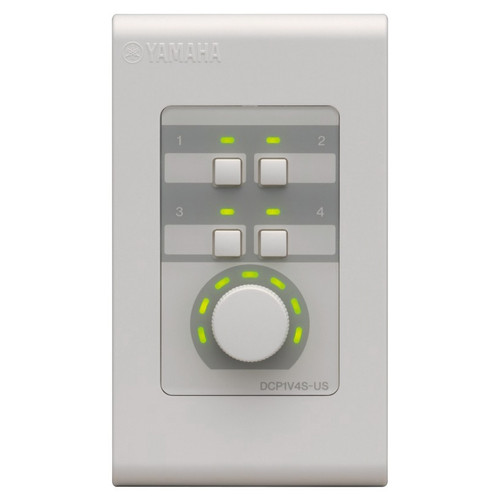

Yamaha DCP1V4S Digital Control Panel
The Yamaha DCP1V4S digital control panel connects to the Yamaha MA2120 mixer amplifier for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback.
