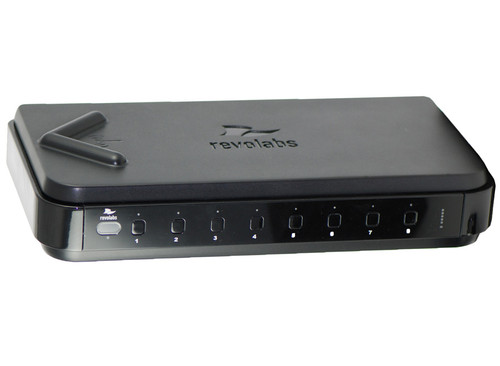

Revolabs Fusion 8 Channel Plug and Play Teleconferencing System (Discontinued)
Usually arrives in 5-9 business days.
The Revolabs Fusion™ 31G is the complete wireless audio solution for medium to large size conference rooms where installed audio equipment is not available. With this wireless solution, Enterprise users can finally move around their conference room, and still be heard!
As a GSA listed manufacturer, Revolabs Fusion™ is the complete wireless audio solution for mid- to- large -size conference rooms where installed audio equipment is not available. Revolabs Fusion combines the wireless receiver for the microphones with a digital signal processor, audio mixer, and Acoustic Echo Cancellation and Noise Reduction technology.
Revolabs Fusion provides all the connectors required for connectivity between speakers or amplifies in the room. Revolabs Fusion can also be directly connected to most major video conferencing solutions in the field, such as Lifesize, Polycom, Sony and Tandberg, making it the ideal wireless unified communication solution for conference rooms.
The Revolabs Fusion comes in a four or an eight microphone version, making it versatile to cover the audio needs of mid to large-size conference rooms.
To enable telephone conferences, Revolabs Fusion includes a telephone line-in connector that plugs in directly to a telephone network as a conference phone. It also provides a telephone set connection, allowing users to plug a desktop phone in for non-speaker calls. The Revolabs Fusion wireless dialer enables users to set up calls from anywhere in the conference room.
All wireless communication between the microphones and the Revolabs Fusion is digitally encrypted using 128-bit encryption technology, securing the communication and preventing unwanted listeners from listening in.
Rechargeable batteries in the microphones, which provide up to eight hours of talk time with a two-hour recharge time. With this wireless solution, Enterprise users can finally move around their conference room, and still be heard!
| Audio | |
|---|---|
| Channels | 4 channels per system |
| Radio Frequency | North and South America: 1920 to 1930 MHz |
| Range | 100 ft (30 m) approx. (no obstruction) Out-of-range alarm |
| Bandwidth | 100-6,800 Hz |
| Base Station | |
| Power | 24V DC, 2.5A locking power connector Power supply included; 100-240V, 50-60 Hz |
| Connectors/Interfaces | IR Remote Serial DB9 Sensor Audio Control RJ45 - firmware updates only Telephone Line/Telephone Set-In RJ11 Network RJ45 - firmware updates only Mic Level XLR male conference out Aux In/ Aux Out line level RCA Plug Record Out/Room Out line level RCA Plug Conference In/ Conference Out line level RCA Plug |
| Charger Base | |
| Power | 5V DC, 2A 100-240V, 50-60 Hz |
| Connectors | 4 proprietary 4 pin microphone charge jacks |

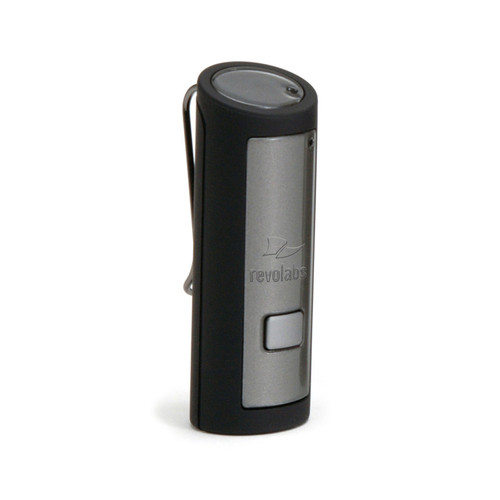

| Microphones | |
| Battery | Lithium Polymer |
| Talk Time | Up to 8 hours |
| Charge Time | 2 hours |
| Encryption | 128-bit proprietary (per microphone channel) |
| RF Shield | No cell phone interference due to RF Armor™ technology |
| Mute Button | For muting and pairing |
| LED Indicator | For mute status, pairing, and battery charge |
| Audio Out Port | 2.5 mm unbalanced for earpiece |
| Power/Charging Port | Revolabs proprietary 4 pin |
