RF Venue DFIN Diversity Fin Antenna with Cover Multi-Purpose Antenna for Wireless Microphones
Usually arrives in 5-9 business days.
The DFIN-IPXWDISTRO4 is a professional 4-channel wireless microphone upgrade pack designed to enhance RF performance and simplify system deployment in demanding live sound environments. Finished in white for clean visual integration, it combines the rugged Diversity Fin IPX directional antenna with the high-performance DISTRO4 antenna distribution system and premium WRG8X coaxial cabling.

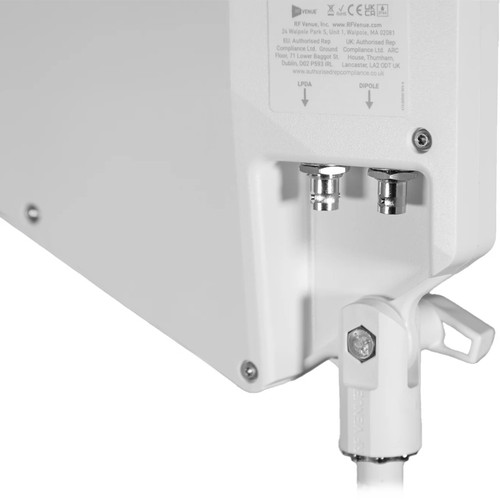

At the core of the system is the IPX-rated Diversity Fin antenna, featuring a patented cross-polarized design that replaces traditional dual paddle antennas with a single high-efficiency unit. Engineered for improved RF stability and reduced multi-path interference, it delivers consistent wireless microphone performance in both indoor and outdoor applications.
The bundle includes the DISTRO4 antenna distribution system, two 25-foot WRG8X coaxial cables, two spare dipole antennas, a dipole storage case, and a threaded EU adapter. With a 50-ohm system impedance and professional-grade components, this upgrade pack provides a complete and reliable solution for multi-channel wireless microphone systems.
| DISTRO4 | |
|---|---|
| Frequency Range | 470 - 952 MHz |
| RF Output Level (Gain) | 3 dB (±2 dB) |
| Cascade Output Level | 0 dB ~ +2 dB |
| Output Connection Isolation | ≥25 dB |
| Impedance | 50Ω |
| Power Consumption | 60W |
| Input AC Voltage | 100~240V switching |
| Dimensions (H x W x D) | 1.8" (45 mm) x 18.9" (480 mm) x 9.8" (250 mm) |
| Weight | 4.7 lbs (2.15 kg) |
| DFIN-IPXW | |
| Operating Frequency | 470 - 928 MHz |
| Weather Rating | IP44 (Weather-resistant) |
| Connector Type | Downward-facing BNC-F (50 ohm) |
| Polarization | Cross-Linear (Vertical & Horizontal) |
| Impedance | 50 ohm |
| Finish | Matte White |
| WRG8X25 | |
| Impedance | 50 ohm |
| Connector Type | BNC (factory terminated, if applicable) |
| Construction | Flexible, heavy-duty coaxial construction |
| Shielding | High-density braided shielding for RF protection |
| Color | White |
| Length | 25 feet |
