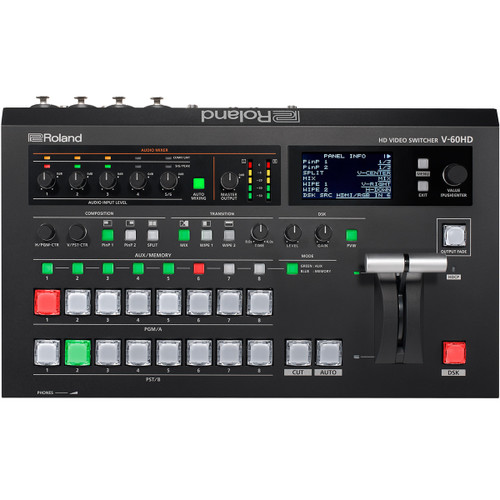

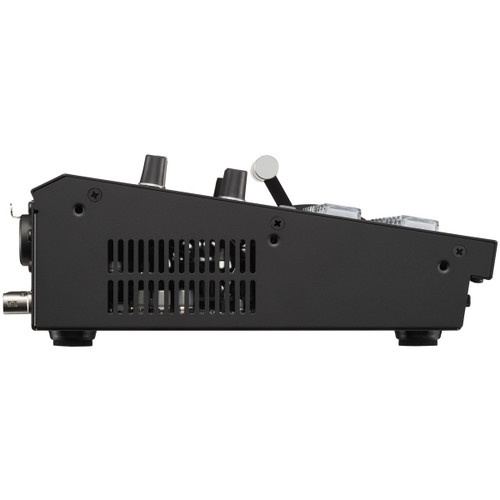

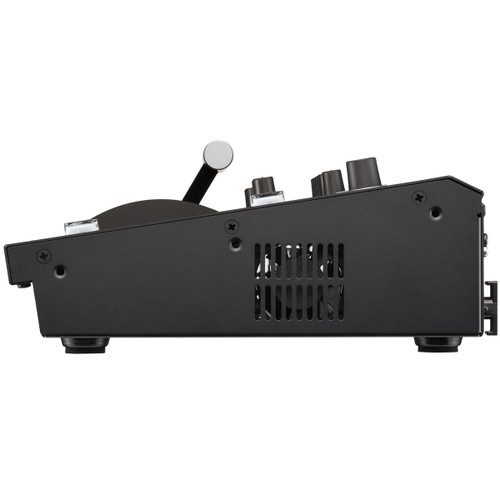

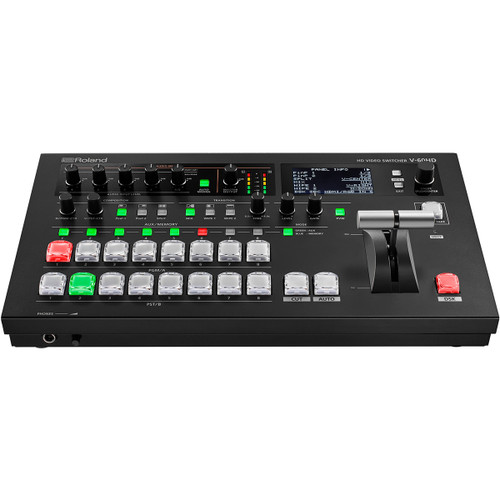

Roland V-60HD Plug-N-Play Production Switcher with Audio for Live Event and Production Applications
Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.
| Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
|---|---|
| Input Connectors | SDI IN 1--4: BNC type x 4 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI IN 5--6: HDMI type A x 2 HDCP Supported Multi-format Supported RGB/COMPONENT IN 6: HD DB-15 type x 1 INPUT 6: HDMI or RGB/COMPONENT selected Multi-format Supported |
| Output Connectors | SDI OUT 1--2: BNC type x 2 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI OUT 1--2: HDMI type A x 2 HDMI MULTI-VIEW: HDMI type A x 1 HDCP Supported |
| Input Formats | SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) The input interlaced video signal is converted to progressive video signal by internal processing The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50) HDMI IN 5: HDMI/RGB/COMPONENT IN 6: 480/59.94i, 576/50i, 480/59.94p, 576/50p 720/59.94p, 720/50p, 1 |
| Still Image | Windows(R) Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed It can be stored up to 2 files in the internal memory |
| Output Formats | SDI OUT 1--2: Conforms to SMPTE 296M, 274M HDMI OUT 1--2: 720/59.94p, 720/50p (SYSTEM FORMAT = 720p) 1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i) 1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p) The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50) |
| HDMI Multi-View | 1080/59.94p, 1080/50p |
| Video Effects | Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key) Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output |
| Audio Processing | Sampling rate: 24 bits/48 kHz |
| Audio Formats | SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M) SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M) HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch |
| Input Connectors | Digital: SDI IN 1--4: BNC tyep x 4 HDMI IN 5--6 (HDMI Type A 19 pins) x 2 Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power AUDIO IN 5--6: RCA phono type |
| Phantom Power | DC 48 V (unloaded maximum), 10 mA (maximum load) Current value per channel |
| Output Connectors | Digital: SDI OUT 1--2: BNC type x 2 HDMI OUT 1--2: HDMI type A x 2 HDMI MULTI-VIEW: HDMI type A x 1 Analog: AUDIO OUT: XLR type AUDIO OUT: RCA phono type PHONES: Stereo 1/4-inch phone type |
| Input Level | AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu) AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu) |
| Input Impedance | AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu) AUDIO IN 5--6: 15 k ohms |
| Output Level | AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu) AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms) |
| Output Impedance | AUDIO OUT (XLR): 600 ohms AUDIO OUT (RCA): 1 k ohm PHONES: 10 ohms |
| Audio Effects | Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter |
| Other Connectors | USB: USB A type (for USB memory) TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8) RS-232: DB-9 type (Male) *for Remote Control LAN: RJ45 100BASE-TX *for Remote Control |
| Other Functions | MEMORY (8 types) Panel lock function EDID Emulator Smart Tally |
| Display | Graphic LCD: 128 x 64 dots |
| Power Supply | AC Adaptor |
| Current Draw | 3.1 A |
| Power Consumption | 37.0 W |
| Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
| Accessories | Owner's Manual AC adaptor Power cord |
| Dimensions (H x W x D) | 3.78" (96 mm) x 14.02" (356 mm) x 8.7" (221 mm) |
| Weight (excluding AC adaptor) | 6.6 lbs (3 kg) |
