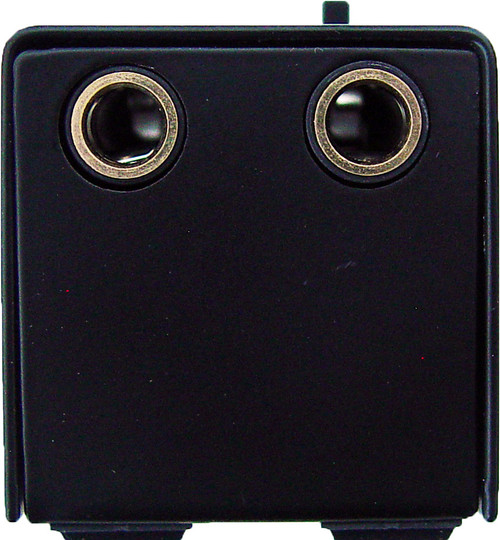

Rolls ADB2 Phantom Direct Box (Discontinued)
Rolls ADB2 Phantom Direct Box (Discontinued)
Rolls ADB2 Phantom Direct Box (Discontinued)
By Rolls Audio

Rolls ADB2 Phantom Direct Box (Discontinued)

Write a Review
Part #:
ADB2
Model #:
ADB2
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The ADB2 is powered by standard microphone phantom power from 9-48 VDC and uses a discrete low-noise differential driver to make it very quiet.

Description

The ADB2 is powered by standard microphone phantom power from 9-48 VDC and uses a discrete low-noise differential driver to make it very quiet. The ADB2 has two 1/4" Input jacks wired in parallel, a male XLR Output and a 3 position attenuator and ground lift switches.

Features
  • Uses standard 9 - 48 volt phantom power for supply.
  • Ground Lift for "hum" reduction.
  • Attenuator switch for connection to line level or speaker level signals.

Specifications
Input -10 to +40 dB unbal
Output -10 to +2 dB bal XLR pin 2 +
Bandwidth 1 - 50 kHz
S/N Ratio 100 dB
Attenuator 0 dB, 20 dB, 40 dB
Connectors 2 ea: 1/4" unbal., XLR Male
Power 9 - 48 VDC, Phantom Power required
Size 2.00" (5.08 cm) x 3.50" (8.89 cm) x 1.23" (3.12 cm)
Shipping Weight 2.75 lbs (1.25 kg)
