Rolls DB14 AV Presenter Stereo Patch Box

Rolls DB14 AV Presenter Stereo Patch Box

Name: Rolls DB14 AV Presenter Stereo Patch Box
Brand: Rolls Audio
SKU: ROLLS-DB14b
Price: 69 USD
Availability: InStock

Write a Review

Part #:

DB14b

Model #:

DB14b

Current Stock:

MSRP: $89.00

$69.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

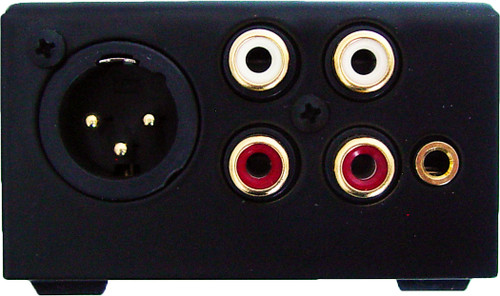

The Rolls DB14b is a special purpose direct box for applications where a stereo source signal can be separated, and individual volume controls used for each track.

Description

The Rolls DB14b provides a summed XLR output four uses such as an AV presentation from a laptop computer, or a rehearsing choir to a music track. Hum elimination is also included with the ground lift switch. It has stereo RCA and 1/8" inputs, 2 volume controls, RCA and XLR outputs, and uses no power.

Features

Splits Stereo RCA and stereo 1/8" (3.5mm) signals.
Individual Right and Left level controls.
Transformer balanced XLR mono output.
Hum elimination/ground lift switch.

Specifications

Max Input Level	+20 dB
Max Output Level	+20dB RCA, 0 dB XLR
Frequency Response	(Low Z) 50 Hz to 16 kHz
Dimensions(H x W x D)	2" (5.08 cm) x 3.5" (8.89 cm) x 1.25" (3.18 cm)
Weight	1 lbs (.45 kg)
