The Rolls RM85 is an 8 channel two zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. Four stereo source inputs, including a front panel 3.5 mm input. Master Output Level control for each channel, low noise, efficient operation, all in a single rack space.

Description

Rolls RM85 Mic/Line Mixer with 4 XLR Balanced Inputs and 4 Stereo Source Inputs

The Rolls Audio RM85 is an 8-channel two-zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. All 8 channels can be sent to the two XLR outputs in three configurations; A, B or both A+B. The separate A and B outputs are XLR, and either can be selected to be Line or Microphone level output. Channel 8 also has a stereo 3.5mm (1/8") input on the front of the RM85.

Features
  • Four XLR balanced inputs with +48 V phantom power
  • Four stereo Source inputs, including a front panel 3.5 mm input
  • Master Output Level control for each channel
  • Low noise, efficient operation
  • All in a single rack space

Specifications
Input Impedance Mic: 600 ohms XLR balanced
Line: 22K ohms RCA
Max Input Level Mic: -14 dBV Mic level
Line: +24 dBV
Total Input Connectors 4: XLR, 4: Stereo 1/4", 1: 3.5 mm
Phantom Power +48 VDC
RCA Output Level +17 dBV max (impedance 1K ohm)
Max Gain Mic: 70 dB
Source: 30 dB
Noise Floor - 80 dB, THD:
S/N Ratio 96 dB
Voltage Gain 32 dB
Nominal Supply Voltage 15 VDC
Bandwidth 20 Hz - 25 kHz
Power Supply Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE
Dimensions (H x W x D) 19" (483 mm) x 1.75" (450 mm) x 4" (100 mm)
Weight 7 lbs (2.3 kg)

DOCUMENTS

Related Products

Sold Out

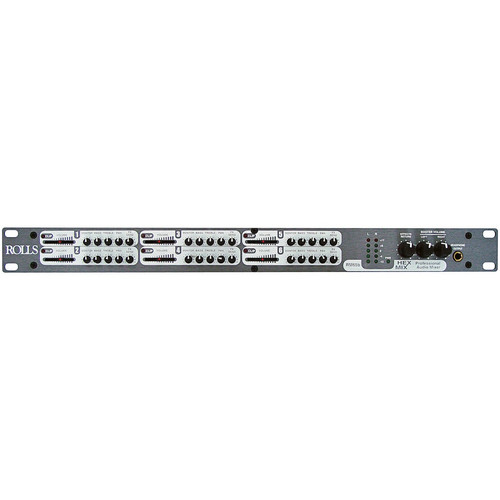

Rolls RM65b HexMix 6 x 4 6-Channel Console Mixer (Discontinued) Rolls RM65b HexMix 6 x 4 6-Channel Console Mixer (Discontinued)
