Rolls PM50se Personal Monitor Amplifier

Description

Rolls PM50se Personal Monitor Amplifier

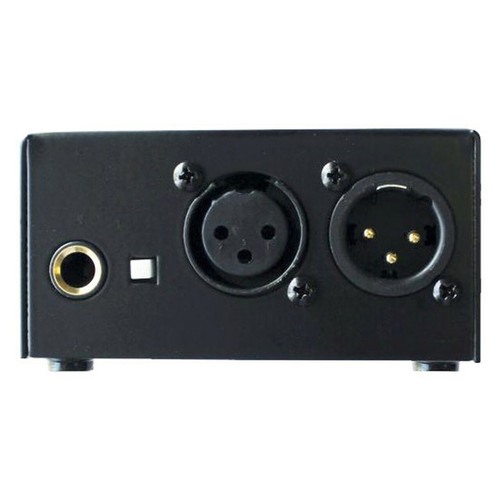

The PM50se mixes a stereo or mono line-level Monitor signal with a microphone or line level XLR signal to a set of headphones. It has a monitor level control, mic/XLR level control, mic/line pass through XLR jack, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, podcast, recording or many other applications. The power adapter is included.

Features

• Mic or Line Level XLR input
• XLR Mic or Line Pass Thru
• Ground Lift on XLR Thru
• Mono or Stereo 1/4" Monitor Input
• 1/4" and 1/8" Phone Outputs

Specifications

Inputs	-20 dB max XLR 1K balanced, 20 dB monitor
Outputs	1/4", and 1/8" (3.5 mm) 8 ohm or greater
Gain	20 dB 1/4", 50 dB XLR
Frequency Response	3Hz to 100kHz
S/N Ratio	90 dB
Dimensions (H x W x D)	1.25" (31.75 mm) x 2.5" (63.5 mm) x 3" (76.2 mm)
Weight	1 lb (0.45 kg)

DOCUMENTS

In the Box

• (1) PM50se
• (1) 15V Power Supply PN PS27s
