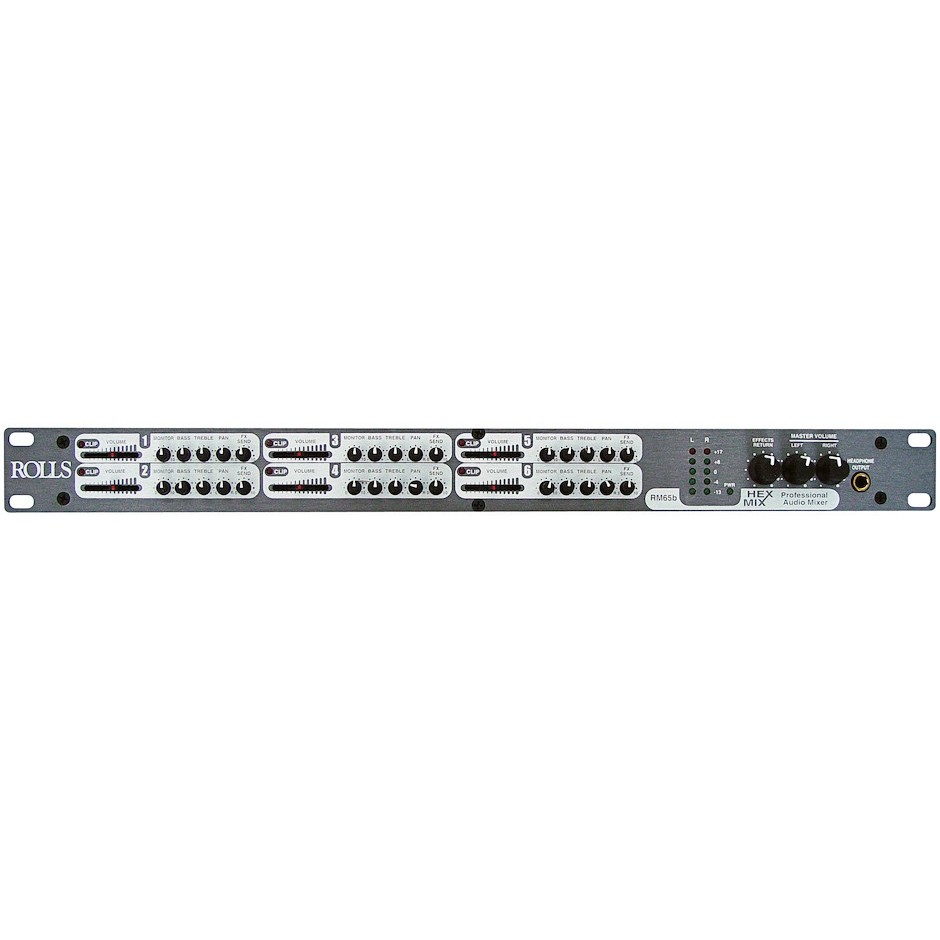

Rolls RM65b HexMix 6 x 4 6-Channel Console Mixer (Discontinued)

Description

Details

The RM65b HexMix is a single rack space unit featuring 6 channels of audio mixing, each with an XLR Microphone Input and 1/4" unbalanced Line Input. A unique feature of the 1/4" line inputs is they may be internally reconfigured to operate as Inserts for the Microphone Input. Each channel, in addition to its Level control, also features a Clip LED, Monitor Send control, Effects Send control, and Bass and Treble controls. Each Microphone input has switchable 36 volts of phantom power, and a rear panel Trim control.

Features

Features

Full function 6 channel console mixer in 1 rack space
6: XLR Mic inputs and 6: 1/4" Line input jacks
Line Inputs are reconfigurable as Insert jacks
36 Volt Phantom Power
Individual phantom power switches for each XLR
Input gain trim control for each mic input
Clip indicators for each channel
Front panel Headphone Output
Monitor, effects send and Pan pots on each channel
Mono Send, Stereo Return effects loop
Treble and Bass tone controls for each channel
R & L Master volumes and FX Return master channel
Standard 19" x 1.75 EIA rack chassis
External power supply for elimination of transformer noise

Specification

Input Impedance	20K Ohms balanced10K Ohms unbalanced (1/4")
Output Impedance	50 OhmsTRS Balanced
Max Input Level	+10 dBV XLR, +10 dBV 1/4"
Phase Shift	< 10 deg. 20 Hz - 20 kHz
Input Connectors	XLR and 1/4"
Phantom Power	36 Volts DC
Outputs	1/4" main balanced +17 dB max, 1/4" monitor +17 dB max, 1/4" FX send, 1/4" TRS Stereo Headphone
Max Gain: (Mains)	60 dB bal/unbal
(Monitor)	55 dB
Tone Controls	12 dB treb, bass cut/boost, 1K Hz center
Max S/N Ratio	106 dB
THD	< .003%
IMD (SMPTE)	< .003%
CMRR	80 dB
Power	AC adapter 12 VAC (Rolls PS12)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 6.5" (165 mm)
Weight	4.6 lbs (2.09 kg)
