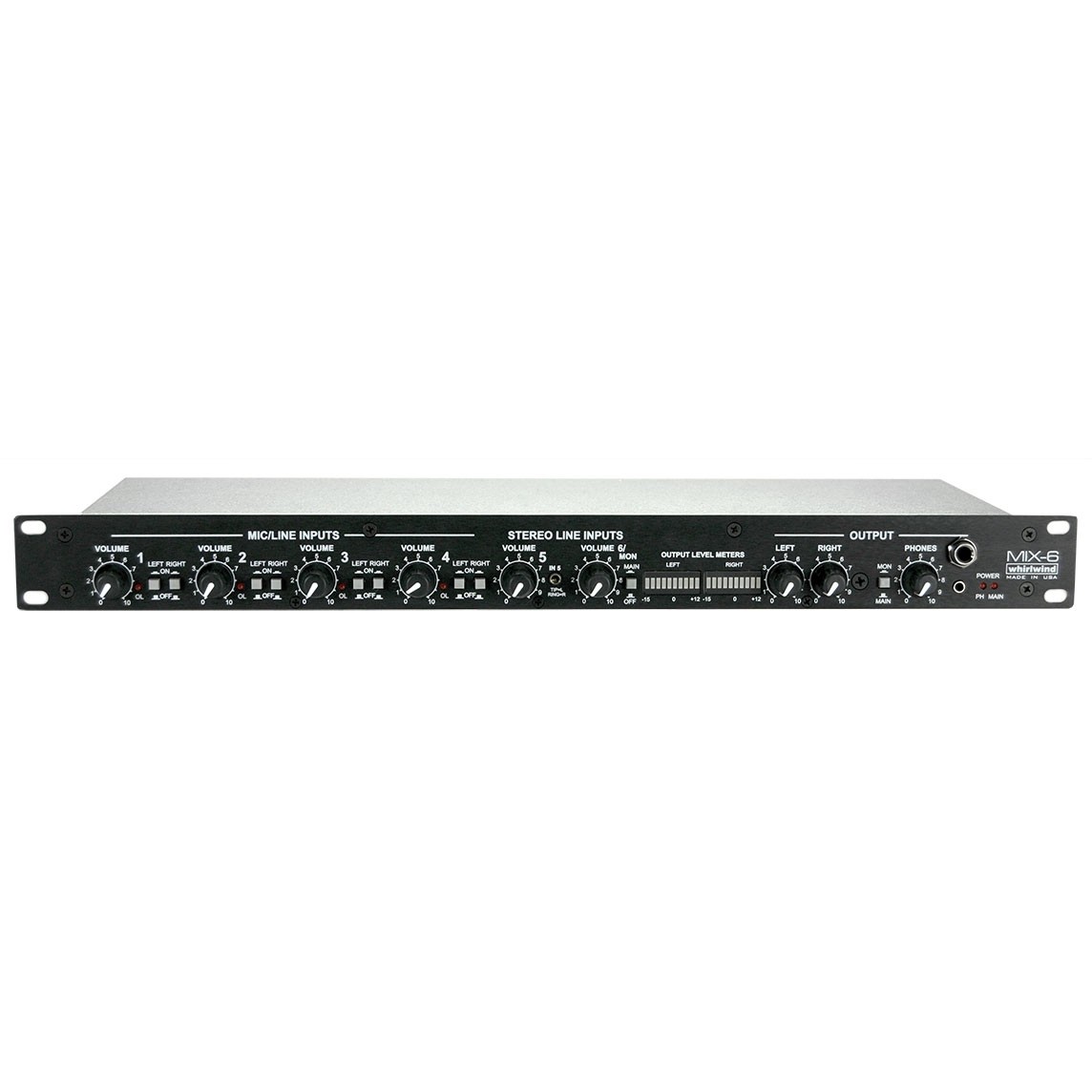

The Whirlwind Mix 6 is a six-channel, broadcast-quality analog mixer with four mic or line input channels and two stereo aux line inputs. The Mix 6 delivers the ultimate in sonic performance for the most demanding professional mic and line mixing applications.

Description

The Whirlwind Mix 6 is a six-channel, broadcast-quality analog mixer with four mic or line input channels and two stereo aux line inputs. The Mix 6 delivers the ultimate in sonic performance for the most demanding professional mic and line mixing applications. The Mix 6 can provide up to 70 dB of gain, with professional quality signal to noise ratio and still have 10 to 15 dB of headroom, making it ideally suited for production with digital recording media. Features include two stereo aux inputs, one of which can be used as a separate monitor input, built-in low cut filters when using the mic settings and a headphone circuit. With a full complement of hook-up hardware, the Mix 6 is capable of handling any configuration of line or mic level signals as well as any combination of balanced or unbalanced XLR and 1/4" connectors.

Specifications

Frequency Response (Line) Unity Gain ±1 dBV 20 Hz - 20 kHz
Frequency Response (Mic) 40 dB Gain ±1 dBV 125 Hz - 20 kHz
THO+N Line Mode Unity Gain
THO+N Mic Mode 40dB Gain
Equivalent Input Noise -120 dBV
Total Gain 72 dBV
Gain of Microphone Preamp Mic switch +32 dBV; 20 dBV on pot
Range of Input and Output Pots -56 to +20 dBV
Common Mode Rejection of Input (Mic) >85 dB at 60 Hz
Maximum Input Level Line +21 dBV; Mic -11 dBV
Low Frequency Filter (Mic Mode) 24 dB per octave at 120 Hz
Phantom Power 48 VDC
Input Impedance Mic 1.5 kOhms; Line 8.7 kOhms
Channel Isolation 75 dB
Maximum Output Level +26 dBV balanced
Output Impedance 200 Ohms balanced; 100 Ohms each leg
Noise at Unity Gain (Line) -92 dBV
Noise at 40 dB Gain (Mic) -80 dBV
Clip LED Threshold +19 dBV
Minimum Headphone Impedance 30 Ohms
Maximum Headphone Output Level 6.5 dBm; 1.6 VAC rms at 30 Ohms
Power Consumption .2 Amps AC at 120 VAC max
.11 Amps AC at 120 VAC min
Power Requirements 120 VAC 60 Hz US model
230 VAC 50 Hz Export model
Internal Mains Fuse .25 Amp Slo-blo type 3AG US model
.125 Amp Slo-blo 3AG Export model
AC Dropout Voltage 105 VAC max load; 99 VAC min load
Dimensions (H x W x D) 1.75" (44.45 mm) x 19" (482.6 mm) x 6" (152.4 mm)
Weight 5.3 lbs (2.4 kg)
Shipping Weight 7 lbs (3.2 kg)
