Inside the Design

This sanctuary audio system combines the 360° crystal-clear audio coverage of the SD5 with the power of the RMA350BT. This mixer amplifier features simple Bluetooth connectivity and 350 watts of high-performance Class H power in a lightweight, space-saving design. The RMA also has overload level light indicators on the front of the unit that provide valuable short circuit, overload, and overheating protection by alerting you to potential issues. With the RMA's forced air-cooling fan, you can rest assured that this system can handle what you throw at it.

Sound System Features:

• 360° x 180° Coverage: Perfect for the spoken word, our proprietary speaker design produces amazing vocal intelligibility and uniform coverage made possible by a dramatically lower crossover point
• Crystal Clear Sound: The powerful 3" tweeter design works in perfect harmony with the three 5.25" speakers to produce accurate vocals and crystal clear uncolored music reproduction
• Drop-Tile Ceiling Speaker: The SD5 fits perfectly into any standard 2'x2' or 2'x4 ceiling tile grids, providing an amazing 360 degrees of hemispheric sound
• Bluetooth-Enabled: The RMA350BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth wireless connection
• Emergency Feature: In the event of an emergency, you can quickly use the emergency input to stop all other audio transmissions. This input takes priority letting any integrated emergency voice alarm system be heard loud and clear

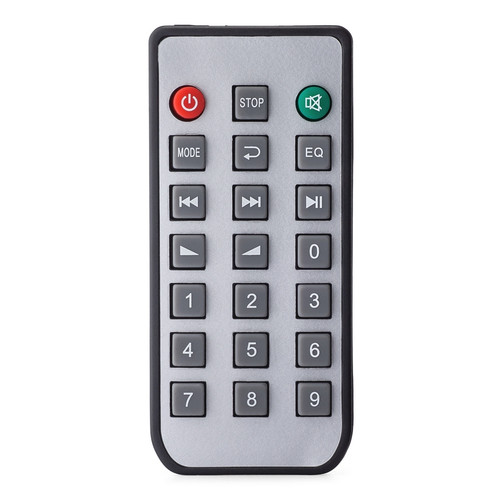

• Remote Control: The included remote control manages volume levels, play/pause, skip and more all from a distance


The SD5's array of custom-engineered drivers works in perfect harmony with its powerful tweeter design to reduce frequency cancellation and provide crystal clear sound, giving this system better audio coverage and response than most loudspeaker systems.

In the case of an emergency, you don’t need to worry about switching off your audio or adjusting volume and inputs. The amplifier includes an emergency input, which stops all other audio transmissions and allows emergency voice alarm systems to be heard loud and clear, so your congregation and staff can respond to emergencies efficiently and safely.

About the System Components

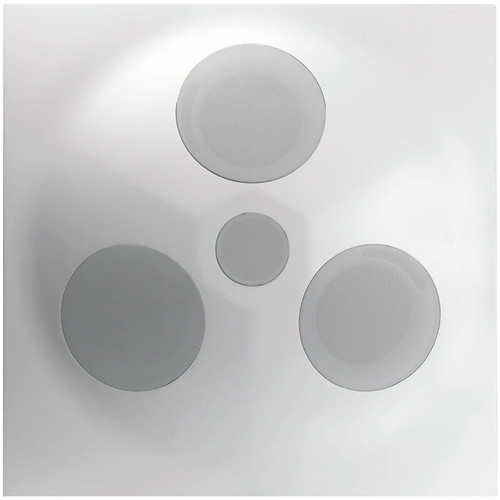

This church sanctuary sound system includes 6 of our 2'x2' SD5 SuperDispersion® ceiling speaker arrays with 360° of crystal-clear audio coverage, each featuring three 5.25" drivers and a 3" tweeter in a thin and lightweight design that is simple to install. Also included is our RMA350BT 350 watt Bluetooth rackmount mixer amplifier featuring a 4-16Ω/70V distributed audio speaker output, 2 AUX inputs, 4 MIC inputs, USB input, SD card slot, and emergency channel input. The RMA mixer amplifier also comes with an IR remote to control the unit from a distance. This house of worship sound system package is the ideal audio solution for any church sanctuary, chapel, synagogue, mosque, temple, or any other religious meeting place requiring powerful 360° audio coverage.

Not sure if this is the right Church Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays:

• Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
• Powerful proprietary tweeter design with a lower crossover point improves vocal performance
• Wave guided housing directs sound where it needs to go
• Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction

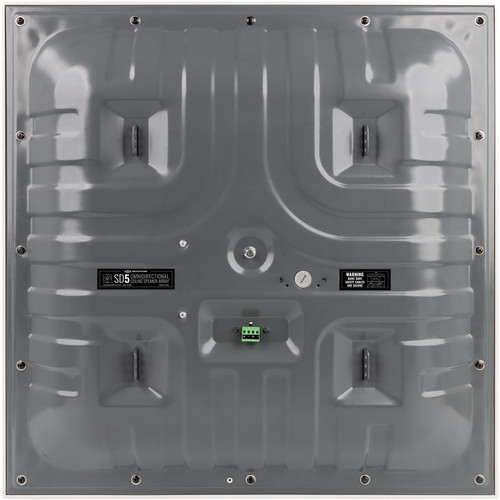

• Low profile metal back-box comes with built-in safety suspension points
• Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
• Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
• Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

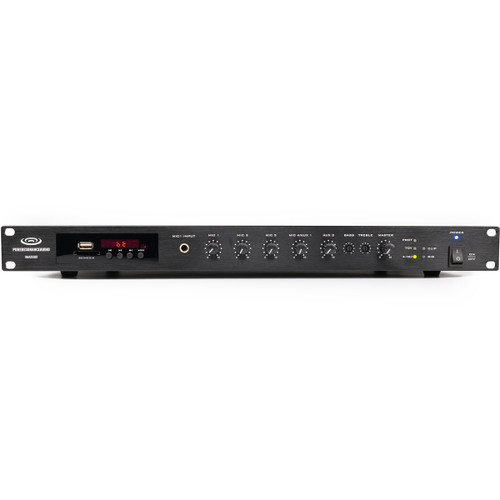

Pure Resonance Audio RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier:

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, SD, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 350W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control

• (6) Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Arrays
• (6) Safety Cable Kits: (24) Steel Safety Cables, (24) Carabiners and (24) Fastlinks

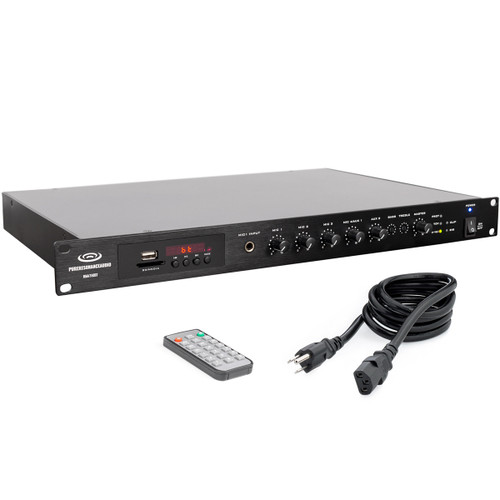

• (1) Pure Resonance Audio RMA350BT 350W Commercial Bluetooth Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
