The Personal PA® Value Pack System broadcasts a speaker's voice, music program, or audio service wirelessly up to 1000 feet to a listening audience. Participants using the (included) PPA Select single-channel receiver with a headset can listen to the broadcast at the volume of their comfort. The cornerstone of the Value Pack System is the T27 transmitter, featuring an LED display panel and push-button channel selection for easy operation. This System has 17 available channels and operates on 72-76 MHz. This system complies with 2010 ADA guidelines for hearing assistance and is covered by a Lifetime PLUS Limited Warranty.
NOTE: The Personal PA Value Pack System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation. Disclaimer: FCC rules limit use of this equipment to auditory assistance.

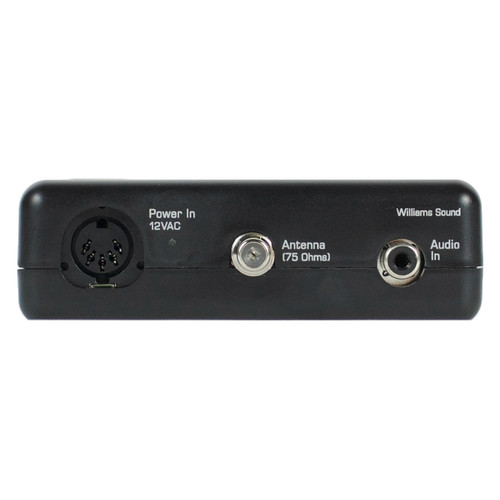

| PPA T27 Transmitter | |
|---|---|
| Power | 105-130 VAC, 50-60 Hz, 3.2 Wat 120 VAC |
| Operating Frequency | 17 Channels |
| Frequency Selector | External switches, 17 channels (lockable) |
| Modulation | FM, 75 kHz deviation (wide–band) max |
| Stability | ± .005% over 0-50°C |
| Pre-Emphasis | 75 μS |
| Frequency Response | 85Hz - 14kHz ±3dB |
| Distortion | 1% Max. THD |
| Signal to Noise Ratio | 65 dB with PPA R37 Receiver |
| Microphone Input | 3.5 mm mini phone jack,supplies +DC for electret mics |
| Mic Input Level | 1–10 mV, nominal |
| Line-Level Input | RCA Jack, Hi Z, unbal |
| Line Input Level | 0.1–1 Vrms, nominal |
| Input Attenuator | Pot, screwdriver-adjustable |
| Antenna Outputs | Thread mount for ANT 021 "rubber duckie" antenna |
| Dimensions (H x W x D) | 1.3" (33 mm) x 4.1" (104.1 mm) x 6.1" (154.9 mm) |
| Weight | 0.48 lbs (221 g) |

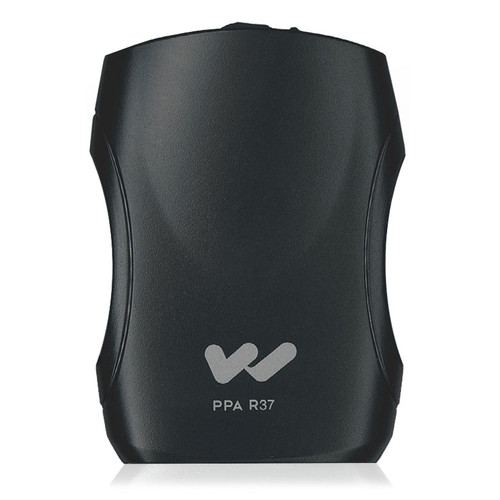

| PPA R37 Receivers | |
| Current Consumption | Nominal 52 mA |
| Operating Frequency | 17 Channels |
| FM Deviation | +/- 75 kHz |
| De-emphasis | 75 μS |
| LED Indicator | Power on : Bright Green. Low Battery: Flashes |
| Sensitivity | 2 μV at 12 dB SINAD with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 Hz to 15 kHz +/- 3 dB |
| Signal to Noise Ratio | 65 dB at 100 μV |
| Audio Output | 35 mW, max 16 ohm load |
| Output Connector | 3.5 mm stereo phone jack, accepts either stereo or mono plug |
| Dimensions (H x W x D) | 4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) |
| Weight | 0.28 lbs (1.27 kg) with batteries |

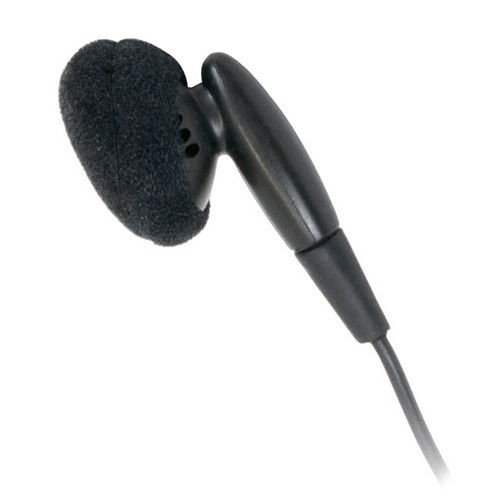

| EAR 013 Single Mini Earbuds | |
| Plug | 3.5 mm mono |
| Cord length | 39" (990.6 mm) |
| Impedance | 32 ohms |
| Frequency Range | 20 - 20kHz |
| Max input power | 5mV |
| Sensitivity | 128dB @ 1kHz |
| Driver size | 0.51" (13 mm) |
| Weight | 0.0198 lbs (9 g) |
| ANT 021 Antenna | |
| Used with | T27, T35 |
| Connector type | Screw to PCB |
| Cable type | N/A |
| Nominal Impedance | 75 Ohms |
| Length | 6" (152.4 mm) |
