Sennheiser ew 165 G3 Wireless Handheld Microphone System (Discontinued)
Part # EW165G3
Model # EW165G3
The Sennheiser ew 165 G3 Wireless Handheld Microphone System is a vocal set with fabulous sound and simple operation, this system delivers all the emotion and passion of the performer directly to the audience - without making any compromises.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

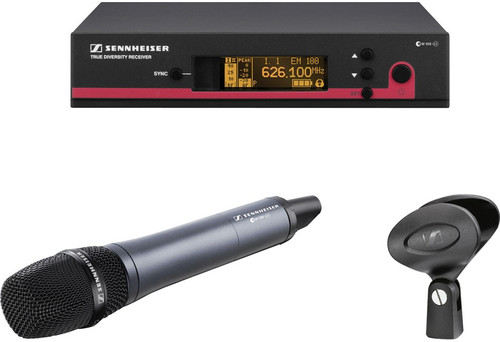

The Sennheiser ew 165 G3 Wireless Handheld Microphone System is a vocal set with fabulous sound. Included in the system is the SKM 100-865 G3 – a top-notch super-cardioid vocal microphone, EM 100 G3 receiver with true diversity technology for highest reception quality, MZQ 1 microphone clip.

Condenser microphone technology designed for the stage: This system's microphone capsule is based on the well-known evolution e 865 condenser. With a wide frequency response and high sensitivity, this is the elite handheld model in the G3 100 series. With excellent sound and simple operation, this system delivers all the emotion and passion of the performer directly to the audience - without making any compromises.

With a wide frequency response and high sensitivity, this is the elite handheld model in the G3 100 series. With excellent sound and simple operation, this system delivers all the emotion and passion of the performer directly to the audience - without making any compromises.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

Merging high-tech features with easy setup, the SKM 100-865 G3 features an evolution condenser capsule coupled with all the upgraded benefits of the G3 series. The wireless sync function allows the transmitter to sync up to a G3 receiver with a simple push of a button, making setup simple. Expanded frequency response means a more precise sound quality to ensure that you deliver an unforgettable performance.
Features

Features

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Handheld transmitter with easy-exchangeable microphone modules from evolution series
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
Specification
Frequency response (microphone)80 - 18000 Hz
CompanderHDX
Audio-XLR connector6.3 mm
Presets12
Microphoneelectret
Sound pressure level (SPL)152 dB(SPL) max.
THD, total harmonic distortion< 0.9 %
AF sensitivity1.6 mV/Pa
Signal-to-noise ratio> 110 dB(A)
RF frequency range516...865 MHz
RF output power30 mW
Transmission/receiving frequencies1680
Switching bandwidth42 MHz
Peak deviation+/- 48 kHz
In compliance with:ETS 300422, ETS 300445, CE, FCC
Operating time (Transmitter)typ. 8 h
Antenna connector2 BNC, 50 Ohms
Audio output level (balanced)XLR: +18 dBu max
Audio output level (unbalanced)Jack: +12 dBu max
Dimensions
Receiver (H x W x D)8.35" (212 mm) x 7.95" (202 mm) x 1.69" (43 mm)
TransmitterØ 1.97" (50 mm) x 10.43" (265 mm)
Weight
Receiver1.98 lbs (900 g)
Transmitter0.99 lbs (450 g)
In the Box

In the Box

  • (1) EM 100 G3 rack-mount receiver
  • (1) SKM 100-865 G3 handheld transmitter (condenser, super-cardioid)

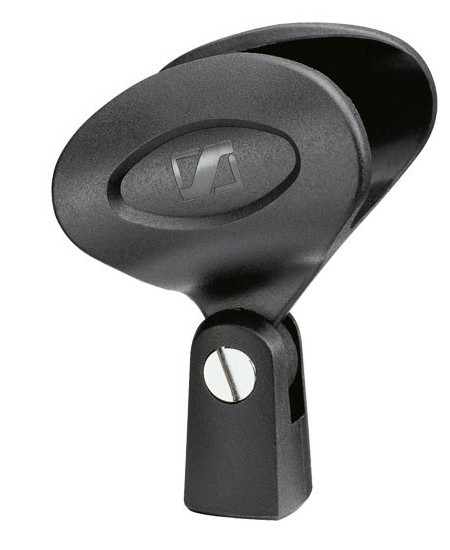

  • (1) MZQ 1 microphone clip
  • (1) NT 2 power supply unit
  • (2) antennas
  • (2) stacking elements
  • (2) AA batteries
  • Operating instructions
