Sennheiser ew D1-ME2 Digital Wireless Lavalier System (Discontinued)
Sennheiser ew D1-ME2 Digital Wireless Lavalier System (Discontinued)
Sennheiser ew D1-ME2 Digital Wireless Lavalier System (Discontinued)
Sennheiser ew D1-ME2 Digital Wireless Lavalier System (Discontinued)
By Sennheiser

Sennheiser ew D1-ME2 Digital Wireless Lavalier System (Discontinued)

Write a Review
Part #:
ew D1-ME2
Model #:
ew D1-ME2
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Sennheiser ew D1-ME2 Digital Wireless Lavalier System is a evolution wireless D1 Lavalier-Set with ME 2 lavalier microphone for live stage use.

Description

The Sennheiser ew D1-ME2 Digital Wireless Lavalier System is a evolution wireless D1 Lavalier-Set with ME 2 lavalier microphone for live stage use.

evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

Features
  • Unobtrusive professional clip-on microphone
  • Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS & Android app for remote control and monitoring of the system
  • Sturdy metal housing

Specifications
System
THD, total harmonic distortion typ. < 0,1 % (1 kHz)
Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
Operating temperature – 10 °C to +55 °C
Signal-to-noise ratio ≥ 109 dB (A)
RF frequency range 2,400 to 2,483.5 MHz
Modulation GFSK with back channel
Dynamic range > 128 dB (A)
Audio sampling 24 bit/48 kHz
Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency 3.9 ms
Audio codec APT-X Live
AF frequency response 20 to 20.000 Hz
EM-D1 Rackmount Receiver
Audio output Mic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu
RF output power adaptive, up to 100 mW, 10 mW fix (country-specific)
Power supply 12 V DC hollow jack
Antenna Connector 2 x Rev-SMA
Current consumption 350 mA
Connection XLR/¼" (6.3 mm) jack
Equalizer 7-band graphic equalizer
Automatic gain control (AGC) compression/expansion with automatic make-up gain function
Deviation display OLED
Network socket RJ45
Network protocol Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Weight approx. 1.82 lbs (824 g)
SK-D1 Bodypack Transmitter
Microphone 50 to 20,000 Hz
2.2 V RMS
RF output power adaptive, up to 100 mW, 10 mW fix (country-specific)
Battery Specification 2 x AA size battery (1.5V)
Input impedance 1 MOhm
Connection 3.5 mm jack socket, lockable
Line 20 to 20,000 Hz
3.3 V RMS
Input sensitivity automatic sensitivity adjustment
Accupack BA 30 (Li-Ion, 3.7V)
Weight approx. 0.19 lbs (85 g)

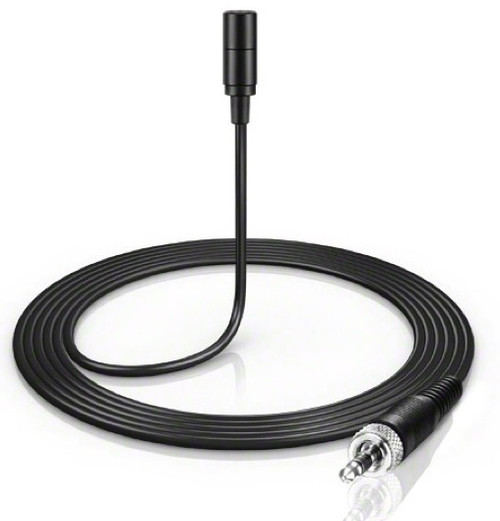

ME 2 Microphone
Microphone pre-polarized condenser
Max. sound pressure level 130 dB SPL
Pick-up pattern omni-directional
Sensitivity 20 mV/Pa

In the Box
  • (1) EM-D1 rackmount receiver
  • (1) SK-D1 bodypack transmitter
  • (1) ME 2 clip-on microphone
  • (1) NT-12 power supply
  • Transport Case
  • User Manual
