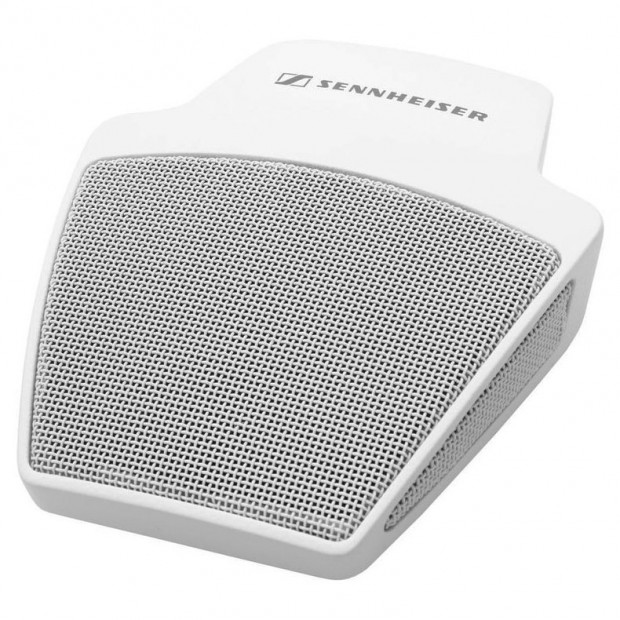

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
| Connector | Miniature XLR-3, Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative (−) |
|---|---|
| Frequency Response | 40 Hz – 20 kHz |
| Max. Sound Pressure Level | 140 dB |
| Transducer Principle | Pre-polarized condenser microphone |
| Pick-up Pattern | Cardioid |
| Nominal Impedance | 200 ohm |
| Phantom Powering | P 24 - P 48 |
| Operating Temperature | 14° to 122° F |
| Equivalent Noise Level | 29 dB (A) |
| Equivalent Noise Level Weighted as per CCIR 468-3 | 39 dB (CCIR) |
| Current Consumption | 1.5 mA |
| Acoustics | Noundary layer microphone |
| Dynamic Range | 111 dB (A) |
| Sensitivity | 10 mV/Pa |
| Dimensions (W x D x H) | 0.98" (24.9 mm) x 3.34" (84.8 mm) x 3.93" (99.8 mm) |
| Weight | 0.64 lbs (0.29 kg) |
