- Description
Details

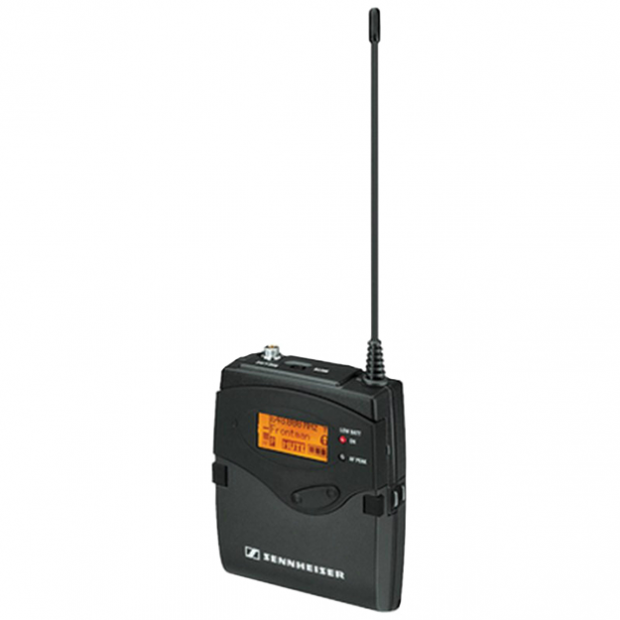

This lightweight yet extremely rugged bodypack transmitter is a delight for both the musician and the audience. With an AF frequency response of 25 to 20,000 Hz, it transmits even the sound of a bass guitar with rich fundamentals. Three RF output powers (four in the US version) provide longer transmission ranges or more channels per frequency range. The rechargeable batteries of the SK 2000 (optional) can be charged right in the unit using the external charging contacts.
Lightweight, robust bodypack transmitter. AF frequency response optimized for bass guitar. Up to 6 x 64 user-programmable channels. Easy receiver-transmitter synchronization at the push of a button. All-metal housing.
- Features
Features
- Sturdy all-metal housing
- Up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- External charging contacts for recharging battery BA 2015 in the transmitter
- Backlit display on transmitter (keystroke activation)
- Auto-lock feature to prevent buttons from being pressed accidently
- Audio and RF MUTE feature for muting the transmitter
- Wide range of accessories for virtually any use
- Enhanced audio frequency response in the bass range for optimum transmission from bass guitars
- Input sensitivity above 60 dB can be set in 3 dB steps
- Transmitters can be configured from the receiver menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
- Specification
Compander HDX Audio-XLR Connector Sennheiser (3-Pin) Socket Presets Max. 64 Signal-to-Noise Ratio > 120 dB(A) (@ 1 mV, Peak Deviation) RF Output Power 10, 30, 50 mW (US: 100 mW) Peak Deviation ±48 kHz Nominal Deviation ±24 kHz In Compliance With CE , FCC, IC Operating Time Typ. 8 h Modulation FM Power Supply 2 x 1,5 V (AA) Carrier Frequencies Max. 3000 Input Impedance Mic.: 40 kΩ Input Impedance Line: 1 MΩ Max. Input Voltage 3 V (Mic + Line) Dimensions (H x W x D) 3.2" (82 mm) x 2.52" (64 mm) x 0.94" (24 mm) Weight 0.357 lbs (0.160 kg) - Documents
- In The Box
In The Box
- (1) SK 2000 Bodypack Transmitter
- (2) AA 1.5 V Batteries
- (1) Instruction Manual
- (1) Supplementary Frequency Sheet
- (1) Supplementary RF Power Sheet
