Sennheiser SK 5212-II Superior Versatile Bodypack Transmitter

Home /
Sennheiser SK 5212-II Superior Versatile Bodypack Transmitter (Discontinued)

Description

Details

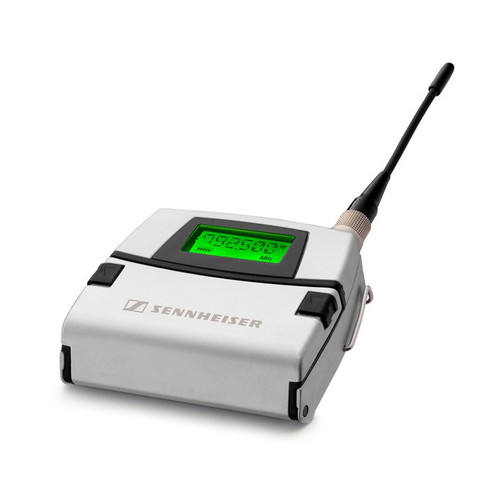

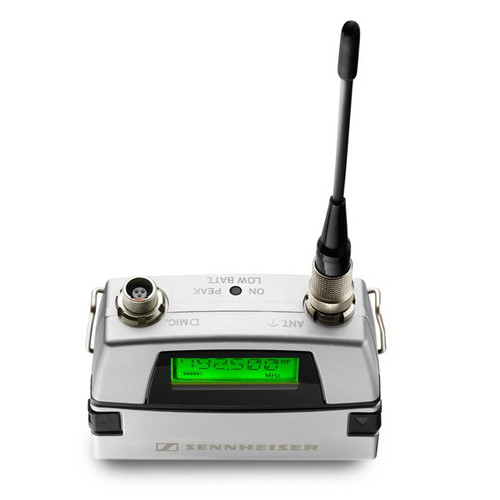

The SK 5212-II bodypack transmitter combines reliability and diversity in a very small housing. Its compact design makes the transmitter inconspicuous and comfortable to wear. The new extended switching bandwidth of up to 184 MHz provides extra flexibility. The transmission power can be adjusted to improve transmission duration while meeting regional regulations. Also new: the Low Intermodulation Mode ("LoI") increases interference immunity, especially during multi-channel operation. An input sensitivity range of -30 dB to +40 dB makes the transmitter suitable for use in quiet interview situations as well as with very powerful singing voices in musicals.

Its menu-driven user interface with backlit LCD is remarkably simple and intuitive. With its extensive power spectrum, the low power consumption of the SK 5212-II is particularly impressive: one alkaline manganese battery (Mignon/AA) lasts for at least 5 1/2 hours of operation.

The SK 5212-II is available in L, N and P frequency variants.

Features

Features

Up to 184 MHz switching bandwidth
Switchable output power
Very compact and rugged housing
Audio sensitivity adjustable in steps of 1 dB from -30 to +40 dB
1 AA battery for at least 5 1/2 hrs of operating time
Frequencies adjustable in steps of 5 kHz
Jog dial for increased ease of use
Switchable low-cut

Specification

Frequency Ranges	Frequency Range Band L (470 - 638 MHz) Frequency Range Band N (614 - 697.9 MHz)
Frequency Response (Microphone)	60 - 20000 Hz
Compander	HiDyn Plus
Total Harmonic Distortion	< 0.3 %
Storage Temperature	-25 °C à +70 °C
Operating Temperature	-10 °C à +55 °C
Number of Channels	Frequency Bank "FIX" With Up to 59 Factory-Preset Frequencies Frequency Bank "VAR" With 20 Freely Selectable Frequencies (Frequencies Tunable in Steps of 5 kHz)
Peak Deviation	+/- 56 kHz
Nominal Deviation	+/- 40 kHz
Operating Time	PWR.LO: Approx. 11h PWR.HI: Approx. 5.5h PWR.LoI: Approx. 5.5h
Power Supply	1 AA Battery
Current Consumption	PWR.LO: Approx. 150 mA PWR.HI: Approx. 220 mA PWR.LoI: Approx. 220 mA
Input Voltage Range	7,75 mV, Sensitivity
Dynamic Range	Typ. 110 dB (A)eff
High Pass Filter	Flat, 120 Hz Switchable
Dimensions (H x W x D)	2.36" (60 mm) x 2.08" (53 mm) x 0.66" (17 mm)
