Sennheiser SKM 2000XP High Quality Handheld Transmitter (Discontinued)

Description

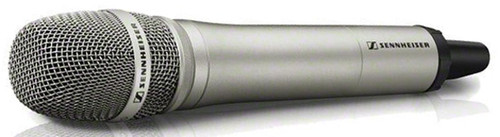

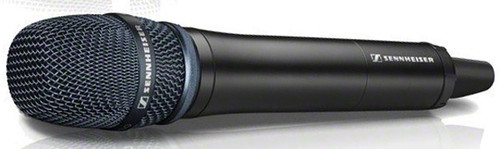

It's all in the design. The hand-held transmitter of the 2000 series shows its strength: during use, in its performance, in its features. Sennheiser's technical know-how is shown through its switchable transmission power, intuitive menu navigation, an easy-to-read graphic display and external charging contacts for charging the optional rechargeable batteries directly. SKM 2000 is compatible with all ew capsules, including the MMK 965-1 true condenser capsule, whose wired version, e 965, has already proven to be a great success. Colors: Nickel and black

Features

• Rugged metal housing
• Up to 75 MHz switching bandwidth
• 20 fixed frequency bands with up to 64 compatible presets
• 6 banks each with up to 64 tunable channels
• Frequency setting in 25 kHz steps
• Pilot tone squelch for interference-free operation
• External charging contacts for recharging battery BA 2015 in the transmitter
• Backlit display on transmitter (keystroke activation)
• Auto-lock feature to prevent buttons from accidently being pressed
• Audio and RF MUTE feature for muting the transmitter
• Transmitters can be configured from the receiver menu
• Possible to synchronize with the receiver using infrared interface
• Wide range of accessories for virtually any use

Specifications

Compander	HDX
Presets	Max. 64
Signal-to-Noise Ratio	≥ 120 dBA (@ 1 mV Peak Deviation)
RF Frequency Range	516...865 MHz
RF Output Power	10, 30, 50 mW (US : 100 mW)
Peak Deviation	±48 kHz
Nominal Deviation	±24 kHz
In Compliance With	CE, FCC IC
Operating Time	Typ. 8 h
Modulation	FM
Power Supply	2 x 1,5V (AA)
Carrier Frequencies	Max. 3000
Color	Black Nickel
Dimensions (Dia x L)	1.96" (50 mm) x 10.43" (265 mm)
Net Weight	0.992 lbs (0.450 kg)

DOCUMENTS

In The Box

• (1) SKM 2000 Hand-Held Transmitter
• (2) AA 1.5 V Batteries
• (1) Microphone Clip
• (8) Color-Coded Rings
• (1) Instruction Manual
• (1) Supplementary Frequency Sheet
• (1) Supplementary RF Power Sheet
