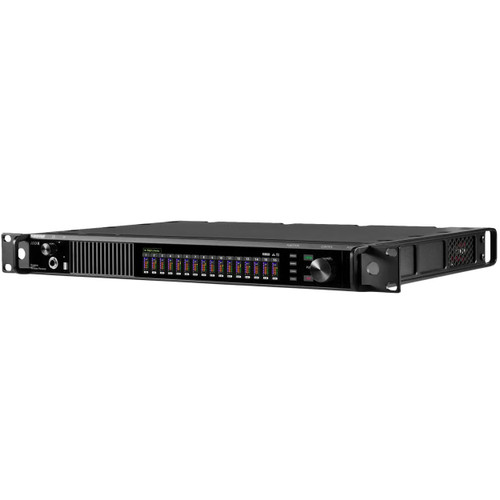

Shure ANX4 Scalable Wireless Receiver for Axient Digital and ULX-D Systems

Shure ANX4 Scalable Wireless Receiver for Axient Digital and ULX-D Systems

The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments.

**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).

How It Works

Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels. Simply choose the number of channels you need, purchase channel licenses and activate them in your ANX4. What’s more, ANX4 channel licenses can be activated in one ANX4 and later removed and activated in a different ANX4 via your ShureCloud account. Shure ANX4. Scalable wireless audio that meets your needs.

Why It's Better

Axient Digital or ULX-D. You Choose.

Axient Digital and ULX-D are award-winning, feature-rich wireless audio platforms. With an ANX4 scalable wireless receiver, you choose which of the two you work with (one or the other, not both at the same time). Your ANX4 receiver can work with Axient Digital transmitters this week and ULX-D transmitters next. Manage and operate your Shure ANX4 scalable wireless receiver as your project needs change or set it and leave it as is. The choice is yours.

Scalable Wireless. Purchase Channels and Activate as Needed.

Shure ANX4 does not ship preconfigured with active wireless channels. Purchase licenses in single- and four-channel increments and activate the exact number of channels you need for your project. Own more than one ANX4? Manage and deploy the channel licenses you own across your ANX4 units in your facility, venue, or rental inventory as needed.

Single Rack Space Design

Each Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. What’s more, at high channel counts you’ll save much-needed rack space, significantly reduce overall rack weight, simplify your antenna distribution setup, and save money. Get more of what you want and a whole lot less of what you don’t.

• Scalable wireless receiver for use with Axient® Digital and ULX-D® wireless systems
• Receives up to 16 channels of Axient® Digital or 24 channels of ULX-D® in a single rack space
• Channel licenses are available in single- and four-channel options (sold separately)*
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient® Digital and ULX-D® options (except for the ULX-D 902 to 928 MHz band)
• Large, 6.6" front panel color display
• 1/4" front-panel headphone connector for monitoring with Dante Browse (for both Axient® Digital and ULX-D®)
• Streamlined, cost-saving antenna setup for large-scale wireless deployments
• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands and provide greater coverage for complex setups
• Networked control with Shure Wireless Workbench for extended and enhanced RF monitoring and management
• DC module version available to support redundant power

*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.

User Guide

• (1) ANX4
• (1) Rackmount Kit
• (1) Ethernet Cable - Short
• (1) Ethernet Cable - Long
• (2) BNC Cable
• (2) BNC Bulkhead Adapters
