The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
The BLX14/B98 includes BLX4 single-channel receiver, BLX1 bodypack transmitter, BETA 98H/C instrument microphone, power supply, 2 AA batteries, carrying case, and user guide.

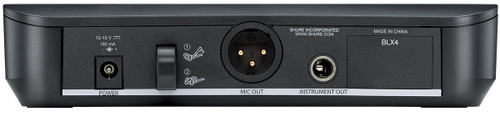

The BLX4 Single Channel Receiver features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. It includes 1/4" and XLR audio outputs and two-color audio status indicator LED. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.

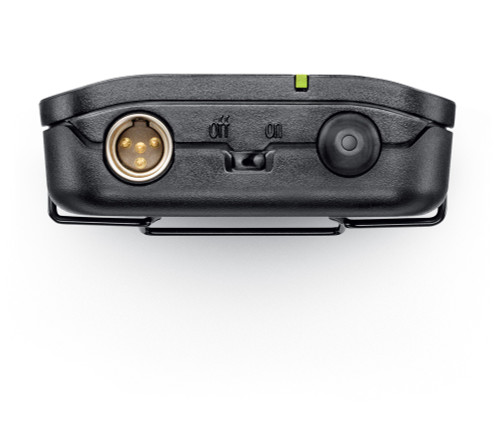

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. It comes equipped with power and battery status LED, 2 AA batteries that provide up to 14 hours of continuous use and has an operating range (line of sight) of 300 ft (91 m).

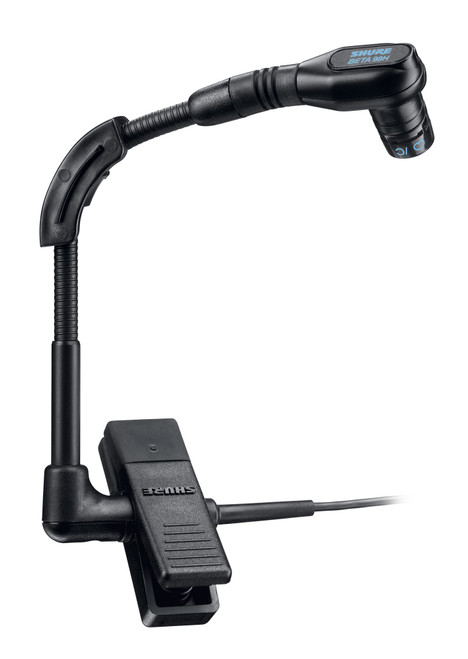

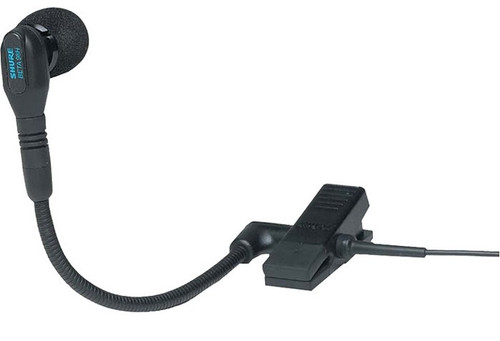

The BETA 98H/C is a premium cardioid condenser instrument microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
BLX14/B98 instrument wireless System:
BLX4 Single Channel Receiver:
BETA 98H/C Instrument Microphone:
BLX1 Bodypack Transmitter:
| System | |
|---|---|
| Working Range | 300 ft (91 m) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX4 Wireless Receiver | |
| Output Impedance | XLR connector: 200 Ω, 6.35 mm (1/4”) connector: 50 Ω |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Housing | Molded ABS |
| Power Requirements | 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
| Dimensions (H x W x D) | 1.57" (40 mm) X 7.40" (188 mm) X 4.06" (103 mm) |
| Weight | 8.5 oz (241 g) |
| BETA 98H/C Instrument Microphone | |
| Type | Condenser (electret bias) |
| Polar Pattern | Unidirectional (cardioid) |
| Frequency Response | 20 to 20,000 Hz |
| Output Impedance | Rated at 150.0 ohms (actual) Recommended minimum load impedance: 1 kilohm |
| Output Level (0 dB = 1 volt per Pascal) | Open Circuit Voltage: -56 dB (1.6 mV) |
| Output Clipping Level (at 1kHz, THD < 1%) | 2.5 kilohm load: 11 dBV (3.5 V) 1.0 kilohm load: 3 dBV (1.4 V) |
| Maximum SPL | 2.5 kilohm load: 163 dB 1.0 kilohm load: 155 dB |
| Dynamic Range (maximum SPL to A-weighted noise level) | 132 dB (2.5 kilohm load) |
| Signal-to-noise ratio | 63 dB at 94 dB SPL (IEC 651) |
| Recommended Operating Voltage | 11 to 52 Vdc Phantom |
| Operating temperatures | -7 degrees C to 49 degrees C (20 degrees F to 120 degrees F) |
| Storage temperatures | 29 degrees C to +74 degrees C (-20 degrees F to 165 degrees F) |
| Relative Humidity | 0 to 95% |
| BLX1 Bodypack Transmitter | |
| Audio Input Level | Gain max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x W x D) | 4.33" (110 mm) x 2.52" (64 mm) x 0.83" (21 mm) |
| Weight (without batteries) | 2.6 oz (75 g) |
