Shure BLX14 Wireless Guitar Bodypack System
The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

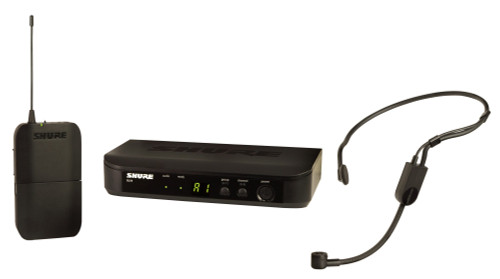

The BLX14 Bodypack Wireless System includes BLX1 bodypack transmitter, BLX4 single-channel receiver, WA302 Instrument Cable, power supply, 2 AA batteries, and user guide.

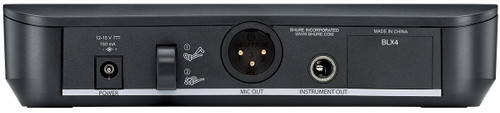

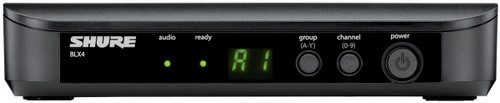

The BLX4 Single Channel Receiver features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. It includes 1/4" and XLR audio outputs and two-color audio status indicator LED. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.

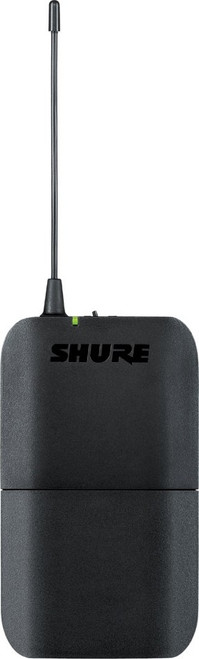

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. It comes equipped with power and battery status LED, 2 AA batteries that provide up to 14 hours of continuous use and has an operating range (line of sight) of 300 ft (91 m).

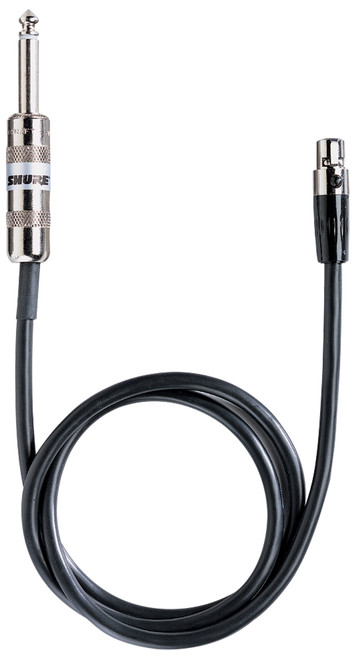

The WA302 Instrument Cable connects the body-pack transmitter to a guitar or other instrument. It Features a 2.5 foot (0.75 m), length with 1/4" plug and 4-pin mini connector (TA4F) (supplied with instrument systems).
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
BLX14 Bodypack Wireless System:
BLX4 Single Channel Receiver:
WA302 Instrument Cable:
BLX1 Bodypack Transmitter:
| System | |
|---|---|
| Working Range | 300 ft (91 m) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX4 Wireless Receiver | |
| Output Impedance | XLR connector: 200 Ω, 1/4" (6.35 mm) connector: 50 Ω |
| Audio Output Level | XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Housing | Molded ABS |
| Power Requirements | 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
| Dimensions (H x W x D) | 1.57" (40 mm) X 7.40" (188 mm) X 4.06" (103 mm) |
| Weight | 8.5 oz (241 g) |
| BLX1 Bodypack Transmitter | |
| Audio Input Level | Gain max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x W x D) | 4.33" (110 mm) x 2.52" (64 mm) x 0.83" (21 mm) |
| Weight (w/o Batteries) | 2.6 oz (75 g) |
