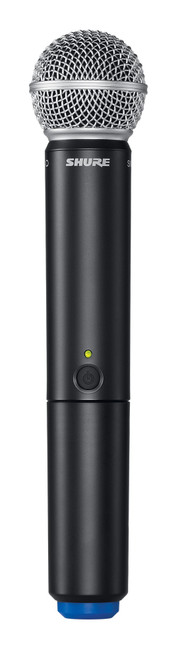

Featuring an integrated SM58 microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.
For use with BLX Wireless Systems only.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
| System | |
|---|---|
| Working Range | 300 ft (91 m) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX2 Handheld Transmitter | |
| Audio Input Level - Gain | - 0dB: -20 dBV maximum -10dB -10 dBV maximum |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x Diameter) | 8.88" (224 mm) X 2.13" (53 mm) |
| Weight (without batteries) | 0.77 oz (21.83 g) |
| SM58 Vocal Microphone | |
| Type | Dynamic (moving coil) |
| Frequency Response | 50–15,000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | EIA rated at 150 Ω (300 Ω actual) |
| Sensitivity (at 1 kHz, open circuit voltage) | –54.5 dBV/Pa (1.85 mV) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Case | Dark gray, enamel-painted, die cast metal; matte-finished, silver colored,spherical steel mesh grille |
| Connector | Three-pin professional audio connector (male XLR type) |
| Dimensions (H x W) | 6.38" (162 mm) x 2" (51 mm) |
| Weight | 10.5 oz (298 g) |
