Shure FP33 3-Channel Stereo Mixer (Discontinued)

By Shure

Shure FP33 3-Channel Stereo Mixer (Discontinued)

Name: Shure FP33 3-Channel Stereo Mixer (Discontinued)
Brand: Shure
SKU: SHURE-FP33
Price: 1485 USD
Availability: OutOfStock

Write a Review

Part #:

FP33

Model #:

FP33

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The FP33 is a 3-input, 2 output, portable stereo mixer specifically designed for remote audio recording, electronic field production, electronic news gathering, and location film production.

Description

The FP33 is a 3-input, 2 output, portable stereo mixer specifically designed for remote audio recording, electronic field production, electronic news gathering, and location film production. FP33 features include: High-quality, sealed input potentiometers, Dynamic range of over 100dB 48V phantom, 12V phantom power, and 12V T (A-B) power, LED indicators of input levels, output peaks, limiter action, and low battery. Pop-up pan pots and a link switch to couple inputs 2 & 3 into a stereo pair, Mix Bus to connect an additional FP33 or FP32A, comprehensive headphone monitoring control including headphone MS stereo matrix, internal DIP switches for over 4,000 customized setups. The FP33 has an exceptionally low self-noise and a wide dynamic range that are perfect for use with DAT and other digital recording media.

Features

Operates on two 9V batteries or 12 to 30V dc external voltage.
Transformer balanced mic/line inputs and outputs.
Internal headphone level adjustments.
High-precision sealed potentiometers.
48 V/12V phantom and 12V T (A-B) power.
LED indication of input level, peak output level, limiter action, and battery condition.
Input circuit accepts wide range of signal level without input pads.
Pop-up pan potentiometers.
Link switch couples mixer inputs 2 and 3 into stereo pair.

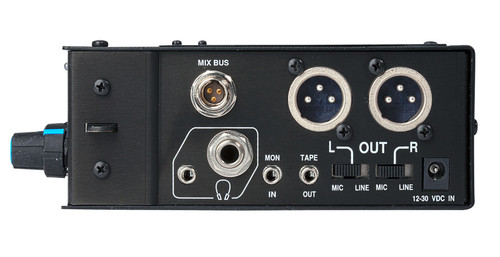

Mix bus jack for connecting FP33 or FP32A mixers.
Output level meters with timed or toggled illumination.
Headphone monitoring mode switch and headphone MS matrix.
Monitor switch routes mixer or Monitor in signal to headphones.
Internal DIP switches provide over 4,000 different set-ups.
Color-coded, soft touch rubberized knobs with tactile position indicators.
Steel chassis with black chrome finish.
Carrying case, strap, and mix bus cable included.

Specifications

Frequency Response	20 to 20,000 Hz ±2.0 dB
Total Harmonic Distortion	0.25% THD at +4 dBm output, 50 to 20,000 Hz
Equivalent Input Noise	–127 dBV with 150 Ω source, 20 to 20,000 Hz
Output Noise	Master level fully CCW: ≤ –100 dBV, 20 to 20,000 Hz
Common Mode Rejection Ratio	65 dB at 100 Hz, –20 dBV input
Input Channel Bi-Color LEDs	Green: Signal presence; visual indication of mix level, Red: 6 dB below clipping level
Output Clipping Level	≥+18 dBm at line output into 600 Ω
Low–Cut Filters	6 dB down at 150 Hz; 6 dB/octave slope
Pan Attenuation Level	45 dB
Tone Oscillator	1 kHz ±10%
Slate Tone Oscillator	400 Hz ±10%
Furnished Accessories	Carrying Case, Shoulder Strap, Mix Bus Cable, Rubber Feet and Spare Fuse
Overall Dimensions (W x H x D)	6-3/8 x 7–1/4 x 2-1/4 Inch
Net Weight (without batteries)	3.5 lbs (1.6 kg)
