Shure GLXD24R/SM58 Rackmount Digital Wireless Handheld Microphone System (Discontinued)

Shure GLXD24R/SM58 Rackmount Digital Wireless Handheld Microphone System (Discontinued)

Name: Shure GLXD24R/SM58 Rackmount Digital Wireless Handheld Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-GLXD24R/SM58-Z2
Price: 629 USD
Availability: OutOfStock

Write a Review

Part #:

GLXD24R/SM58-Z2

Model #:

GLXD24R/SM58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure GLXD24R/SM58 GLX-D Advanced Digital Wireless Vocal System features intelligent battery rechargeability, and the industry-standard SM58 vocal microphone capsule for warm, clear vocal reproduction and the GLXD4R metal rack mount receiver. For use with GLX-D Advanced Frequency Managers providing robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation.

Description

Shure GLXD24R/SM58 Rackmount Digital Wireless Handheld Microphone System

The Shure GLXD24R/SM58 provides intelligent battery rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The industry-standard SM58 vocal microphone capsule delivers warm, clear vocal reproduction. For use with GLX-D® Advanced Frequency Managers (UA846Z2).

Includes GLXD4R rack mount receiver, GLXD2/SM58 handheld transmitter with integrated SM58 cardioid dynamic microphone capsule, microphone clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware, and user guide.

Features

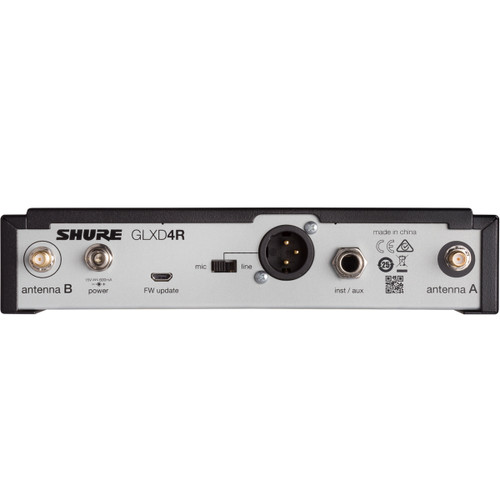

GLXD4R Rack Mount Receiver:

Integrated battery charge port for intelligent Shure lithium-ion transmitter batteries, two-color charge indicator LED
Detachable antennas for remote mounting
Remote adjustable transmitter gain control
Hi-res LCD screen status display
XLR and 1/4" output connectors
Rugged metal chassis design
Included rack mount hardware

GLXD2 Handheld Transmitter:

Automatically links to GLXD4R receiver
GLXD2 provides legendary Shure microphone options including the industry-standard SM58®
Operating Range

Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions

Up to 16 hours of use from a full charge
Sophisticated design with durable, lightweight construction

Specifications

GLXD4R Rack Mount Receiver
Housing	Steel
Power Requirements	14 to 18 VDC (tip positive with respect to ring) 550 mA
Spurious Rejection	> 35dB, typical
Gain Adjustment Range	-18 to 42dB in 1dB steps
Phantom Power Protection	Yes
Mic/Line Switch	30dB Pad
Receiver Antenna Input	Impedance: 50Ω Antenna Type: 1/2 Wave Sleeve Dipole Maximum Input Level: -20dBm
Dimensions (H x W x D)	1.7" (42 mm) x 7.8" (197 mm) x 6.4" (163 mm)
Weight	2 lbs (0.91 kg) (without batteries)
SM58 Cardioid Dynamic Microphone
Type	Dynamic
Frequency Response	50 - 15,000 Hz
Polar Pattern	Cardioid
Sensitivity (at 1,000 Hz Open Circuit Voltage)	-54.5 dBV/Pa (1.85 mV) 1 Pa = 94dB SPL
Impedance	Rated impedance is 150Ω (300Ω actual) for connection to microphone inputs rated low impedance
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Case	Dark gray, enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille
Connector	Three-pin professional audio connector (male XLR type)
Dimensions (H x W)	6.38" (162 mm) x 2.01" (51 mm)
Weight	0.66 lbs (0.3 kg)

DOCUMENTS

In The Box

(1) GLXD4R Rack-Mount Receiver
(1) GLXD2/SM58 Handheld Transmitter with Integrated SM58 Cardioid Dynamic Microphone Capsule
(1) SB902 Lithium-Ion Rechargeable Battery
(1) PS24 Power Supply
(1) 95D16526 Carrying Case
(1) 31B1856 Thread Adapter
(1) 95A21651 USB Cable
