Shure GLXD24R/B87A Rackmount Digital Wireless Handheld Microphone System

Home /
Shure GLXD24R/B87A Rackmount Digital Wireless Handheld Microphone System (Discontinued)

Description

Details

Shure GLXD24R/B87A GLX-D Advanced Digital Wireless Vocal System with BETA87A Vocal Microphone

The GLX-D Advanced Digital Wireless Vocal System features intelligent battery rechargeability, the precision-engineered Beta87A vocal microphone capsule for warm, accurate sound and maximum sound isolation and the GLXD4R metal rack mount receiver. For use with GLX-D Advanced Frequency Managers, providing robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation.

GLXD24R/B87A provides intelligent battery rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The precision-engineered BETA 87A vocal microphone capsule delivers warm, accurate sound and maximum sound isolation. For use with GLX-D® Advanced Frequency Managers (UA846Z2). Includes GLXD4R rack mount receiver, GLXD2/BETA87A handheld transmitter with integrated BETA 87A supercardioid condenser microphone capsule, microphone clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware, and user guide.

Features

Features

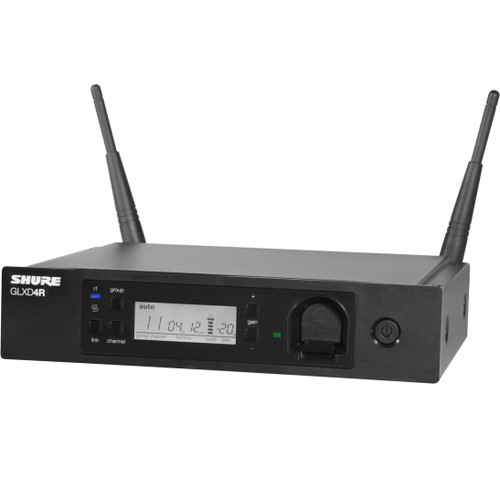

GLXD4R Rack Mount Receiver for GLX-D Advanced Digital Wireless System:

Integrated battery charge port for intelligent Shure lithium‐ion transmitter batteries, two‐color charge indicator LED
Detachable antennas for remote mounting
Remote adjustable transmitter gain control
Hi‐res LCD screen status display
XLR and 1/4" output connectors
Rugged metal chassis design
Included rack mount hardware

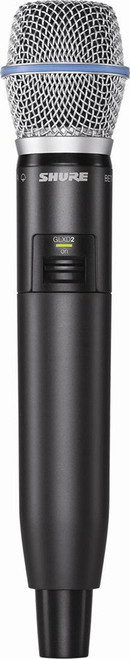

GLXD2/B87 Digital handheld transmitter with Beta 87A Capsule:

Automatically links with GLX-D wireless receivers for seamless frequency changing and any necessary gain adjustment
Integrated microphone capsule design
Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with durable, lightweight construction
Operating range of 20-30 m under typical conditions
Lightweight and rugged construction
Two-color transmitter status indicator LED
The Digital Wireless Transmitter provides Shure Digital Power Management with multiple charging solutions such as car-, wall- or USB-chargers (GLXD4: In-receiver charger)
Custom lithium-ion batteries provide up to 16 hours of continuous transmitter use
Connect for a 15-minute quick charge and count on up to 1.5 hours of performance

Specification

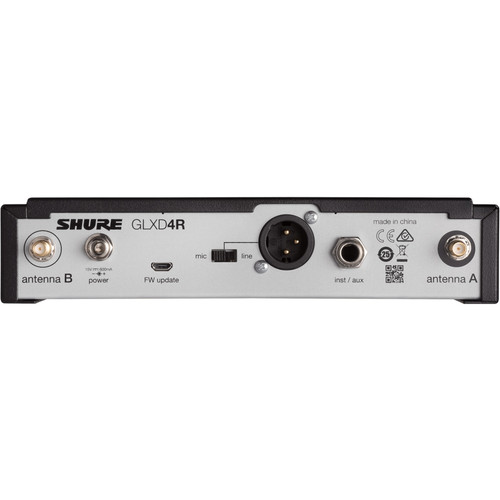

GLXD4R Rack Mount Receiver
Housing	Steel
Power Requirements	14 to 18 VDC (tip positive with respect to ring) 550 mA
Spurious Rejection	> 35dB, typical
Gain Adjustment Range	-18 to 42dB in 1dB steps
Phantom Power Protection	Yes
Mic/Line Switch	30dB Pad
Receiver Antenna Input	Impedance: 50Ω Antenna Type: 1/2 Wave Sleeve Dipole Maximum Input Level: -20dBm
Dimensions (H x W x D)	1.7" (42 mm) x 7.8" (197 mm) x 6.4" (163 mm)
Weight	2 lbs (0.91 kg) (without batteries)
GLXD2/BETA87A Handheld Transmitter
Type	Supercardioid Condenser
Housing	Molded Plastic
Power Requirements	3.7 V Rechargeable Li-Ion
RF Output Power	10 mW E.I.R.P. max
Maximum Input Level	145 dB SPL
Dimensions (H x L)	2" (51 mm) x 9.9" (252 mm)
Weight	0.58 lbs (0.26 kg)

Documents

Documents

Spec Sheet

Brochure

User Guide

In The Box

In The Box

(1) GLXD2/BETA87A Handheld Transmitter with BETA 87A Supercardioid Condenser Microphone Capsule
(1) GLXD4R Rack Mount Receiver
(2) Detachable Antennas
(1) Rack Mount Hardware
(1) Microphone Clip
(1) SB902 Lithium-Ion Rechargeable Battery
(1) PS24 Power Supply
(1) 95D16526 Carrying Case
(1) 31B1856 Thread Adapter
(1) 95A21651 USB Cable
User Guide
