Shure High-End Multi-Channel Wireless UHF-R Microphone Rack System with 16 Wireless Microphones (Discontinued)

Part #:
HEWS-UR4DK8BBETA87AE6
Model #:
HEWS-UR4DK8BBETA87AE6
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This touring-grade digital multi-channel wireless rack system with four Shure UR2/K8B and four UR2/BETA87A handheld wireless microphones and eight Countryman E6 Earset Microphones is designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments. This dual multiple wireless microphone system is perfect wherever high fidelity, long-range and great performance is required.

Description

Shure High-End Multi-Channel Wireless Microphone Rack System

This touring-grade digital multi-channel wireless rack with eight Shure UR4D+ dual receivers, four UR2/K8B and four UR2/BETA87A handheld wireless microphones, eight Countryman E6 Earset Microphones with eight Shure UR1M Micro-Bodypack Transmitters, a UA845UWB antenna, a Furman PL-PRO C power conditioner and a Gator rolling rack with storage drawers is designed for the most demanding audio applications. This package offers great sound quality, long range wireless performance and robust RF transmission even in the most crowded of wireless spaces. The rolling rack and storage drawers keep the equipment safe and secure and the antenna combining prevents intermodulation or interference common in today’s RF world. This portable turnkey solution is ready for the stage! Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments. This dual multiple wireless microphone system is perfect wherever high fidelity, long-range and great performance is required.

Shure UR4D+ Dual Diversity Receivers

Technology innovations such as Networked Automatic Frequency Selection and Automatic Transmitter Setup provide advanced control and robust flexibility for a wide range of professional uses. RF distribution ports allow up to 10 receivers to share a single pair of antennas. For use with UHF-R Wireless. UHF-R Wireless features the Shure patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

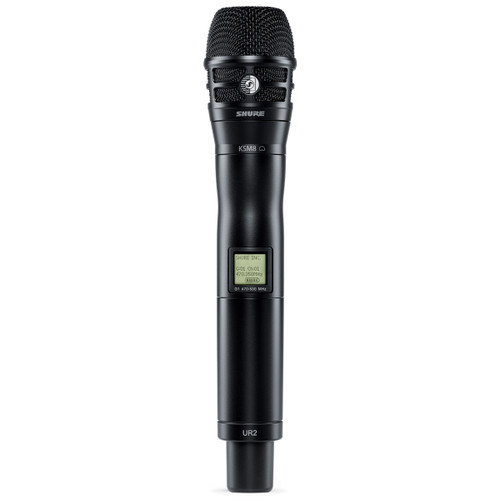

Shure UR2/K8B Handheld Wireless Microphones

With an interchangeable black KSM8 microphone cartridge, the UR2/K8B features rugged, lightweight construction and an antenna design which advances RF transmission reliability. The UR2/K8B Handheld Wireless Microphone Transmitter works with UHF-R Wireless Systems.

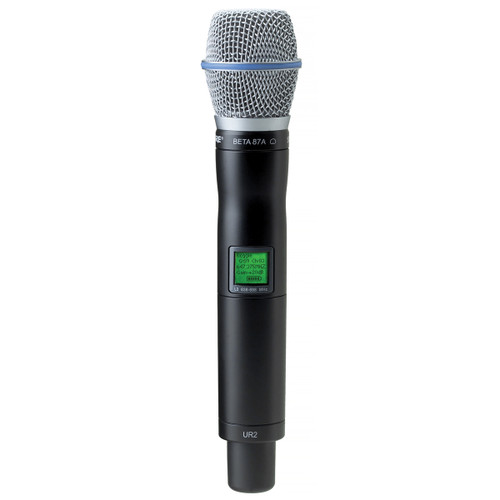

Shure UR2/BETA87A Handheld Wireless Microphones

With an interchangeable BETA®87A microphone cartridge, the UR2/BETA87A features rugged, lightweight construction and an antenna design which advances RF transmission reliability. The UR2/BETA87A Handheld Wireless Microphone Transmitter works with UHF-R Wireless Systems.

Countryman E6 Earset Microphones

The Countryman E6IOW5L1-AK E6 Omnidirectional Earset, the extremely low-profile E6 Earset delivers beautifully uncolored audio while rejecting surrounding noise and feedback. An ultra-miniature electric condenser element is held close to the mouth by a thin boom and comfortable earpad. Three sensitivity options cover general speaking applications through extremely powerful vocals. Four colors allow you to match the E6 to your skin tone for minimum visibility. The element is available as a water- and wind-resistant omnidirectional microphone or as a pattern-changeable directional microphone for maximum isolation and gain before feedback. The boom adjusts for a custom fit and is available in our classic springy style, the extremely flexible "i" style, or the Flex style providing a soft boom in front and a springy ear section.

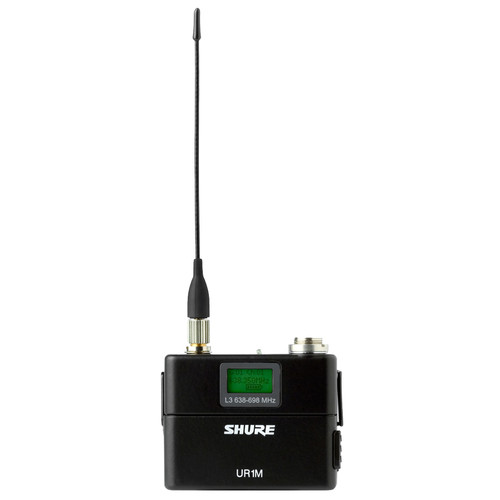

Shure UR1M Micro-Bodypack Transmitters

About half the size of most standard bodypacks, the UR1M is designed to be easily concealed and worn comfortably by actors, performers, musicians, and public speakers. Operating on the premium Shure UFH-R Wireless platform, the UR1M offers superior wireless audio and an industry-leading tuning range – all in a durable, ultra-compact and lightweight form factor.

Shure UA845UWB Ultra-Wide Band Antenna

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

Furman PL-PRO C Power Conditioner

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

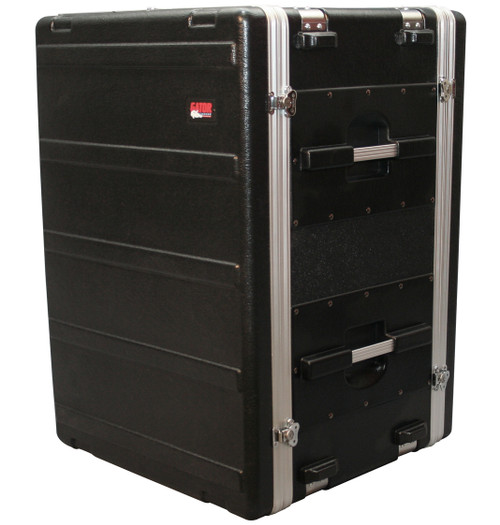

Gator G-SHOCK-16L 16U Shock Audio Rack

Gator’s deluxe rack cases are molded from incredibly durable high-density military grade Polyethylene. This lightweight yet super strong material insures maximum protection at a weight you can easily handle. The cases have 19.5” of rackable depth with front and rear threaded rack rails that are field replaceable. Exclusive to the Gator racks are locking front and rear lids. Sloped side handles molded from Polyethylene make them comfortable to carry when the racks are loaded and they are virtually indestructible. The ridges on the top and bottom make them universally stackable with Gator racks and those of other manufacturers. The latches are strong twist style and are designed to take the beatings of a rack on the road. Other models G-SHOCK-8L, G-SHOCK-12L and G-SHOCK-16L come with 8 Space Shock Rack - Double Shocks Per Corner, 12 Space Shock Rack-Double Shocks Per Corner, 16 Space Shock Rack-Double Shocks Per Corner.

Gator GRW-DRWWRLSS Rackworks 3U Rack Drawer

The Gator Rackworks 3U Rack Drawer for wireless microphones, 14.2" Deep; Lockable. Interior has Insert for 4 Wireless Microphone Systems & Accessories.

Gator GA-200 Caster Kit for Gator Shock Racks

The GA-200 is a caster kit for Gator Shock Racks with high density 3/4" industrial plywood and supports up to 400 pounds.

*Some assembly required.

Features

Shure UR4D+ Dual Diversity Receivers:

  • 2400 Selectable Frequencies Across 60 MHz Bandwidth
  • Track Tuning Filtering Technology
  • Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
  • Networked Automatic Frequency Selection
  • Automatic Transmitter Setup (including Custom Group Upload)
  • Flash Memory to Store Six 60-channel Custom Frequency Groups
  • Shure Patented Audio Reference Companding
  • Multi-function Bit-mapped Backlit LCD
  • Built-in USB & Ethernet Network Compatibility
  • Shure Wireless Workbench Control/Monitoring Software
  • Remoteable Antennas
  • Shure Microprocessor-controlled Diversity

Shure UR2/K8B Handheld Wireless Microphones:

  • Switchable RF power
  • Frequency and power lockout
  • Bit-mapped backlit LCD
  • Infrared automatic transmitter sync
  • All metal die-cast construction

Shure UR2/BETA87A Handheld Wireless Microphones:

  • Switchable RF power
  • Frequency and power lockout
  • Bit-mapped backlit LCD
  • Infrared automatic transmitter sync
  • All metal die-cast construction

Countryman E6 Earset Microphones:

  • Detachable cable
  • Carrying case
  • Black and white cable clips
  • Windscreen
  • Protective caps

Shure UR1M Micro-Bodypack Transmitters:

  • Weighs only 2.2 oz (62 g) without batteries
  • Same audio performance as UR1
  • User adjustable RF power (10mW or 50mW, regionally dependent)
  • 60-75 MHz RF tuning range (regionally dependent), tunable in 25 kHz steps
  • Specially treated for extended sweat resistance
  • Bit-mapped backlit LCD display
  • 2 AAA batteries provide up to 9 hours continuous use (9 hours lithium/6 hours alkaline or NiMH)
  • Selectable alkaline, lithium primary, or NiMH battery curves for accurate power monitoring
  • Audio level monitoring and control
  • Infrared automatic transmitter sync
  • Frequency and power lockout
  • Removable antenna
  • TAF4 or LEMO3 connector options available
  • Compatible with Wireless Workbench Software

Shure UA845UWB Ultra-Wide Band Antenna:

  • 5 selectable frequency ranges
  • Antenna A and B input overload LED indicators
  • Five-way RF signal output
  • Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • Internal power supply
  • 4 DC power feeds for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)

Furman PL-PRO C Power Conditioner with Voltage Meter:

  • Surge Protection
  • Noise Filtration
  • Voltage Protection
  • Pull-out Lights
  • Diagnostic Lights
  • USB Charger
  • LED Voltmeter
  • Isolated Banks
  • Wall Wart Spacing
  • 20 Amp Rating
  • Nine Total Outlets
  • BNC Lamp Connector

Gator G-SHOCK-16L 16U Shock Audio Rack:

  • Lightweight Polyethylene Construction
  • Independent Rubber Shock Absorbers at Each Corner
  • 360 Degree Air Ventilation Around Equipment
  • Threaded, Field Replaceable 7mm Zinc-Plated Steel Rack Rails
  • Adjustable interior sliding support on each side of rack adjusts from to back and up and down for rear support of gear
  • Comfortable recessed side handles and locking lids
  • Heat-treated 10/32 rail bolts & washers included
  • 200lb Weight Capacity

Gator GRW-DRWWRLSS Rackworks 3U Rack Drawer:

  • Cold Rolled 16 Gauge Steel Construction
  • Fully Enclosed Drawer & Spring-Loaded Latches
  • Black Powder Coated Finish
  • Heavy-Duty Smooth Glide Drawer Slides
  • Lock knock-out, lock and key included
  • 3U size drawer with wireless foam nest
  • Nest stores 4 wireless microphones, body packs, headsets, and accessories
  • Wireless storage accommodates microphones with clips still attached
  • Body pack and microphone storage area lined with polyethylene foam with tricot covered plywood dividers
  • Foam storage compartment with cut-outs to hold up to 16 AA batteries
  • Spacious accessory compartment to hold larger items and head-worn microphones

Gator GA200 Caster Kit for Gator Shock Racks:

  • High Density 3/4" Industrial Plywood
  • Held in Place Using 2 Locking Straps
  • Supports up to 400 pounds
  • 4" industrial casters
  • Fits Shock Racks

System Includes

  • (8) Shure UR4D+ Dual Diversity Receivers
  • (4) Shure UR2/K8B Handheld Wireless Microphones
  • (4) Shure UR2/BETA87A Handheld Wireless Microphones
  • (8) Countryman E6 Earset Microphones
  • (8) Shure UR1M Micro-Bodypack Transmitters
  • (1) Shure UA845UWB Ultra Wide Band Antenna
  • (1) Furman PL-PRO C Power Conditioner with Voltmeter
  • (1) Gator G-SHOCK-16L 16U Shock Audio Rack
  • (1) Gator GRW-DRWWRLSS Rackworks 3U Rack Drawer
  • (1) Gator GRW-DRW3 Rackworks Rack Drawer
  • (1) Gator GA-200 Caster Kit for Gator Shock Racks
