Shure High-End Multi-Channel Wireless UHF-R Microphone Rack System with 6 Headworn and 6 Lavalier Microphones (Discontinued)

Shure High-End Multi-Channel Wireless Microphone Rack System

This touring-grade digital multi-channel wireless rack system with six Shure UR4D+ dual receivers, six MX153 Headworn mics, six MX150 Lavalier mics, UA845UWB antenna, a Furman PL-PRO C power conditioner and a Gator rolling rack, is designed for the most demanding audio applications. This package offers great sound quality, long range wireless performance and robust RF transmission even in the most crowded of wireless spaces. The antenna combining prevents intermodulation or interference common in today’s RF world. This portable turnkey solution is ready for the stage, designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments. This dual multiple wireless microphone system is perfect wherever high fidelity, long-range and great performance is required.

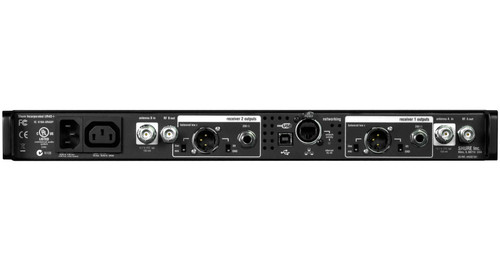

Shure UR4D+ Dual Diversity Receivers

Technology innovations such as Networked Automatic Frequency Selection and Automatic Transmitter Setup provide advanced control and robust flexibility for a wide range of professional uses. RF distribution ports allow up to 10 receivers to share a single pair of antennas. For use with UHF-R Wireless. UHF-R Wireless features the Shure patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

Shure MX153 Earset Headworn Microphones

The Shure Microflex® MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A / V conferencing, and live sound reinforcement.

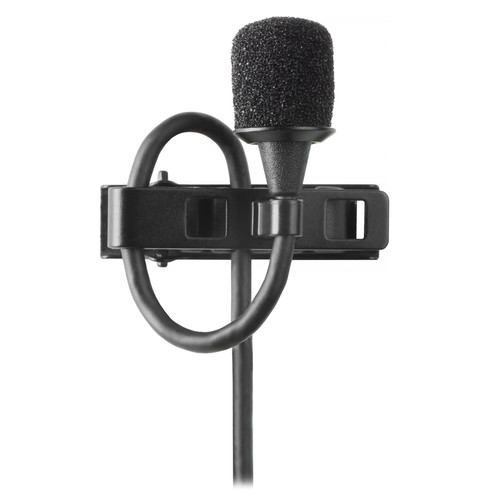

Shure MX150 Subminiature Lavalier Microphones

Ideal for applications requiring low-profile placement, the MX150 Subminiature Lavalier Microphone features an electret condenser microphone cartridge. Shure Microflex® MX150 is a professional electret condenser microphone ideal for applications requiring low-profile placement. Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate lectures, A / V teleconferencing, houses of worship, and sound reinforcement.

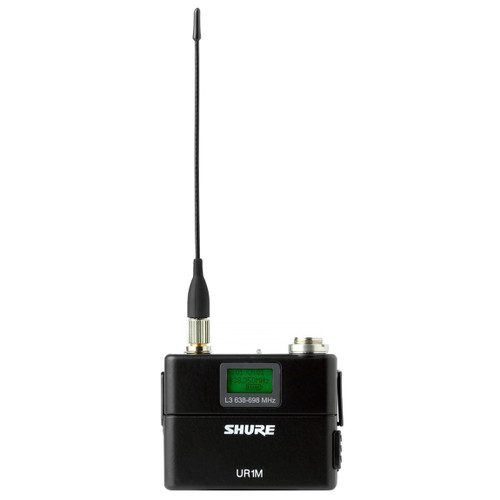

Shure UR1M Micro-Bodypack Transmitters

About half the size of most standard bodypacks, the UR1M is designed to be easily concealed and worn comfortably by actors, performers, musicians, and public speakers. Operating on the premium Shure UFH-R Wireless platform, the UR1M offers superior wireless audio and an industry-leading tuning range – all in a durable, ultra-compact and lightweight form factor.

Shure UA845UWB Ultra-Wide Band Antenna

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

Furman PL-PRO C Power Conditioner

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

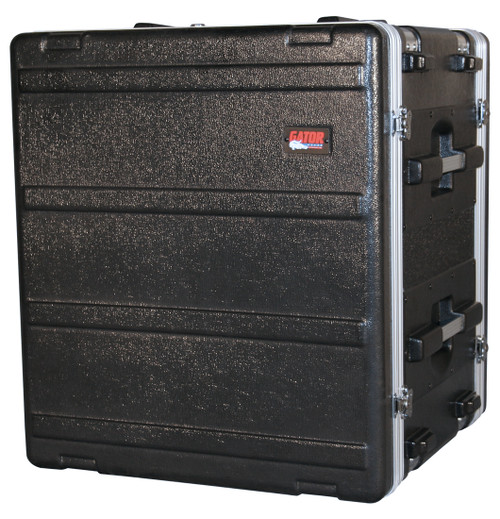

Gator G-SHOCK-12L 12U Shock Audio Rack

Gator’s deluxe rack cases are molded from incredibly durable high-density military grade Polyethylene. This lightweight yet super strong material insures maximum protection at a weight you can easily handle. The cases have 19.5” of rackable depth with front and rear threaded rack rails that are field replaceable. Exclusive to the Gator racks are locking front and rear lids. Sloped side handles molded from Polyethylene make them comfortable to carry when the racks are loaded and they are virtually indestructible. The ridges on the top and bottom make them universally stackable with Gator racks and those of other manufacturers. The latches are strong twist style and are designed to take the beatings of a rack on the road. Other models G-SHOCK-8L, G-SHOCK-12L and G-SHOCK-16L come with 8 Space Shock Rack - Double Shocks Per Corner, 12 Space Shock Rack-Double Shocks Per Corner, 16 Space Shock Rack-Double Shocks Per Corner.

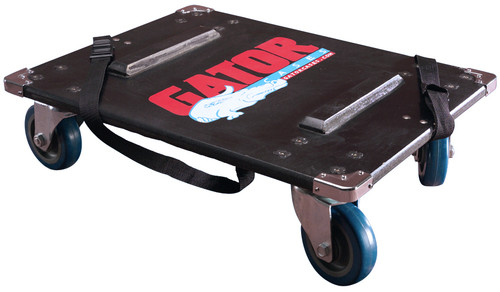

Gator GA-200 Caster Kit for Gator Shock Racks

The GA-200 is a caster kit for Gator Shock Racks with high density 3/4" industrial plywood and supports up to 400 pounds.

*Some assembly required.

Shure UR4D+ Dual Diversity Receivers:

• 2400 Selectable Frequencies Across 60 MHz Bandwidth
• Track Tuning Filtering Technology
• Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
• Networked Automatic Frequency Selection
• Automatic Transmitter Setup (including Custom Group Upload)
• Flash Memory to Store Six 60-channel Custom Frequency Groups
• Shure Patented Audio Reference Companding
• Multi-function Bit-mapped Backlit LCD
• Built-in USB & Ethernet Network Compatibility
• Shure Wireless Workbench Control/Monitoring Software
• Remoteable Antennas
• Shure Microprocessor-controlled Diversity



Shure MX153 Earset Headworn Microphones:

• Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
• Terminated with TQG / TA4F connector for direct connectivity to Shure wireless bodypack transmitters
• Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
• CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
• Kevlar®-reinforced soft flex cable
• Matte black, tan, and cocoa color options available
• Includes protective storage pouch, 3 windscreens and collar clip



Shure MX150 Subminiature Lavalier Microphones:

• CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
• Matte black, sleek design for inconspicuous placement
• Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
• Kevlar™ reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
• User-changeable equalization caps for response shaping (omnidirectional only)
• Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
• Legendary Shure quality, ruggedness, and reliability



Shure UR1M Micro-Bodypack Transmitters:

• Weighs only 2.2 oz (62 g) without batteries
• Same audio performance as UR1
• User adjustable RF power (10mW or 50mW, regionally dependent)
• 60-75 MHz RF tuning range (regionally dependent), tunable in 25 kHz steps
• Specially treated for extended sweat resistance
• Bit-mapped backlit LCD display
• 2 AAA batteries provide up to 9 hours continuous use (9 hours lithium/6 hours alkaline or NiMH)
• Selectable alkaline, lithium primary, or NiMH battery curves for accurate power monitoring
• Audio level monitoring and control
• Infrared automatic transmitter sync
• Frequency and power lockout
• Removable antenna
• TAF4 or LEMO3 connector options available
• Compatible with Wireless Workbench Software



Shure UA845UWB Ultra-Wide Band Antenna:

• 5 selectable frequency ranges
• Antenna A and B input overload LED indicators
• Five-way RF signal output
• Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
• Front-mounting antenna hardware
• Rack-mounting hardware
• Internal power supply
• 4 DC power feeds for receivers (15V, 2.5A max)
• DC outputs for antenna bias (12V, 300mA max)



Furman PL-PRO C Power Conditioner with Voltage Meter:

• Surge Protection
• Noise Filtration
• Voltage Protection
• Pull-out Lights
• Diagnostic Lights
• USB Charger
• LED Voltmeter
• Isolated Banks
• Wall Wart Spacing
• 20 Amp Rating
• Nine Total Outlets
• BNC Lamp Connector



Gator G-SHOCK-12L 12U Shock Audio Rack:

• Lightweight Polyethylene Construction
• Independent Rubber Shock Absorbers at Each Corner
• 360 Degree Air Ventilation Around Equipment
• Threaded, Field Replaceable 7mm Zinc-Plated Steel Rack Rails
• Adjustable interior sliding support on each side of rack adjusts from to back and up and down for rear support of gear
• Comfortable recessed side handles and locking lids
• Heat-treated 10/32 rail bolts & washers included
• 200 lbs Weight Capacity



Gator GA200 Caster Kit for Gator Shock Racks:

• High Density 3/4" Industrial Plywood
• Held in Place Using 2 Locking Straps
• Supports up to 400 pounds
• 4" industrial casters
• Fits Shock Racks

• (6) Shure UR4D+ Dual Diversity Receivers
• (6) Shure MX153 Earset Headworn Microphones
• (6) Shure MX150 Subminiature Lavalier Microphones
• (12) Shure UR1M Micro-Bodypack Transmitters
• (1) Shure UA845UWB Ultra Wide Band Antenna
• (1) Furman PL-PRO C Power Conditioner with Voltmeter
• (1) Gator G-SHOCK-12L 12U Shock Audio Rack

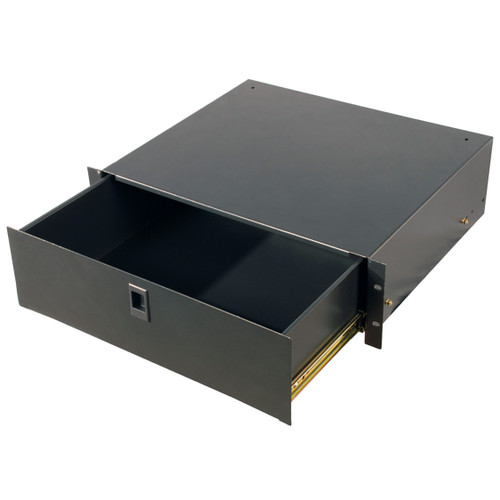

• (2) Gator GRW-DRW2 Rackworks 2U Rack Drawers
• (1) Gator GA-200 Caster Kit For Gator Shock Racks
