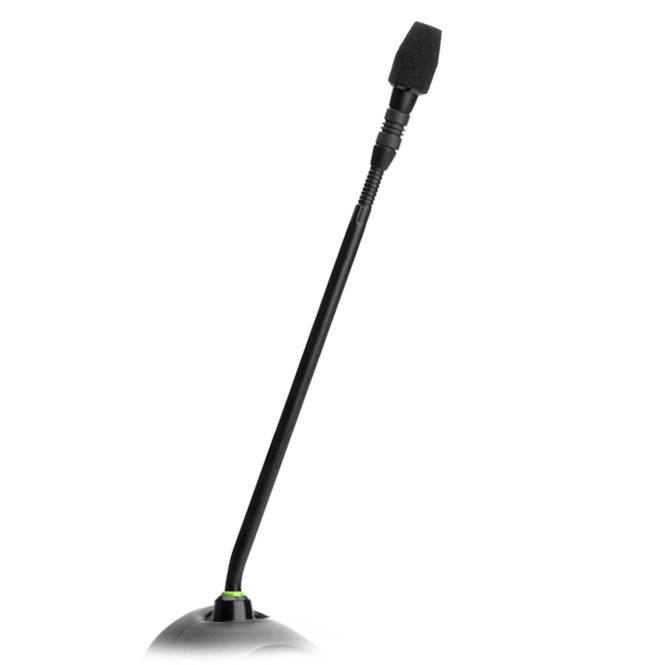

Flexible in more ways than one, Microflex® Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options and even interchangeable cartridges, it's easy to get the perfect fit for your conferencing installation. Fully compatible with SLX® wireless systems.
| Type | Condenser (electret bias) |
|---|---|
| Frequency Response | 50 - 17000 Hz |
| Polar Pattern | Cardioid at 1 kHz |
| Output Impedance | EIA Rated at 150 Ω (170 Ω actual) |
| Output Configuration | Active balanced |
| Sensitivity | -35 dBV/Pa (18 mV) (at 1 kHz , open circuit voltage) |
| Maximum SPL | 121 dB (1 kHz at 1% THD, 1 kΩ load) |
| Equivalent Output Noise | 28 dB SPL (A-weighted) |
| Signal-to-Noise Ratio | 66 dB (referenced at 94 dB SPL at 1 kHz) |
| Dynamic Range | 93 dB (1 kΩ load at 1 kHz) |
| Common Mode Rejection | 45 dB minimum (10 Hz to 100 kHz) |
| Preamplifier Output Clipping Level | –8 dBV (0.4V) (1% THD) |
| Polarity | 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector |
| Logic Connections | LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ) |
| Mute Switch Attenuation | –50 dB minimum |
| Operating Temperature | -18–57 °C (0–135 °F) |
| Storage Temperature | -29–74 °C (-20–165 °F) |
| Relative Humidity | 0–95% |
| Power Requirements | 48–52 Vdc phantom, 8.0 mA |
| Net Weight | 0.150 lbs (0.068 kg) |
