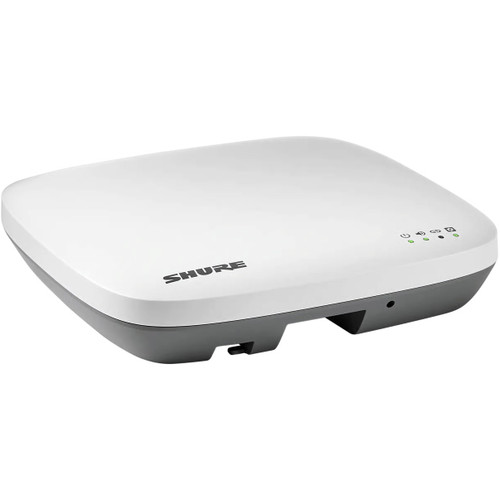

Shure MXWAPX8 8-Channel Microflex Wireless Access Point Transceiver

Shure MXWAPX8 8-Channel Access Point Transceiver

The MXWAPX8 is designed for professional environments requiring reliable, high-quality wireless audio. It supports up to 8 simultaneous microphones, making it ideal for larger spaces or setups needing greater scalability. The access point provides Dante, USB-C, and analog audio outputs for versatile connectivity, while built-in IntelliMix DSP ensures automatic mixing, echo cancellation, noise reduction, and automatic gain control.

Automatic frequency management avoids interference, and Power over Ethernet (PoE) simplifies installation. Dual network ports allow flexible network configurations (Switched, Split, or Redundant), and AES 256-bit encryption secures both wired and wireless audio transmission.

Scalable to support up to 40 channels (80 in Europe in HD mode), the MXWAPX8 is equipped with diagnostic LEDs for easy monitoring of power, network, and wireless status. It can be discreetly mounted on ceilings or walls using the supplied paintable plate and is plenum-rated for safe above-ceiling installation. Remote control of microphone settings and secondary audio is available through a PC-connected interface on the same network, giving complete flexibility for conference rooms and larger AV setups.

• Supports up to 8 simultaneous microphones
• Dante, USB-C, and analog audio outputs for versatile connectivity
• Automatic frequency management to avoid interference
• Built-in IntelliMix DSP for mixing, echo cancellation, noise reduction, and automatic gain control
• Power over Ethernet (PoE) for simplified installation
• Dual network ports for flexible setup (Switched, Split, or Redundant modes)
• AES 256-bit encryption for secure wired and wireless transmission
• Scalable system supports up to 40 channels (80 in Europe, double in HD mode)
• Diagnostic LEDs show power, network, and wireless status

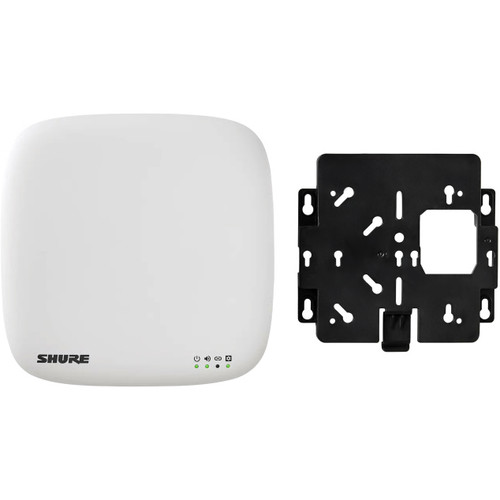

• Mountable on ceilings or walls with an included paintable plate for discreet placement
• Plenum rated for safe above-ceiling installation
• Remote control of mic settings and secondary audio via networked interface
