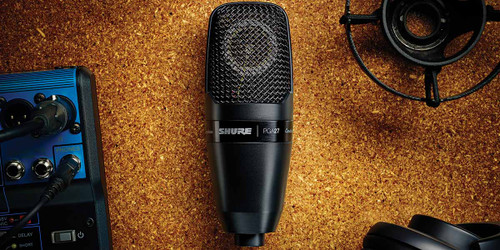

Shure PGA27 Large Diaphragm Side-Address Cardioid Condenser Microphone (Discontinued)

Description

The PGA27 is designed for clear capture of vocal, acoustic and amplified sources in recording applications as well as live sound.

The PGA27 is a professional quality instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Additional features include a high-pass filter for extra control of unwanted low-end signal and a -15dB switchable attenuator for additional SPL versatility.

Features

• Large diaphragm cartridge provides wider dynamic range for clear highs and strong lows
• Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
• Updated industrial design with black metallic finish and grille for unobtrusive visual presence
• High-pass filter for additional control of unwanted low-end signal
• -15dB switchable attenuator for additional SPL versatility
• Shock mount included for additional set-up stability and minimization of unwanted mechanical noise
• Padded zipper case included for additional protection during storage or transport
• Legendary Shure quality design and construction for exceptional performance in rigorous environments

Specifications

Type	Electret Condenser
Frequency Response	20 to 20,000 Hz
Polar Pattern	Cardioid
Output Impedance	115 Ω
Sensitivity	-35 dBV/Pa (17.8 mV) 1 Pa=94 dB SPL at 1 kHz, Open Circuit Voltage
Polarity	Positive Pressure on Diaphragm Produces Positive Voltage on Pin 2 with Respect to Pin 3
Connector	Three-Pin Professional Audio (XLR), Male
Operating Temperature	-20 to 165 °F (-29 to 74 °C)
Operating Humidity	0 to 95%
Weight	1 lbs (0.453 kg)

DOCUMENTS

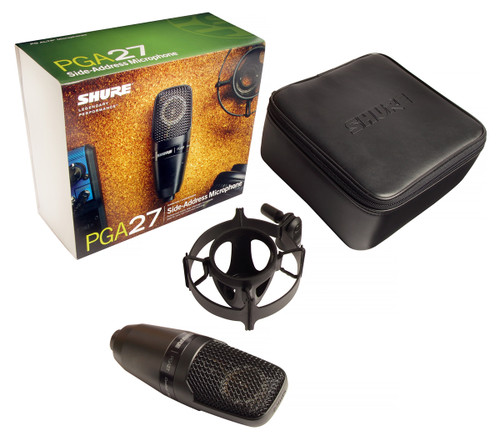

In The Box

• (1) PGA27 Large Diaphragm Side-Address Cardioid Condenser Microphone
• (1) Shock Mount
• (1) Padded Zipper Case
• (1) User Guide
