Shure SM27 Large-diaphragm Condenser Microphone (Discontinued)

Shure SM27 Large-diaphragm Condenser Microphone (Discontinued)

Name: Shure SM27 Large-diaphragm Condenser Microphone (Discontinued)
Brand: Shure
SKU: SHURE-SM27-SC
Price: 349 USD
Availability: OutOfStock

Write a Review

Part #:

SM27-SC

Model #:

SM27

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure SM27 is ideal for both professional vocal and instrument use such as lead and ensemble vocals, acoustic guitar, strings, cymbals, woodwind, and saxophone.

Description

Shure SM27-SC Large-diaphragm Condenser Microphone

What is the SM27 best suited to?

It's ideal for both professional vocal and instrument use such as lead and ensemble vocals, acoustic guitar, strings, cymbals, woodwind and saxophone. The latest addition to the SM family is equally as comfortable on stage or in the studio.

What are the characteristics of the SM27?

The SM27 has a flat, neutral frequency response and very low self noise for a natural reproduction of the sound source. It includes a 3-position switchable low frequency filter which helps reduce unwanted background noise or counteract proximity effect and a -15db switchable attenuator for added versatility.

Features

Ultra-thin, 24 Karat gold-layered, low mass large Mylar® diaphragm with a tight cardioid polar pattern
Flat, neutral frequency response and very low self noise for natural reproduction
Class-A transformerless preamplifier for transparency, extremely fast transient response and no crossover distortion
3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect
-15 dB switchable attenuator for additional SPL versatility
Internal shock mount reduces handling noise
Three separate mesh layers reduces wind and breath noise

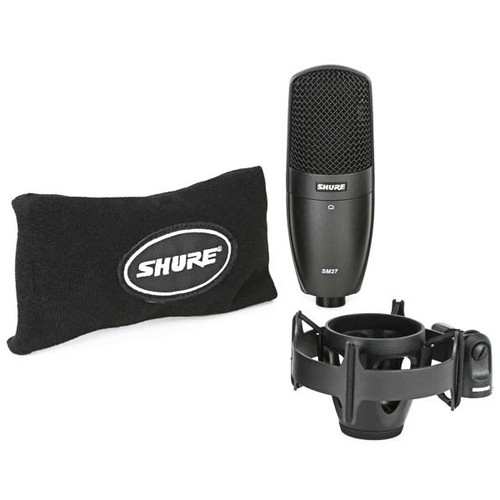

Includes a stand adapter and a zippered pouch

Specifications

Frequency Response	20 to 20,000 Hz
Polar Pattern	Cardioid
Impedance	150 Ω (140 Ω Actual)
Sensitivity(at 1 kHz, Open Circuit Voltage)	−37 dBV/Pa 1 Pascal=94 dB SPL
Maximum SPL(1 kHz at 1% THD)	1000 Ω load: 133 dB (147 dB, Pad on) 2500 Ω load: 138 dB (152 dB, Pad on)
Signal-to-Noise Ratio(Referenced at 94 dB SPL at 1 kHz)	84.5 dB S/N Ratio is Difference Between 94 dB SPL and Equivalent SPL of Self Noise, A-Weighted
Dynamic Range(at 1 kHz)	1000 Ω Load: 123 dB9.5 dB2500 Ω Load: 128 dB
Common Mode Rejection(20 Hz to 20 kHz)	> 50 dB
Clipping Level(20Hz-20 kHz at 1% THD)	1000 Ω Load: 1 dBV9.5 dB2500 Ω Load: 7 dBV9.5 dBTHD of Microphone Preamplifier When Applied Input Signal is Equivalent to Cartridge Output at Specified SPL
Self Noise(Typical, Equivalent SPL, A-Weighted)	9.5 dB
Connector	Three-Pin Professional Audio (XLR), male
Power Requirements	48 Vdc Phantom, 5.4 mA
Switch	Attenuator: -15 dB Low Frequency Response: Flat; -6 dB/ctave Below 115 Hz; -18 dB/octave Below 80 Hz
Polarity	Positive Pressure on Diaphragm Produces Positive Voltage on Pin 2 with Respect to Pin 3
Weight	1.41 lbs (0.64 kg)
