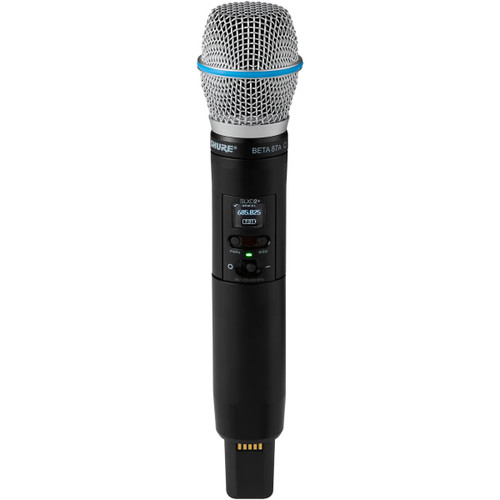

Shure SLXD24+/B87A Digital Wireless Handheld System with Beta 87A Supercardioid Condenser Microphone

Home /
Live Sound Equipment /
Shure SLXD24+/B87A Digital Wireless Handheld System with Beta 87A Supercardioid Condenser Microphone

Description

Details

Shure SLXD24+/B87A Digital Wireless Handheld System

The SLXD24+/B87A digital wireless handheld system pairs advanced SLX-D+ wireless technology with the renowned Beta 87A supercardioid condenser microphone to deliver pristine 24-bit digital audio and dependable RF performance. Designed for houses of worship, corporate environments, theaters, and live performance venues, it provides focused vocal clarity with excellent off-axis rejection and over 118 dB of dynamic range.

With a 138 MHz wide tuning range, the system supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 systems in 8 MHz bands. Automatic frequency scanning and interference management ensure seamless operation, while ShowLink Ease technology allows remote adjustment of transmitter frequency, power levels, lock status, and firmware updates directly from the receiver.

For added security and reliability, every SLX-D+ system includes AES-256 encryption and Shure’s patented Digital Feedback Reducer software. Engineers can monitor and configure systems via Wireless Workbench desktop software or the WWB Mobile app over Wi-Fi or Bluetooth. Flexible power options provide up to 8 hours of operation using AA batteries or optional SB903 rechargeable batteries.

Features

Features

24-bit digital audio with >118 dB dynamic range
Beta 87A supercardioid condenser microphone capsule
138 MHz wide tuning range for flexible frequency coordination
Up to 11 systems (6 MHz) or 14 systems (8 MHz) simultaneously
ShowLink Ease remote transmitter control
AES-256 encryption for secure wireless transmission
Built-in Shure Digital Feedback Reducer technology
Wireless Workbench desktop and WWB Mobile app compatibility
Automatic frequency scanning and interference management
Up to 8 hours battery life (AA or SB903 rechargeable)

Specification

SLXD4+
Power Requirements	15 VDC @ 360 mA
Connector Type	BNC
Impedance	50Ω
Spurious Rejection	>75 dB
Gain Adjustment Range	-18 to +42 dB in 1 dB steps
Mic/Line Switch	30 dB pad
Network Interface	Single Port Ethernet 10/100 Mbps
Network Addressing Capability	DHCP or Manual IP address
Maximum Cable Length	100 m (328 ft)
Dimensions (H x W x D)	1.65" (42 mm) x 7.76" (197 mm) x 5.98" (152 mm)
Weight	2 lbs (0.91 kg)
SLXD2+/B87A
Microphone Type	Condenser - Shure Beta 87A
Polar Pattern	Supercardioid
Frequency Response	50 Hz - 20 kHz
Audio Output Impedance	150Ω
Sensitivity	-52 dBV/Pa (2.5 mV) @ 1 kHz
Digital Audio Format	Shure Proprietary 24-bit Digital
RF Output Power	1 mW or 10 mW
Occupied Bandwidth	<200 kHz
Battery Type & Life	Rechargeable Li-Ion (SB903) or 2x AA (Up to 8 Hours)
Construction	Aluminum Housing
Dimensions (Dia x L)	1.46" (37.1 mm) x 6.93" (176 mm)
Weight	0.32 lbs (0.15 kg)

Documents

Documents

Spec Sheet

User Guide

In The Box

In The Box

(1) SLXD4+ Digital Wireless Receiver
(1) SLXD2+/B87A Handheld Transmitter with Beta 87A Supercardioid Condenser Microphone
(1) Microphone Clip
(2) 1/4 Wave Antennas
(1) Rackmount Kit
(2) AA Batteries
(1) Power Supply
(1) Carrying Pouch
