Shure SLXD24D+/N8C Dual Handheld Wireless System
The SLXD24D+/N8C dual wireless system pairs two handheld transmitters featuring Nexadyne 8/C cardioid dynamic microphone capsules with the half-rack SLXD4D+ dual-channel receiver. Designed for live performance, houses of worship, corporate presentations, and installed sound environments, this system delivers transparent 24-bit digital audio with over 118 dB of dynamic range and dependable RF performance.
With a wide 138 MHz tuning range, the SLX-D+ platform supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 systems in 8 MHz bands, offering flexible coordination in demanding RF conditions. Automatic Setup keeps transmitters and receivers connected even during interference, while ShowLink Ease technology enables remote frequency changes, RF power adjustments, lock control, and firmware updates directly from the receiver.
For secure and reliable operation, AES-256 encryption is standard on every SLX-D+ component. The built-in Shure Digital Feedback Reducer helps minimize unwanted feedback. At the same time, Wireless Workbench desktop software and the WWB Mobile app allow real-time monitoring and configuration via network or Bluetooth. With rugged metal construction and up to 8 hours of battery life using AA batteries or optional SB903 rechargeable batteries, the SLXD24D+/N8C is engineered for consistent, professional wireless performance.
- Features
Features

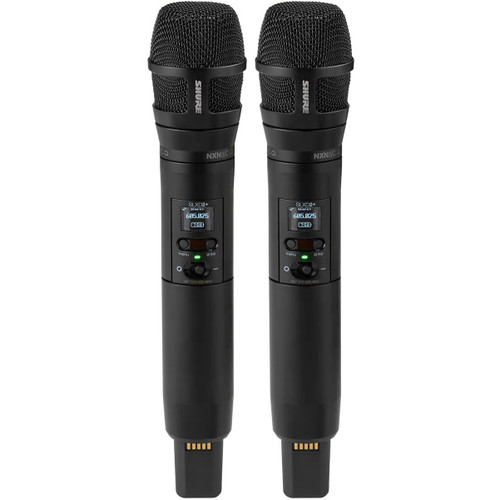

- Dual handheld transmitters with Nexadyne 8/C cardioid dynamic capsules

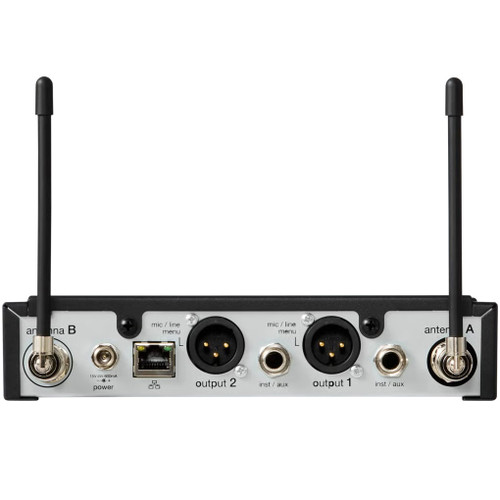

- SLXD4D+ dual-channel half-rack receiver
- Transparent 24-bit digital audio with >118 dB dynamic range
- 138 MHz wide tuning bandwidth
- Up to 11 systems (6 MHz)/14 systems (8 MHz) simultaneously
- ShowLink Ease remote transmitter control
- AES-256 encrypted wireless transmission
- Embedded Shure Digital Feedback Reducer
- Wireless Workbench and WWB Mobile app compatibility
- Up to 8 hours battery life (AA or SB903 rechargeable)
- Specification
SLXD4D+ Power Requirements 15 VDC @ 600 mA Connector Type BNC (Antenna), XLR & 1/4" (Audio Outputs) Impedance 50Ω (Antenna Input) Spurious Rejection >75 dB Gain Adjustment Range -18 to +42 dB in 1 dB steps Mic/Line Switch 30 dB pad Audio Outputs 2x XLR (Mic/Line), 2x 1/4" (Line) Network Interface Single Port Ethernet 10/100 Mbps Network Addressing Capability DHCP or Manual IP address Maximum Cable Length 100 m (328 ft) Dimensions (H x W x D) 1.65" (42 mm) x 7.76" (197 mm) x 6.06" (154 mm) Weight 2.1 lbs (0.95 kg) SLXD2+/N8C Microphone Type Dynamic (Moving Coil) - Nexadyne 8/C Polar Pattern Cardioid Frequency Response 50 Hz - 20 kHz Audio Output Impedance 300Ω Sensitivity -51 dBV/Pa (2.8 mV) @ 1 kHz Digital Audio Format Shure Proprietary 24-bit Digital RF Output Power 1 mW or 10 mW Occupied Bandwidth <200 kHz Battery Type & Life Rechargeable Li-Ion (SB903) or 2x AA (Up to 8 Hours) Construction Rugged Metal Housing Dimensions (Dia x L) 1.46" (37.1 mm) x 6.93" (176 mm) Weight 0.32 lbs (0.15 kg) - Documents
Documents
- In The Box
In The Box
- (1) SLXD4D+ Digital Wireless Receiver
- (2) SLXD2+/N8C Handheld Transmitter with Nexadyne 8/C Cardioid Dynamic Microphones
- (2) Microphone Clips
- (2) 1/4 Wave Antennas
- (1) Rackmount Kit
- (4) AA Batteries
- (1) Power Supply
- (2) Carrying Pouches
