The legendary SM57 cardioid dynamic instrument microphone is now available with the X2u USB Signal Adapter, which features built-in headphone jack with zero-latency monitoring for real-time playback and multi-tracking without disorientation. A Monitor Mix Control makes it easy to balance microphone and playback audio. Digitally record wherever and whenever your computer takes you - just plug and play for better-than-CD quality instrument reproduction.
The new bundles of the SM57 and SM58 with the new X2U Signal Adapter make either of these legendary workhorse mics a versatile solution for podcasting and other digital recording projects,” added Hartman. “Whether an artist wants to record in a bedroom or basement, or even on a tour bus, the X2U lets them connect a Shure microphone to a computer wherever they are.- Features
Features

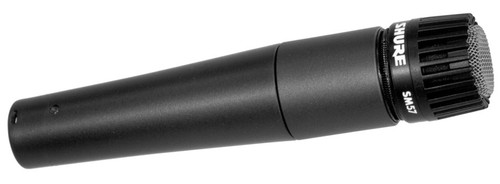

- SM57 Features:
- Dynamic microphone cartridge with tailored frequency response delivers clear reproduction of amplified and acoustic instruments.
- Uniform cardioid polar pattern isolates the sound source while minimizing background noise.
- Internal pneumatic shock mount minimizes handling noise.
- Legendary construction and versatility for consistent performance under rugged use and abuse on stage or in the studio.

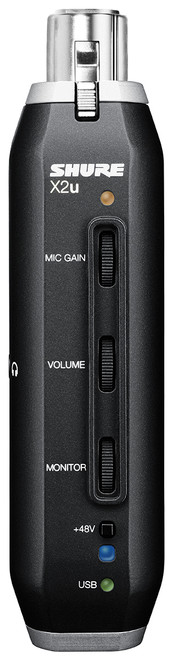

- X2u Features:
- Plug and Play USB Connectivity allows the convenience of digital recording anywhere your computer can go (compatible with Windows Vista, XP, 2000, and Mac OS X 10.1 or later).
- Integrated pre-amp with Microphone Gain Control allows control of input signal strength.
- Zero Latency Monitoring for real-time playback and multi-tracking without disorientation.
- Headphone jack for monitoring with 1/8" connectivity.
- Monitor Mix Control for blending microphone and playback audio.
- 16 bit, up to 48 kHz sample rate for better-than-CD quality audio.
- Specification
X2u Microphone Adapter Frequency Response 20 to 20,000 Hz +/- 1 dB Power Requirements USB-powered, 500 mA, maximum Digital Noise Floor Minimum MIC GAIN setting: −81 dB FS Maximum MIC GAIN setting: −78 dB FS Sampling Rate Up to 48 kHz Bit Depth 16 bit Peak Signal Indicator (Tri-color) OFF −30 dB FS Green −30 to −12 dB FS Yellow −12 to 0 dB FS Red >0 (digital converter clipped) Adjustable Gain Range 40 dB Headphone Output 3.5 mm (1/8 inch) SM57 Frequency Response 40 to 15,000 Hz Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency Sensitivity (at 1,000 Hz) Open Circuit Voltage Open Circuit Voltage: -56.0 dBV/Pa* (1.6 mV) *(1 Pa = 94 dB SPL) Impedance Impedance is 150Ω (310Ω actual) for connection to microphone inputs rated low impedance Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Connector Three-pin professional audio connector (male XLR type) Case Dark gray, enamel-painted, die-cast steel with a polycarbonate grille and a stainless steel screen Swivel Adapter Positive-action, break-resistant, adjustable through 180°, with standard 5/8 in.-27 thread Furnished Accessories Specifications Swivel Adapter A25D Storage Bag 26A13 Dimension (W x D x H) 157 mm (6 3/16 in.) x 32 mm (1 1/4 in.) x 23 mm (29/32in.) Net Weight (without cable) 0.62 lbs (284 grams) - Reviews
