Shure SM58-X2U Dynamic Cardioid Microphone With USB Adapter (Discontinued)

Shure SM58-X2U Dynamic Cardioid Microphone With USB Adapter (Discontinued)

Name: Shure SM58-X2U Dynamic Cardioid Microphone With USB Adapter (Discontinued)
Brand: Shure
SKU: SHURE-SM58-X2U
Price: 199 USD
Availability: OutOfStock

Write a Review

Part #:

SM58-X2U

Model #:

SM58-X2U

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Use the Shure SM58-X2U Dynamic Cardioid Microphone with the X2u XLR-to-USB Adapter for digital recording with headphone monitoring.

Description

The legendary SM58 cardioid dynamic instrument microphone is now available with the X2u USB Signal Adapter, which features built-in headphone jack with zero-latency monitoring for real-time playback and multi-tracking without disorientation. A Monitor Mix Control makes it easy to balance microphone and playback audio.

Digitally record wherever and whenever your computer takes you - just plug and play for better-than-CD quality instrument reproduction.

Features

SM58:
Dynamic microphone cartridge with a frequency response tailored with brightened mid-range and bass rolloff
Uniform cardioid polar pattern isolates vocal sound sources while minimizing background noise
Internal pneumatic shock mount minimizes handling noise
Legendary construction and versatility for consistent performance under rugged use and abuse on stage or in the studio

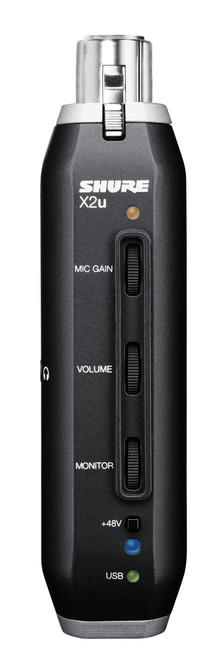

X2u:
Plug and Play USB Connectivity allows the convenience of digital recording anywhere your computer can go
Integrated pre-amp with Microphone Gain Control allows control of input signal strength
Zero Latency Monitoring for real-time playback and multi-tracking without disorientation
Headphone jack for monitoring with 1/8" connectivity
Monitor Mix Control for blending microphone and playback audio
16 bit, up to 48 kHz sample rate for better-than-CD quality audio

Specifications

Frequency Response	50 to 15,000 Hz
Polar Pattern	Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1,000 Hz) Open Circuit Voltage	–54.5 dBV/Pa (1.85 mV)
Impedance	Impedance is 150 ohms (300 ohms actual) for connection to microphone inputs rated low impedance
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio connector (male XLR type)
Case	Dark gray, enamel-painted, die cast metal; matte-finished, silver colored, steel mesh grille
Frequency Response	20 to 20,000 Hz +/- 1 dB
Power Requirements	USB-powered, 500 mA, maximum
Digital Noise Floor (20 Hz to 20 kHz, A-weighted)	Minimum MIC GAIN setting: −81 dB FS Maximum MIC GAIN setting: −78 dB FS
Sampling Rate	Up to 48 kHz
Bit Depth	16 bit
Adjustable Gain Range	40 dB
Headphone Output	.13" (3.5 mm)
OFF	−30 dB FS
Green	−30 to −12 dB FS
Yellow	−12 to 0 dB FS
Red	>0 (digital converter clipped)
Swivel Stand Adapter	A25D
Storage Bag	26A13
Dimensions (H x Diameter)	6.38" (162 mm) x 2" (51 mm)
Weight	0.65 lbs (298 g)
