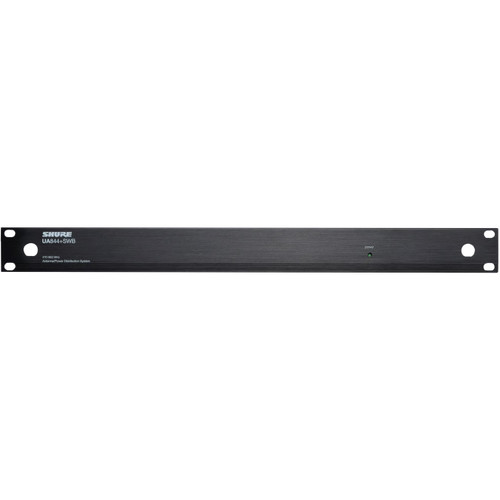

The UA844+SWB/LC antenna distribution system lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time. It allows wireless microphone systems to expand by splitting one pair of antennas to multiple receivers while amplifying RF signals to compensate for insertion loss from splitting the signal. A single system can support up to five wireless receivers.

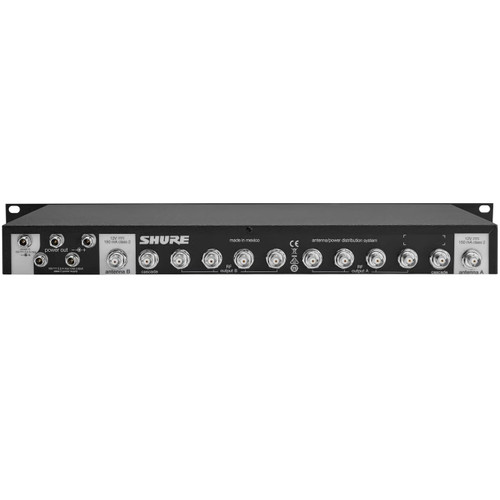

The Shure UA844+SWB/LC features front-mounting antenna hardware, rack-mounting hardware, an external power supply, and antenna cables for receiver connections. The wideband UHF version operates from 470 - 960 MHz and provides four DC power feeds for compatible receivers.
| Power Requirements | 14 to 18V DC |
|---|---|
| DC Output | 14 to 18V DC (x4) |
| Output Current | 2.5 A, maximum (Combined total from all DC outputs) |
| Operating Temperature Range | -18°C (0°F) to 63°C (145°F) |
| RF Input: | |
| Connector Type | BNC |
| RF Frequency Range | 470 - 960 MHz |
| Bias Voltage | 15V DC (150 mA, maximum) (x2) |
| Impedance | 50Ω |
| RF Output: | |
| RF Frequency Range | 470 - 960 MHz |
| Output Intercept Point | 21 dBm, typical |
| Connector Type | BNC |
| Impedance | 50Ω |
| Output Connector Isolation | 30 dB, typical |
| Gain | 1 to +1 dB - Input to any output port (Unused ports terminated in 50Ω) |
| Dimensions (H x W x D) | 1.77" (45 mm) x 19.02" (483 mm) x 6.77" (172 mm) |
| Weight | 3.6 lbs (1.62 kg) |
