Inside the Design
Designed specifically for educational settings, this small classroom sound system offers top-tier audio quality. Featuring a pair of S6 6.5" 70V surface mount speakers, it delivers precise point-source, high-fidelity sound to enrich the learning experience. With the MA120BT 120W mixer amplifier at its core, you can effortlessly stream audio wirelessly via Bluetooth or seamlessly integrate with your current audio and video equipment. The mixer amplifier provides versatile connectivity options, making it the perfect sound system for classrooms. Add a microphone to provide crystal clear speech intelligibility while saving your voice. Play a video or a prepared presentation with this meeting sound system by connecting the audio output from your projector, laptop or Bluetooth device. Connect additional audio sources like an MP3 player or play audio from your USB thumb drive or TF card.
Sound System Features:
- With 60W of continuous power handling, the S6 6.5" polypropylene cone woofer and 1" silk membrane tweeter produces a full-range frequency response of 80 - 18kHz and an average SPL of 92 dB high-output sound
- 70-volt and 100-volt transformer taps with an 8-ohm bypass and Phoenix Euroblock 4-pin screw terminal connector provide the ultimate convenience
- A heavy-duty wall mounting bracket is included for a quick, safe, and secure installation and can be mounted vertically or horizontally
- The MA120BT mixer amplifier includes built-in Bluetooth allowing you to quickly link up and play and control your music wirelessly from any Bluetooth-enabled device
- The MA120BT is equipped with inputs for wired or wireless microphones, CD/DVD players, laptops, computers, SD cards, and USB thumb drives
- The included remote control manages volume levels, play/pause, skip and more all from a distance
About the System Components

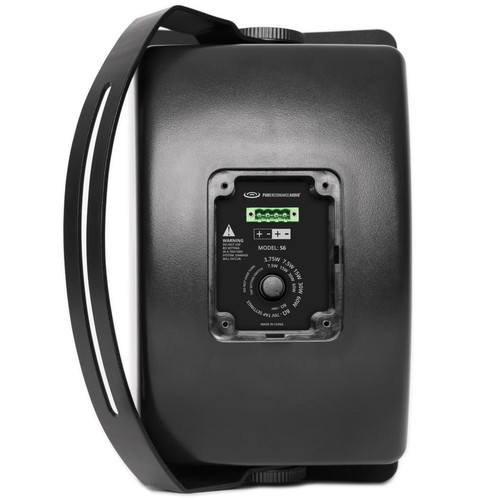

S6 6.5" 70V OUTDOOR SURFACE MOUNT SPEAKER
The Pure Resonance Audio S6 2-way 70V surface mount speaker is designed to provide quality audio performance for indoor and outdoor commercial installations. This all-weather speaker includes a 6.5" polypropylene woofer and 1" silk membrane tweeter that delivers premium full-range frequency response with a built-in 70V/100V transformer and an 8-ohm bypass. A matching 180-degree mounting bracket allows for quick and easy installation on the wall, under awnings, and overhangs. The S6 is perfect for background and foreground level music, paging, and general-purpose audio where high-quality indoor/outdoor sound is needed.

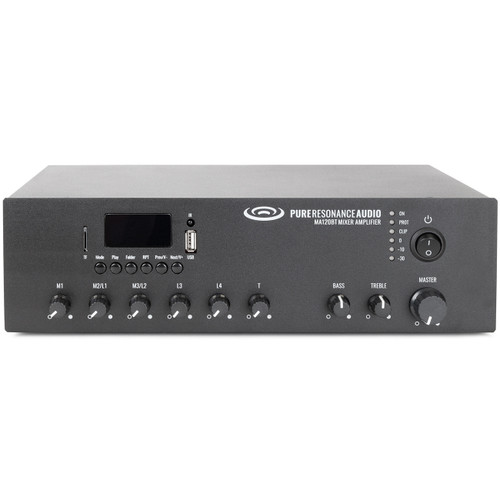

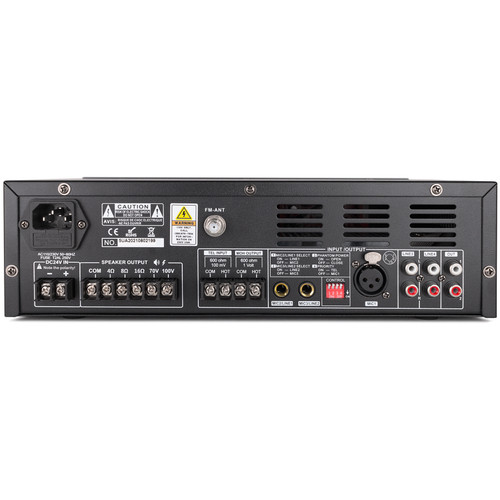

MA120BT 7-CHANNEL 120W BLUETOOTH MIXER AMPLIFIER
The Pure Resonance Audio MA120BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for wirelessly streaming background music in educational applications. This mixer-amp is an easy choice for your school sound system because of its combination of balanced and unbalanced inputs, 70V, 100V, 8 ohm, or 4 ohm outputs, and compact size and interface.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
