Inside the Design
This football stadium sound system design for permanent installation accommodates large middle school or small high school football stadiums with home side bleachers only. When mounted to the press box this system covers from 30 to 30-yard line, providing strong and clear audio. It includes two Atlas Sound FS12T-94 2-way stadium horns for intelligible audio, a Yamaha EMX7 portable 12-channel powered mixer for compact but powerful processing and mixing, one Audio-Technica ATW-3212/C510 wireless handheld microphone perfect for field announcements, and one Atlas Sound DS7E adjustable height desktop mic stand package for the press box.
Sound System Features:
- Superb intelligible speech for play-by-play and announcements
- Incredible background/foreground music reproduction
- Weather-resistant, compact, horn-loaded loudspeakers
- Portable 12-channel 2 x 710W powered mixer amplifier with feedback suppressor
- Handheld wireless microphone system with an operating range of 300'

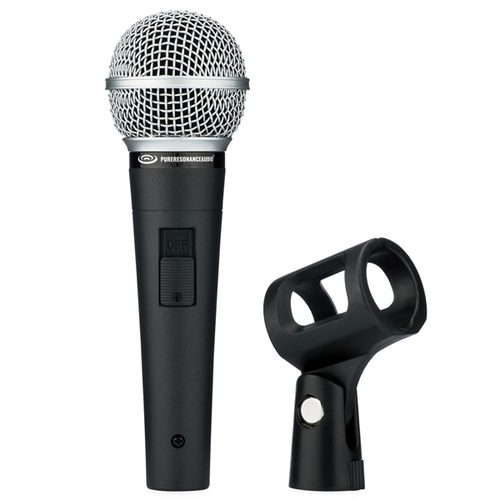

- Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
About the System Components

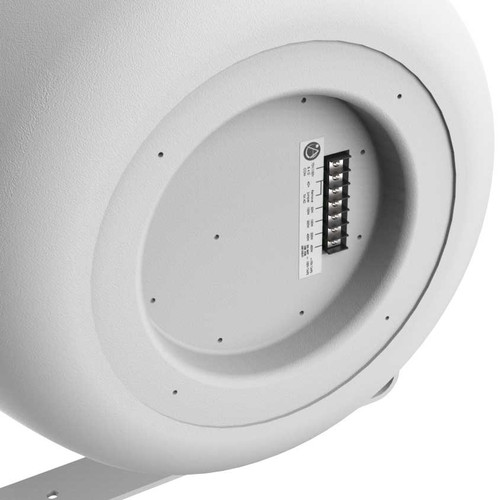

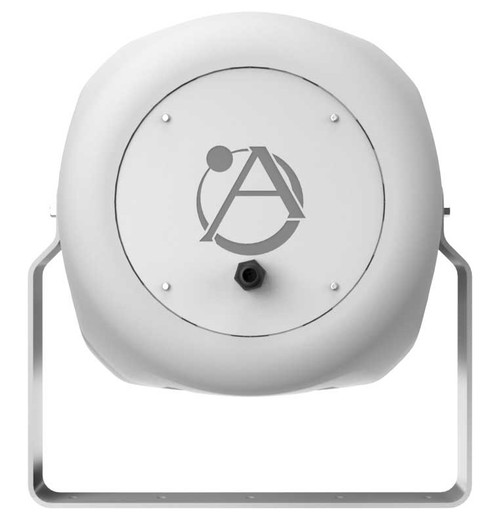

Atlas Sound FS12T-94 12" Horn Loudspeaker
The Atlas Sound FS12T-94 is a two-way, full-range multipurpose horn loudspeaker system with 90° x 40° coverage and a lightweight enclosure. It is designed to provide excellent voice and music reproduction while withstanding exposure to environmental conditions and providing long-lasting reliability.
Yamaha EMX7 Portable 12-Channel Powered Mixer
The Yamaha EMX7 was designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.
Audio-Technica ATW-3212/C510 Wireless Microphone
The Audio-Technica ATW-3212/C510 handheld wireless system comes with the ATW-R3210 receiver, ATW-T3202 handheld transmitter, and the ATW-C510 cardioid dynamic microphone capsule. The Audio-Technica 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. The 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range.
